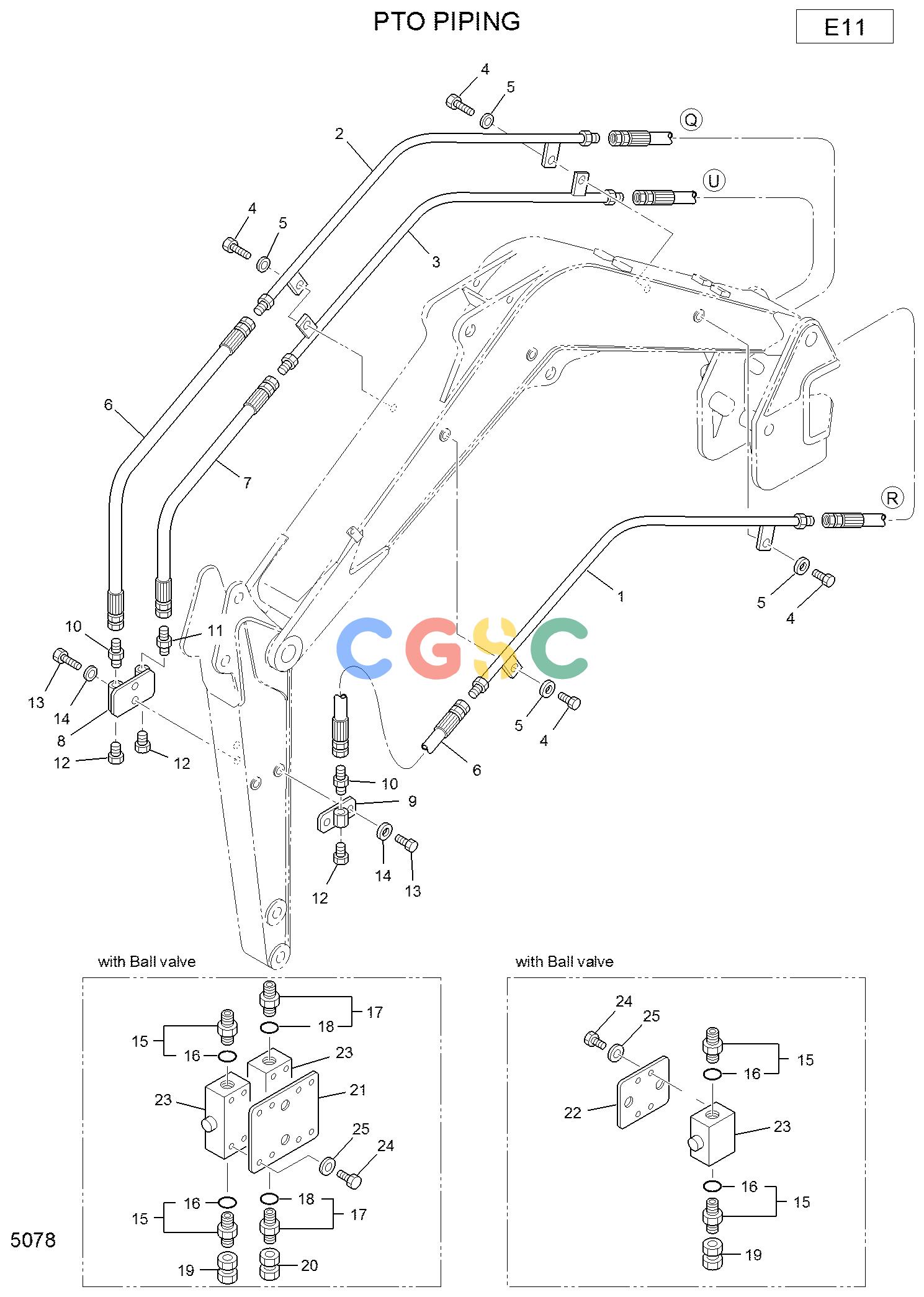

现代零件查询R22-7 PTO PIPINGEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
467 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03438
|
[1] |
PIPE
|
|
| 2. |
XJDH-03439
|
[1] |
PIPE
|
|
| 3. |
XJDH-03440
|
[1] |
PIPE
|
|
| 4. |
XJDH-00035
|
[6] |
BOLT
|
|
| 5. |
XJDH-00276
|
[6] |
WASHER
|
|
| 6. |
XJDH-03441
|
[2] |
HOSE
|
|
| 7. |
XJDH-03442
|
[1] |
HOSE
|
|
| 8. |
XJDH-01492
|
[1] |
MANIFOLD(A)
|
|
| 9. |
XJDH-01493
|
[1] |
MANIFOLD(B)
|
|
| 10. |
XJDH-00421
|
[2] |
NIPPLE-HOSE
|
|
| 11. |
XJDH-00422
|
[1] |
CONNECTOR
|
|
| 12. |
XJDH-00385
|
[3] |
PLUG
|
|
| 13. |
XJDH-00035
|
[4] |
BOLT
|
|
| 14. |
XJDH-00276
|
[4] |
WASHER
|
|
| 15. |
XJDH-00455
|
[4] |
NIPPLE-HOSE
|
|
| 16. |
XJDH-00334
|
[1] |
O-RING
|
|
| 17. |
XJDH-00457
|
[2] |
CONNECTOR-MALE
|
|
| 18. |
XJDH-00334
|
[1] |
O-RING
|
|
| 19. |
XJDH-03443
|
[2] |
PLUG
|
|
| 20. |
XJDH-03444
|
[1] |
PLUG
|
|
| 21. |
XJDH-03846
|
[1] |
PLATE
|
|
| 22. |
XJDH-03847
|
[1] |
PLATE
|
|
| 23. |
XJDH-03848
|
[3] |
VALVE-BALL
|
|
| 24. |
XJDH-00021
|
[6] |
BOLT
|
|
| 25. |
XJDH-00274
|
[6] |
WASHER
|
|
