斗山零件查询LOWER ROLLER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
817 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2604-1378A
|
[-] |
TRACK ASS'Y
|
|
| -. |
2604-1378B
|
[-] |
TRACK ASS'Y
|
|
| 36. |
S0570861
|
[72] |
BOLT M20X2.5X100
|
|
| 36. |
S0570661
|
[72] |
BOLT M20X2.5X90
|
S0570666
|
| 36. |
S0570666
|
[72] |
BOLT M20X2.5X90
|
|

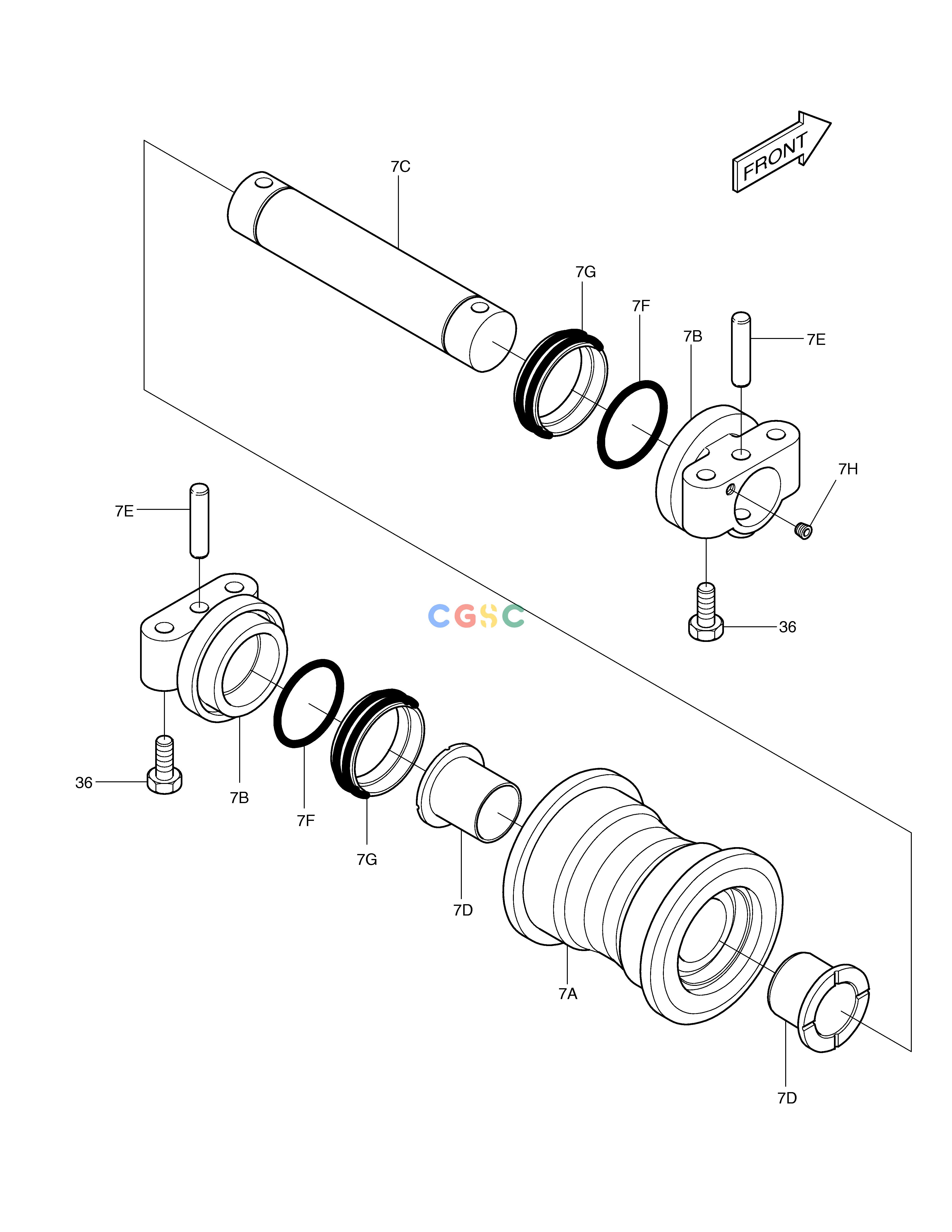

| 7. |
2270-9025
|
[18] |
LOWER ROLLER ASS'Y
|
|
| 7A. |
2270-6115
|
[1] |
ROLLER
|
|
| 7B. |
2270-6021
|
[2] |
COLLAR
|
|
| 7C. |
2112-6005A
|
[1] |
AXLE
|
|
| 7D. |
2110-6083
|
[2] |
BUSHING
|
|
| 7E. |
2123-6118
|
[2] |
PIN
|
|
| 7F. |
S8010700
|
[2] |
O-RING
|
|
| 7G. |
2180-6096
|
[2] |
SEAL;FLOATING
|
|
| 7H. |
2181-1116D2
|
[1] |
PLUG
|
|
