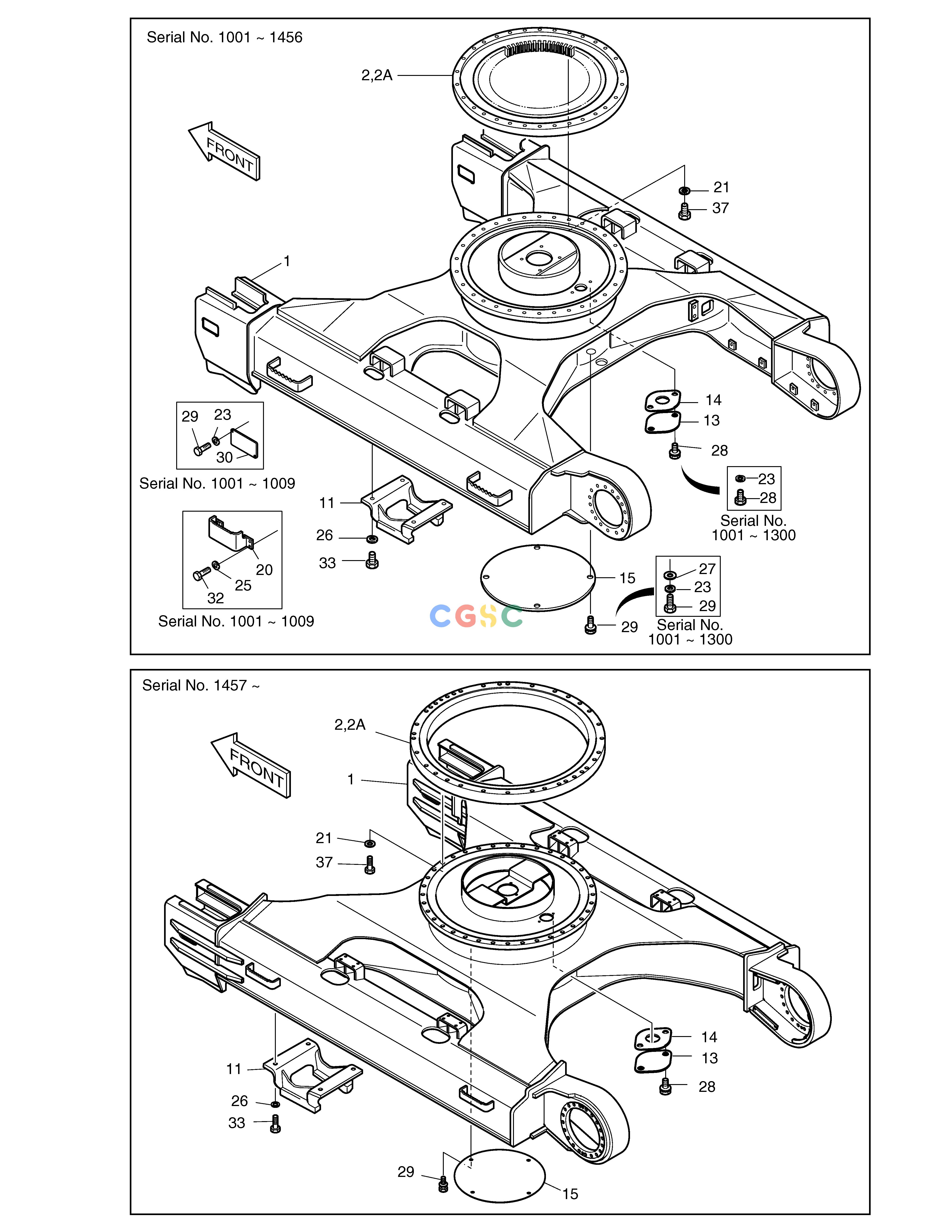

斗山零件查询TRACK FRAME SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2604-1378A
|
[-] |
TRACK ASS'Y
|
|
| -. |
2604-1378B
|
[-] |
TRACK ASS'Y
|
|
| 1. |
2604-1373A
|
[1] |
FRAME;TRACK
|
|
| 1. |
2604-1373B
|
[1] |
FRAME;TRACK
|
2604-1373E
|
| 1. |
2604-1373E
|
[1] |
FRAME;TRACK
|
2604-1373G
|
| 1. |
2604-1373G
|
[1] |
FRAME;TRACK
|
604-00130A
|
| 1. |
604-00130A
|
[1] |
FRAME;TRACK
|
|
| 11. |
2623-1129B
|
[4] |
GUARD;LINK
|
|
| 13. |
2403-1002
|
[1] |
COVER
|
|
| 14. |
2180-1017A
|
[1] |
PACKING
|
|
| 15. |
2621-1704
|
[1] |
COVER
|
|
| 15. |
621-01989
|
[1] |
COVER
|
|
| 2. |
2109-1059
|
[1] |
BEARING;SWING
|
2109-1059A
|
| 2. |
2109-1059A
|
[1] |
BEARING;SWING
|
|
| 20. |
2625-1194D1
|
[4] |
STEP
|
|
| 21. |
2114-1831A
|
[40] |
. WASHER
|
|
| 21. |
2114-1831
|
[40] |
WASHER;HARDEN
|
2114-1831A
|
| 23. |
S5102603
|
[10] |
. WASHER
|
|
| 23. |
S5102603
|
[6] |
. WASHER
|
|
| 25. |
S5102901
|
[16] |
. WASHER;SPRING
|
|
| 25. |
S5102901
|
[10] |
. WASHER;SPRING
|
|
| 25. |
S5102903
|
[10] |
WASHER
|
|
| 26. |
S5103101
|
[16] |
WASHER;SPRING M20
|
|
| 26. |
S5103103
|
[16] |
WASHER
|
|
| 27. |
2114-1058D10
|
[4] |
WASHER
|
|
| 28. |
S0511853
|
[2] |
BOLT
|
|
| 28. |
2120-2196D1
|
[2] |
BOLT;SET M10X1.5X20
|
2120-2196D2
|
| 28. |
2120-2196D2
|
[2] |
BOLT;SET M10X1.5X25
|
|
| 29. |
S0512253
|
[8] |
BOLT M10X1.5X30
|
|
| 29. |
S0512253
|
[4] |
BOLT M10X1.5X30
|
|
| 29. |
2120-2196D2
|
[4] |
BOLT;SET M10X1.5X25
|
|
| 29. |
2120-2196D10
|
[4] |
BOLT;SET M12X1.75X25
|
|
| 2A. |
180-00297D2
|
[1] |
SEAL
|
|
| 30. |
2621-2915
|
[2] |
COVER
|
|
| 32. |
S0565051
|
[16] |
BOLT M16X2.0X40
|
|
| 33. |
S0527661
|
[16] |
BOLT M20X2.5X50
|
S0527666
|
| 33. |
S0527666
|
[16] |
BOLT M20X2.5X50
|
|
| 37. |
S0574961
|
[40] |
BOLT M24X3.0X80
|
S0574966
|
| 37. |
S0574966
|
[40] |
BOLT M24X3.0X80
|
|
