斗山零件查询TRACK SPRING SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
706 次

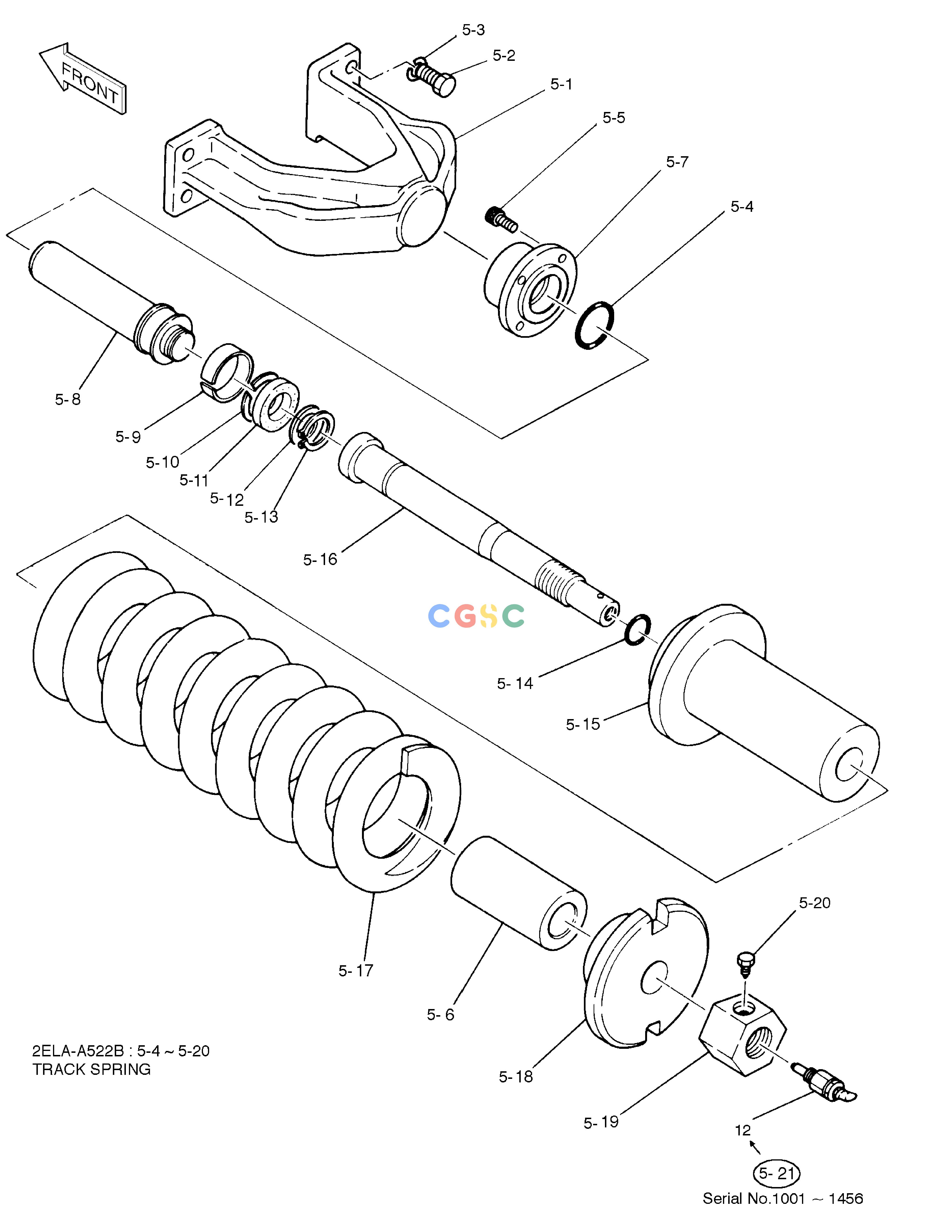

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2274-1014AKT
|
[1] |
SEAL KIT;TRACK SPRING
|
|
| -. |
2604-1378A
|
[-] |
TRACK ASS'Y
|
|
| -. |
2604-1378B
|
[-] |
TRACK ASS'Y
|
|
| 12. |
2420-1242A
|
[2] |
VALVE;GREASE
|
|
| 5. |
2274-1014C
|
[2] |
TRACK SPRING ASS'Y
|
2274-1014E
|
| 5. |
2274-1014E
|
[2] |
TRACK SPRING ASS'Y
|
2274-1014G
|
| 5. |
2274-1014G
|
[2] |
SPRING;TRACK
|
|
| 5-1. |
2157-1013A
|
[2] |
YOKE
|
|
| 5-10. |
2180-9118
|
[1] |
RING;BACK-UP
|
|
| 5-11. |
2180-9115
|
[1] |
PACKING;U-RING
|
|
| 5-12. |
2116-1379A
|
[1] |
PLATE
|
|
| 5-13. |
S6500500
|
[1] |
RING;STOP
|
|
| 5-14. |
S8000531
|
[1] |
O-RING
|
|
| 5-15. |
2440-1074B
|
[1] |
CYLINDER
|
|
| 5-16. |
2444-1020A
|
[1] |
ROD
|
|
| 5-16. |
2444-1020B
|
[1] |
ROD
|
|
| 5-17. |
2129-1261
|
[1] |
SPRING
|
|
| 5-18. |
2181-1898A
|
[1] |
FLANGE
|
|
| 5-19. |
2121-1249B
|
[1] |
NUT
|
|
| 5-2. |
S0765251
|
[4] |
BOLT M16X1.5X50
|
|
| 5-20. |
2120-1105
|
[1] |
. BOLT
|
|
| 5-21. |
2420-1242
|
[1] |
VALVE ASS'Y
|
2420-1242A
|
| 5-21. |
2420-1242A
|
[1] |
VALVE;GREASE
|
|
| 5-3. |
S5102901
|
[4] |
. WASHER;SPRING
|
S5102903
|
| 5-3. |
S5102903
|
[4] |
WASHER
|
|
| 5-4. |
S8010650
|
[1] |
O-RING
|
|
| 5-5. |
S2212261
|
[4] |
SOCKET-HEAD BOLT
|
S2212266
|
| 5-5. |
S2212266
|
[4] |
BOLT
|
|
| 5-6. |
2114-1477A
|
[1] |
SPACER
|
|
| 5-7. |
2181-1897
|
[1] |
FLANGE
|
|
| 5-8. |
2444-1021
|
[1] |
ROD;PISTON
|
|
| 5-9. |
2180-9111
|
[1] |
RING;PISTON
|
|
