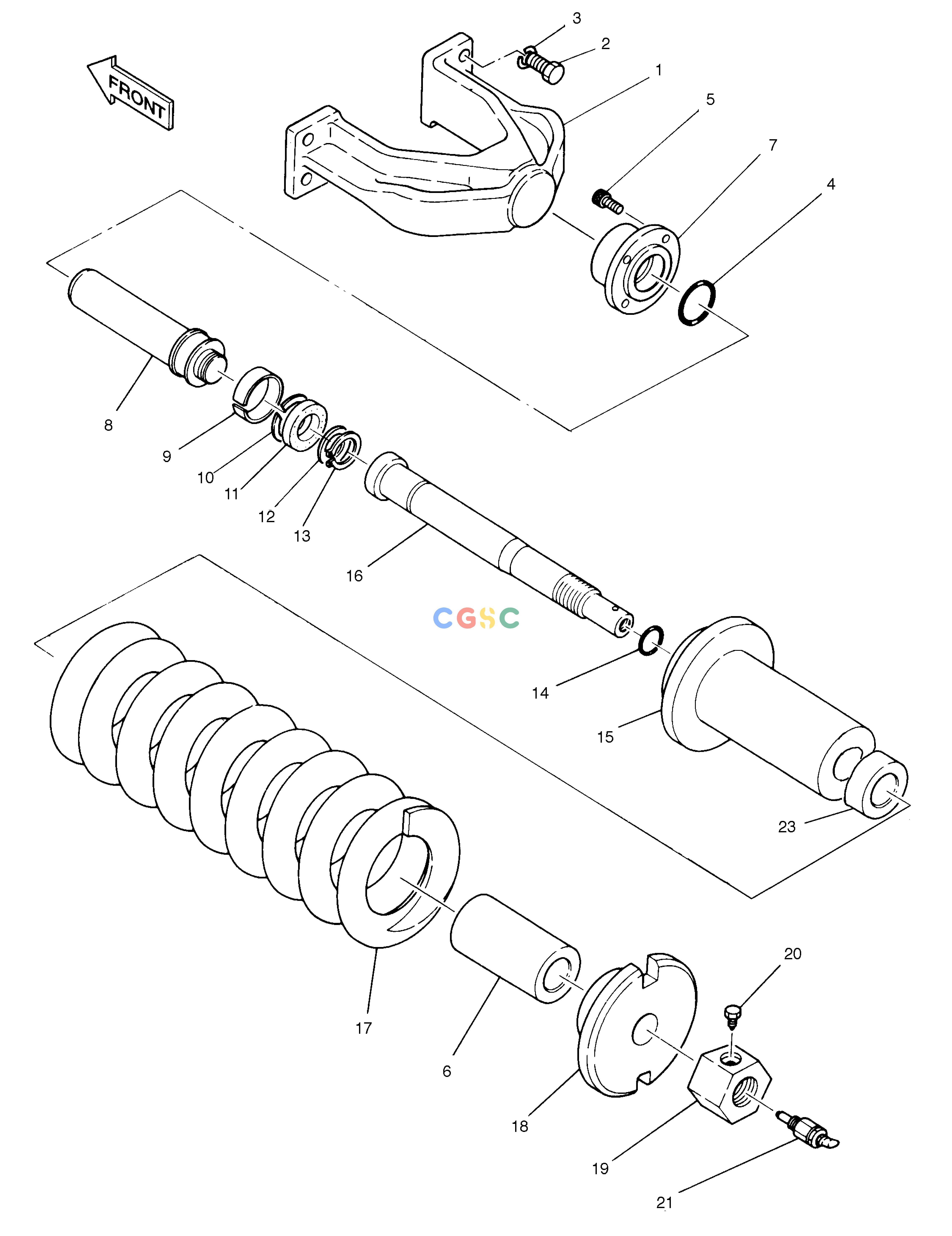

斗山零件查询TRACK SPRING-FOR TRACK WIDTH 3m SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2274-1014AKT
|
[1] |
SEAL KIT;TRACK SPRING
|
|
| -. |
2274-1035A
|
[2] |
SPRING;TRACK
|
2274-1035B
|
| -. |
2274-1035B
|
[2] |
TRACK SPRING ASS'Y
|
|
| 1. |
2157-1013A
|
[1] |
YOKE
|
|
| 10. |
2180-9118
|
[1] |
RING;BACK-UP
|
|
| 11. |
2180-9115
|
[1] |
PACKING;U-RING
|
|
| 12. |
2116-1379A
|
[1] |
PLATE
|
|
| 13. |
S6500500
|
[1] |
RING;STOP
|
|
| 14. |
S8000531
|
[1] |
O-RING
|
|
| 15. |
2440-1074B
|
[1] |
CYLINDER
|
|
| 16. |
2444-1028
|
[1] |
ROD
|
|
| 17. |
2129-6007
|
[1] |
SPRING
|
|
| 18. |
2181-1898A
|
[1] |
FLANGE
|
|
| 19. |
2121-1249B
|
[1] |
NUT
|
|
| 2. |
S0765251
|
[4] |
BOLT M16X1.5X50
|
|
| 20. |
2120-1105
|
[1] |
. BOLT
|
|
| 21. |
2420-1242
|
[1] |
VALVE ASS'Y
|
2420-1242A
|
| 21. |
2420-1242A
|
[1] |
VALVE;GREASE
|
|
| 23. |
2114-2005
|
[1] |
SPACER
|
|
| 3. |
S5102901
|
[4] |
. WASHER;SPRING
|
S5102903
|
| 3. |
S5102903
|
[4] |
WASHER
|
|
| 4. |
S8010650
|
[1] |
O-RING
|
|
| 5. |
S2212261
|
[4] |
SOCKET-HEAD BOLT
|
S2212266
|
| 5. |
S2212266
|
[4] |
BOLT
|
|
| 6. |
2114-1989
|
[1] |
SPACER
|
|
| 7. |
2181-1897
|
[1] |
FLANGE
|
|
| 8. |
2444-1021
|
[1] |
ROD;PISTON
|
|
| 9. |
2180-9111
|
[1] |
RING;PISTON
|
|
