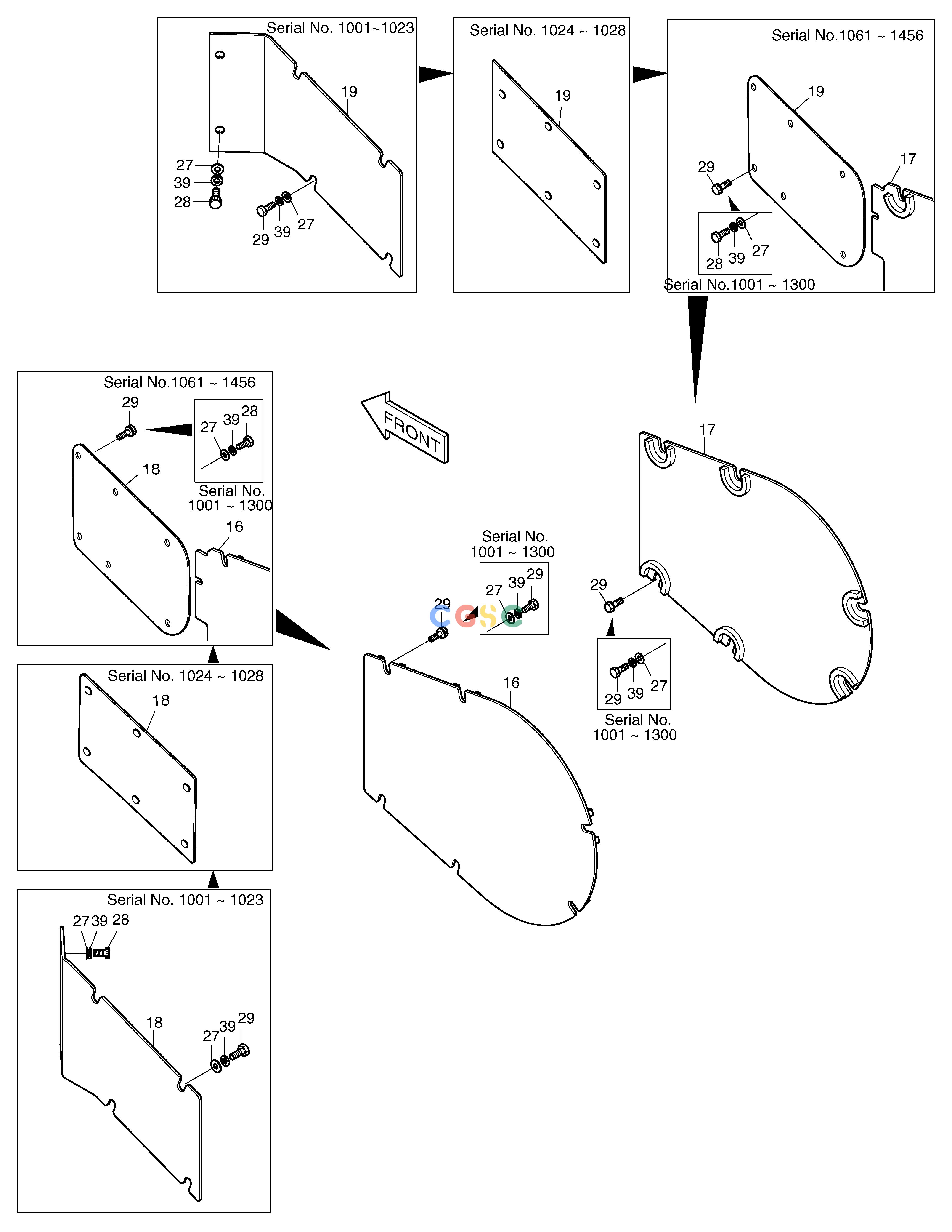

斗山零件查询TRAVEL PIPING COVER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2604-1378A
|
[-] |
TRACK ASS'Y
|
|
| -. |
2604-1378B
|
[-] |
TRACK ASS'Y
|
|
| 16. |
2621-3883
|
[1] |
COVER
|
|
| 16. |
621-01529A
|
[1] |
COVER(L.H)
|
|
| 17. |
2621-3884
|
[1] |
COVER
|
|
| 17. |
621-01530A
|
[1] |
COVER(R.H)
|
|
| 18. |
2229-1066
|
[1] |
COVER
|
|
| 18. |
2627-1904
|
[1] |
COVER
|
|
| 18. |
621-00029
|
[1] |
COVER
|
621-00029A
|
| 18. |
621-00029A
|
[1] |
COVER
|
|
| 19. |
2229-1067
|
[1] |
COVER
|
|
| 19. |
2627-1904
|
[1] |
COVER
|
|
| 19. |
621-00029
|
[1] |
COVER
|
621-00029A
|
| 19. |
621-00029A
|
[1] |
COVER
|
|
| 27. |
2114-1058D10
|
[24] |
WASHER
|
|
| 28. |
S0511853
|
[4] |
BOLT
|
|
| 28. |
S0511853
|
[12] |
BOLT
|
|
| 29. |
S0512253
|
[20] |
BOLT M10X1.5X30
|
|
| 29. |
S0512253
|
[12] |
BOLT M10X1.5X30
|
|
| 29. |
2120-2196D2
|
[24] |
BOLT;SET M10X1.5X25
|
|
| 29. |
2120-2196D10
|
[24] |
BOLT;SET M12X1.75X25
|
|
| 39. |
S5110601
|
[24] |
WASHER;SPRING M10
|
|
