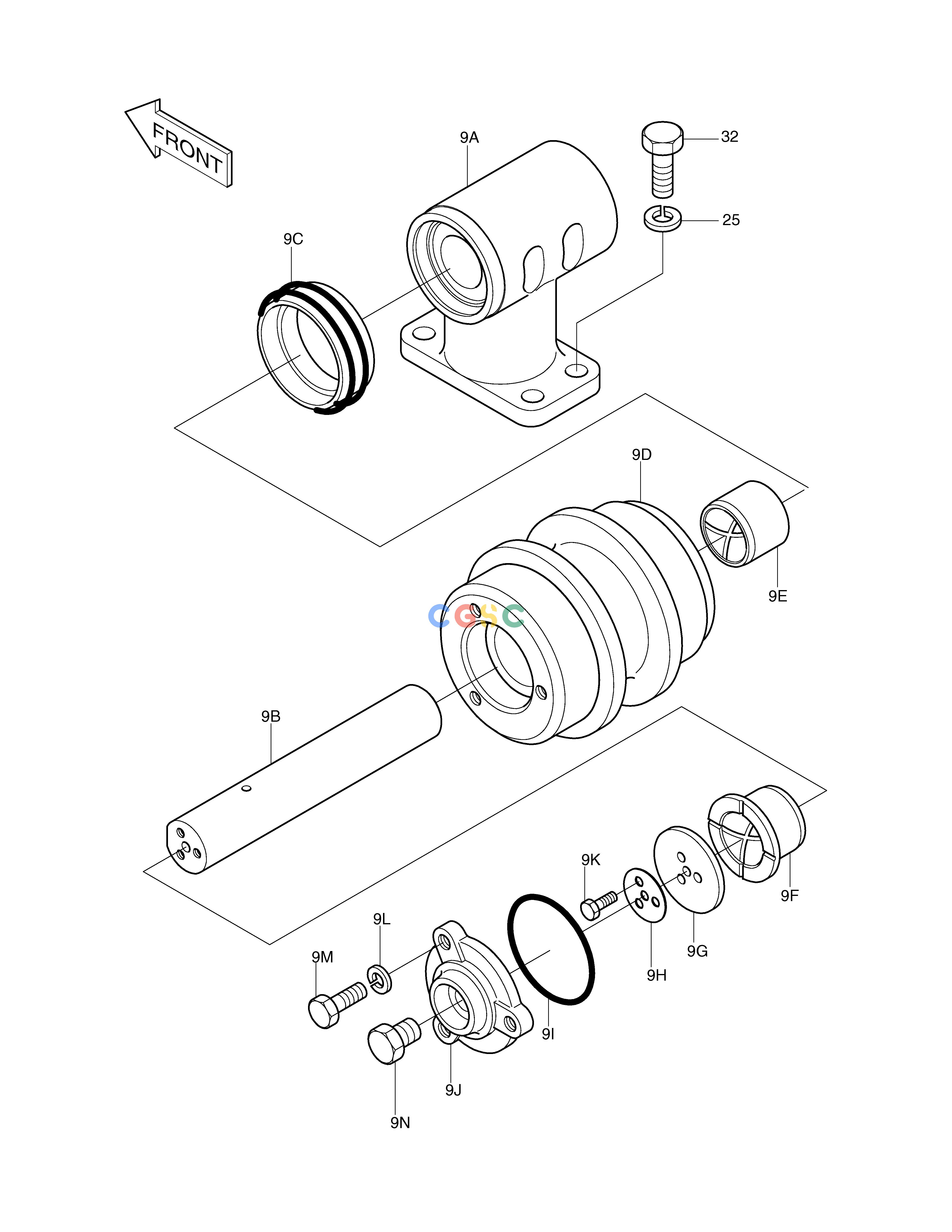

斗山零件查询UPPER ROLLER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2604-1378A
|
[-] |
TRACK ASS'Y
|
|
| 25. |
S5102901
|
[16] |
. WASHER;SPRING
|
|
| 32. |
S0565051
|
[16] |
BOLT M16X2.0X40
|
|
| 9. |
2270-1030A
|
[4] |
ROLLER;UPPER
|
|
| 9A. |
2271-1015A
|
[1] |
BRACKET
|
|
| 9B. |
2112-1018A
|
[1] |
AXLE
|
|
| 9C. |
2180-9005A
|
[1] |
SEAL;GROUP
|
|
| 9D. |
2270-1031A
|
[1] |
ROLLER
|
|
| 9E. |
2110-1072A
|
[1] |
BUSHING
|
|
| 9F. |
2110-1073A
|
[1] |
BUSHING
|
|
| 9G. |
2114-1158A
|
[1] |
WASHER
|
|
| 9H. |
2116-1007
|
[1] |
PLATE;LOCK
|
|
| 9I. |
2180-6005
|
[1] |
O-RING
|
|
| 9J. |
2229-1006A
|
[1] |
COVER
|
|
| 9K. |
S0508861
|
[3] |
BOLT M8X1.25X20
|
|
| 9L. |
S5102602
|
[3] |
WASHER;SPRING M10
|
|
| 9M. |
S0758253
|
[3] |
BOLT M10X1.25X35
|
|
| 9N. |
2181-6005
|
[1] |
PLUG
|
|
