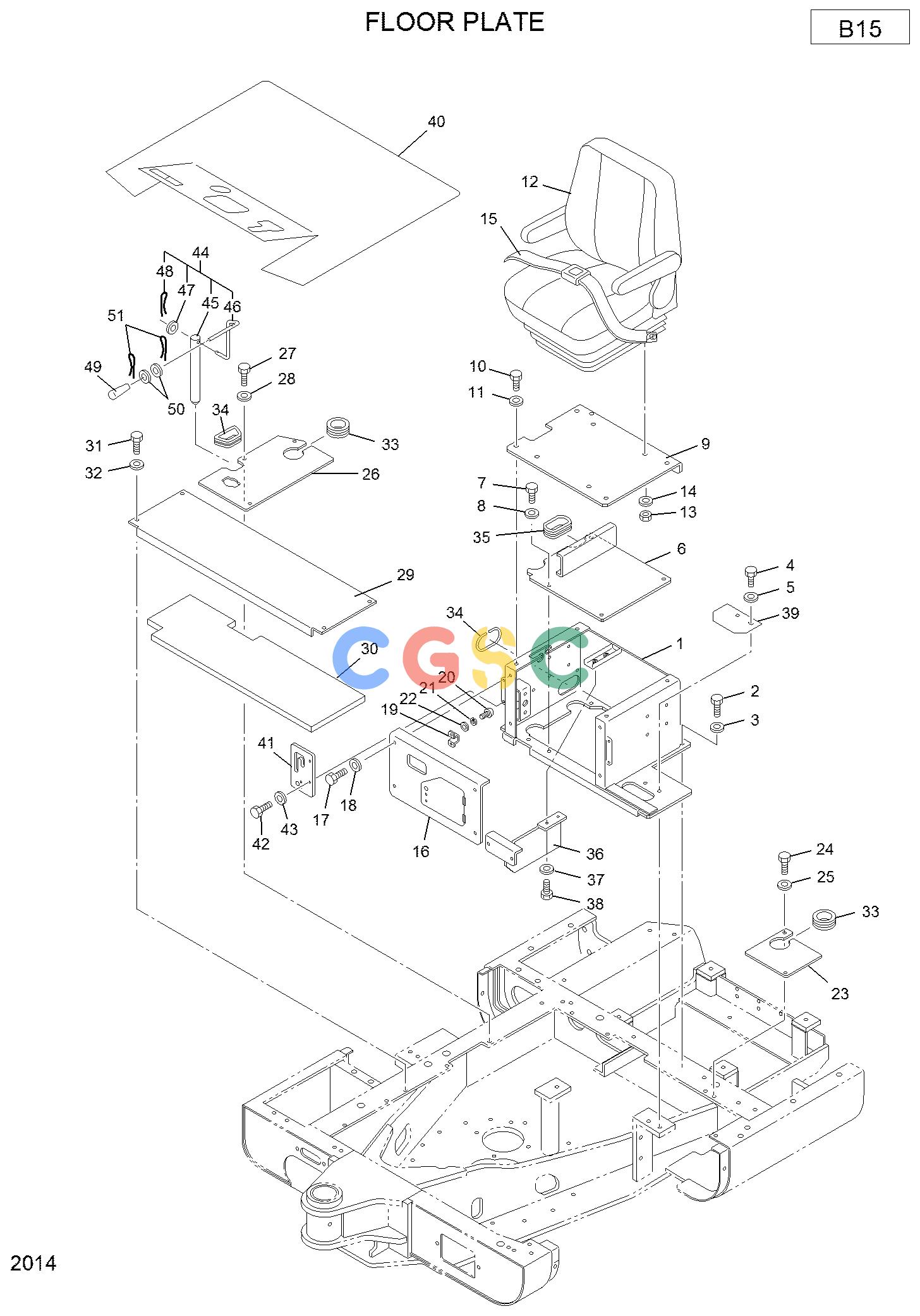

现代零件查询R22-7 FLOOR PLATEEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
902 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-04030
|
[1] |
BOX-SEAT
|
|
| 2. |
XJDH-00035
|
[3] |
BOLT
|
|
| 3. |
XJDH-00276
|
[3] |
WASHER
|
|
| 4. |
XJDH-00057
|
[2] |
BOLT
|
|
| 5. |
XJDH-00278
|
[2] |
WASHER
|
|
| 6. |
XJDH-04031
|
[1] |
PLATE-FLOOR(B)
|
|
| 7. |
XJDH-00035
|
[4] |
BOLT
|
|
| 8. |
XJDH-00276
|
[4] |
WASHER
|
|
| 9. |
XJDH-04032
|
[1] |
PLATE-SEAT
|
|
| 10. |
XJDH-00057
|
[4] |
BOLT
|
|
| 11. |
XJDH-00278
|
[4] |
WASHER
|
|
| 12. |
XJDH-02853
|
[1] |
SEAT
|
|
| 13. |
XJDH-00165
|
[4] |
NUT
|
|
| 14. |
XJDH-00276
|
[4] |
WASHER
|
|
| 15. |
XJDH-03211
|
[1] |
BELT-SEAT
|
|
| 16. |
XJDH-04033
|
[1] |
COVER
|
|
| 17. |
XJDH-00019
|
[4] |
BOLT
|
|
| 18. |
XJDH-00274
|
[4] |
WASHER
|
|
| 19. |
XJDH-00001
|
[1] |
LATCH
|
|
| 20. |
XJDH-00215
|
[2] |
SCREW-PANHEAD
|
|
| 21. |
XJDH-00238
|
[2] |
WASHER-SPRING
|
|
| 22. |
XJDH-00253
|
[2] |
WASHER
|
|
| 23. |
XJDH-04034
|
[1] |
PLATE-FLOOR(C)
|
|
| 24. |
XJDH-00035
|
[2] |
BOLT
|
|
| 25. |
XJDH-00276
|
[2] |
WASHER
|
|
| 26. |
XJDH-04035
|
[1] |
PLATE-FLOOR(D)
|
|
| 27. |
XJDH-00035
|
[3] |
BOLT
|
|
| 28. |
XJDH-00276
|
[3] |
WASHER
|
|
| 29. |
XJDH-04036
|
[1] |
PLATE-FLOOR
|
|
| 30. |
XJDH-04037
|
[1] |
URETHAN FOAM
|
|
| 31. |
XJDH-00035
|
[4] |
BOLT
|
|
| 32. |
XJDH-00276
|
[4] |
WASHER
|
|
| 33. |
XJDH-00701
|
[2] |
GROMMET
|
|
| 34. |
XJDH-04038
|
[2] |
RUBBER-TRIM
|
|
| 35. |
XJDH-03865
|
[1] |
RUBBER-TRIM
|
|
| 36. |
XJDH-04039
|
[1] |
BRACKET-ELECTRICAL
|
|
| 37. |
XJDH-00035
|
[2] |
BOLT
|
|
| 38. |
XJDH-00276
|
[2] |
WASHER
|
|
| 39. |
XJDH-04040
|
[1] |
COVER
|
|
| 40. |
XJDH-04041
|
[1] |
MAT-FLOOR
|
|
| 41. |
XJDH-04042
|
[1] |
PLATE
|
|
| 42. |
XJDH-00032
|
[2] |
BOLT
|
|
| 43. |
XJDH-00276
|
[2] |
WASHER
|
|
| 44. |
XJDH-04043
|
[1] |
SLEW LOCK PIN ASSY
|
|
| 45. |
XJDH-04044
|
[1] |
PIN
|
|
| 46. |
XJDH-04045
|
[1] |
BAR
|
|
| 47. |
XJDH-04046
|
[1] |
WASHER
|
|
| 48. |
XJDH-04047
|
[1] |
PIN-SPLIT
|
|
| 49. |
XJDH-01049
|
[1] |
GRIP
|
|
| 50. |
XJDH-00264
|
[2] |
WASHER
|
|
| 51. |
XJDH-04047
|
[2] |
PIN-SPLIT
|
|
