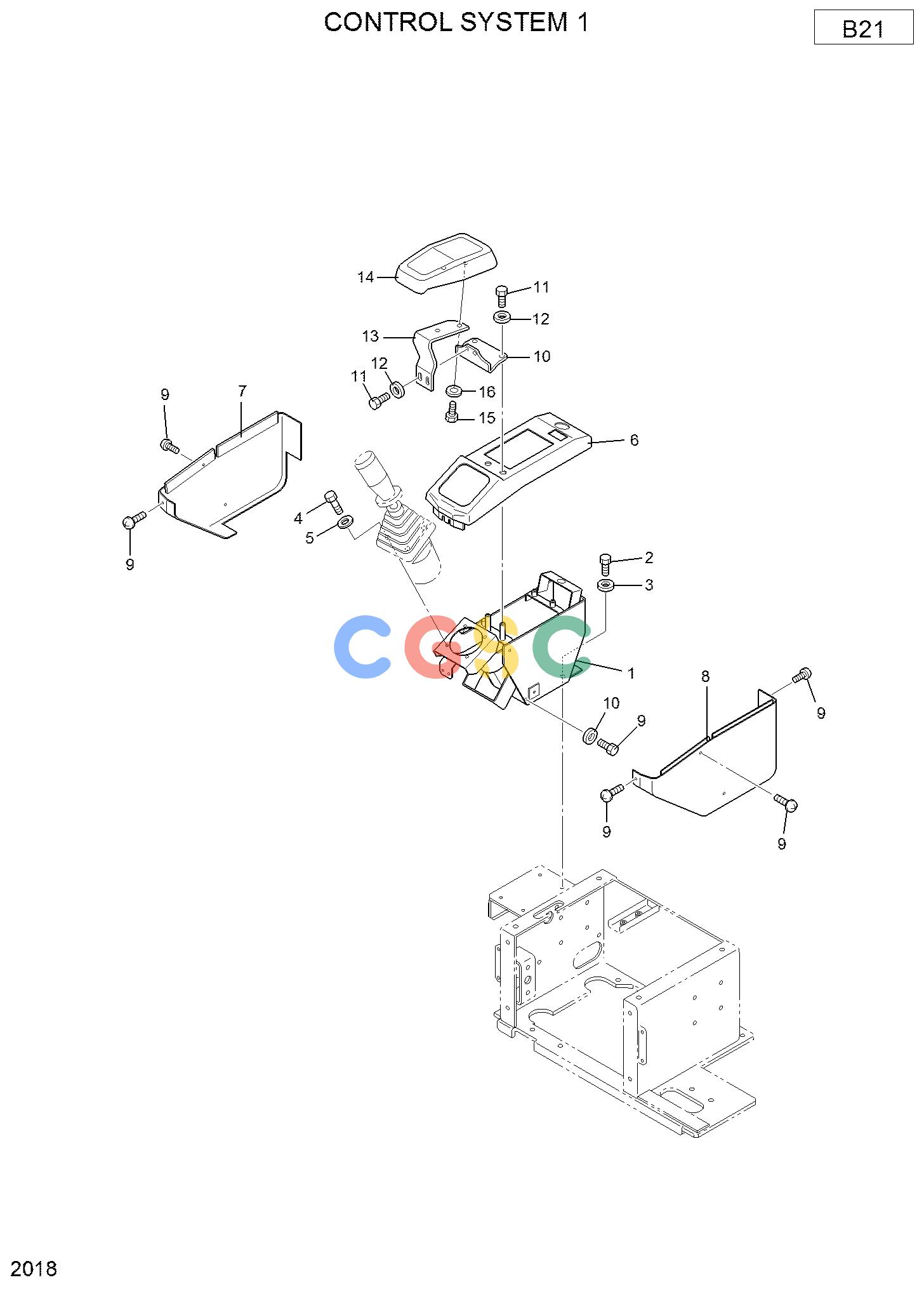

现代零件查询R22-7 CONTROL SYSTEM 1EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03062
|
[1] |
STAND-LEVER(RH)
|
|
| 2. |
XJDH-00035
|
[4] |
BOLT
|
|
| 3. |
XJDH-00276
|
[4] |
WASHER
|
|
| 4. |
XJDH-00110
|
[4] |
BOLT
|
|
| 5. |
XJDH-00274
|
[4] |
WASHER
|
|
| 6. |
XJDH-03063
|
[1] |
COVER
|
|
| 7. |
XJDH-01600
|
[1] |
COVER
|
|
| 8. |
XJDH-01601
|
[1] |
COVER
|
|
| 9. |
XJDH-04048
|
[9] |
SCREW-PAN HEAD
|
|
| 10. |
XJDH-01604
|
[1] |
BRACKET
|
|
| 11. |
XJDH-00015
|
[4] |
BOLT
|
|
| 12. |
XJDH-00273
|
[4] |
WASHER
|
|
| 13. |
XJDH-02440
|
[1] |
BRACKET(R)
|
|
| 14. |
XJDH-02442
|
[1] |
REST-HAND
|
|
| 15. |
XJDH-00034
|
[2] |
BOLT
|
|
| 16. |
XJDH-00276
|
[2] |
WASHER
|
|
