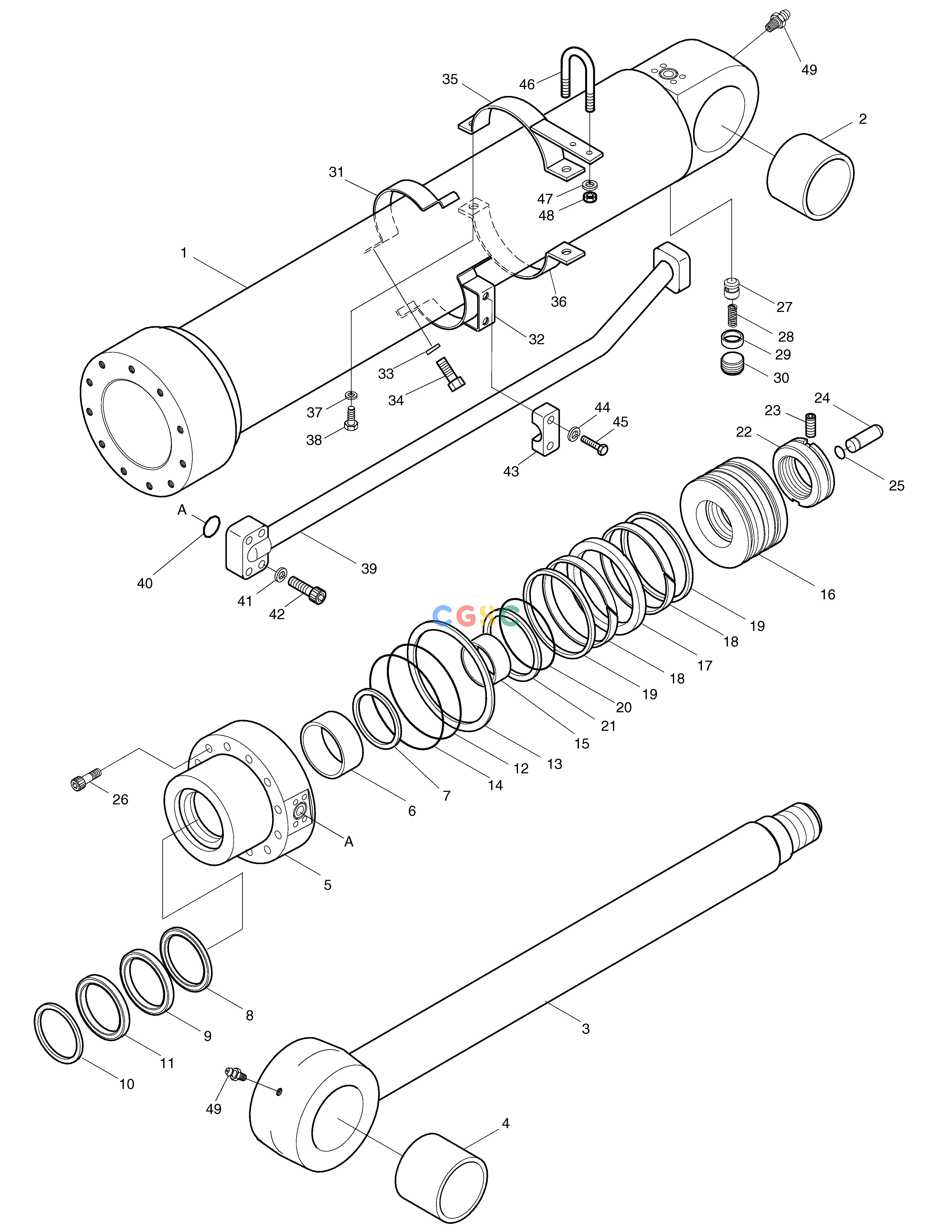

斗山零件查询ARM CYLINDER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
665 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9280CKT
|
[1] |
SEAL KIT;ARM CYL.
|
|
| -. |
2440-9280B
|
[1] |
CYLINDER;ARM
|
2440-9280C
|
| -. |
2440-9280C
|
[1] |
CYLINDER;ARM
|
2440-9280E
|
| -. |
2440-9280E
|
[1] |
CYLINDER;ARM
|
2440-9280G
|
| -. |
2440-9280G
|
[1] |
CYLINDER;ARM
|
|
| 1. |
53A505-0
|
[1] |
TUBE ASS'Y
|
53A505-1
|
| 1. |
53A505-1
|
[1] |
TUBE ASS'Y
|
|
| 10. |
E6020350
|
[1] |
WIPER;DUST
|
|
| 11. |
00M799-0
|
[1] |
RING;RETAINING
|
|
| 12. |
E6311841
|
[1] |
O-RING
|
|
| 13. |
53A513-0
|
[1] |
RING;BACK UP
|
04B438-0
|
| 13. |
04B438-0
|
[1] |
RING;BACK-UP
|
|
| 14. |
E6490091
|
[1] |
O-RING
|
|
| 15. |
00C316-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53A518-0
|
[1] |
PISTON
|
|
| 17. |
E5130380
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
00Z113-0
|
[2] |
RING;WEAR
|
|
| 19. |
00R105-0
|
[2] |
RING;SLYD
|
|
| 2. |
00B103-0
|
[1] |
BUSH;STEEL
|
|
| 20. |
E6311481
|
[1] |
O-RING
|
|
| 21. |
53A429-0
|
[2] |
RING;BACK UP
|
|
| 22. |
53U423-0
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
53A409-0
|
[1] |
PLUNGER;CUSHION
|
|
| 25. |
03A714-0
|
[1] |
RING;STOP
|
|
| 26. |
E0502709
|
[14] |
BOLT;SOCKET
|
|
| 27. |
04A304-0
|
[1] |
VALVE;CHECK
|
|
| 28. |
03A729-0
|
[1] |
SPRING
|
|
| 29. |
03A728-0
|
[1] |
SUPPORT;SPRING
|
|
| 3. |
53A517-0
|
[1] |
ROD ASS'Y
|
|
| 30. |
E1500030
|
[1] |
PLUG
|
|
| 31. |
53A519-0
|
[1] |
PIPE BAND ASS'Y-H
|
|
| 31. |
53A510-0
|
[1] |
PIPE BAND ASS'Y-H
|
|
| 32. |
53B268-0
|
[1] |
BAND;PIPE
|
|
| 32. |
00P381-0
|
[1] |
BAND;PIPE
|
|
| 33. |
E0020683
|
[2] |
BOLT;HEX
|
|
| 34. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 35. |
53A520-0
|
[1] |
PIPE BAND ASS'Y-R
|
|
| 35. |
53A565-0
|
[1] |
PIPE BAND ASS'Y-R
|
|
| 36. |
53B268-0
|
[1] |
BAND;PIPE
|
|
| 36. |
00P381-0
|
[1] |
BAND;PIPE
|
|
| 37. |
E0020683
|
[2] |
BOLT;HEX
|
|
| 38. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 39. |
53A521-0
|
[1] |
PIPE ASS'Y-R
|
|
| 4. |
00B103-0
|
[1] |
BUSH;STEEL
|
|
| 40. |
E6300761
|
[1] |
O-RING
|
|
| 41. |
E3110112
|
[4] |
WASHER;SPRING
|
|
| 42. |
E0501546
|
[4] |
BOLT;SOCKET
|
|
| 43. |
00C270-0
|
[1] |
CLAMP;PIPE
|
|
| 44. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 45. |
E0020733
|
[2] |
BOLT;HEX
|
|
| 46. |
03A534-0
|
[1] |
U-BOLT
|
|
| 47. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 48. |
E2022033
|
[2] |
NUT;HEX
|
|
| 49. |
E8841022
|
[2] |
NIPPLE;GREASE
|
|
| 5. |
53A516-0
|
[1] |
COVER;ROD
|
53A516-1
|
| 5. |
53A516-1
|
[1] |
ROD COVER
|
|
| 6. |
E8412227
|
[1] |
BUSH;DU
|
|
| 7. |
00M574-0
|
[1] |
RING;RETAINING
|
|
| 8. |
E5500350
|
[1] |
SEAL;BUFFER
|
|
| 9. |
E5303590
|
[1] |
PACKING;U
|
|
