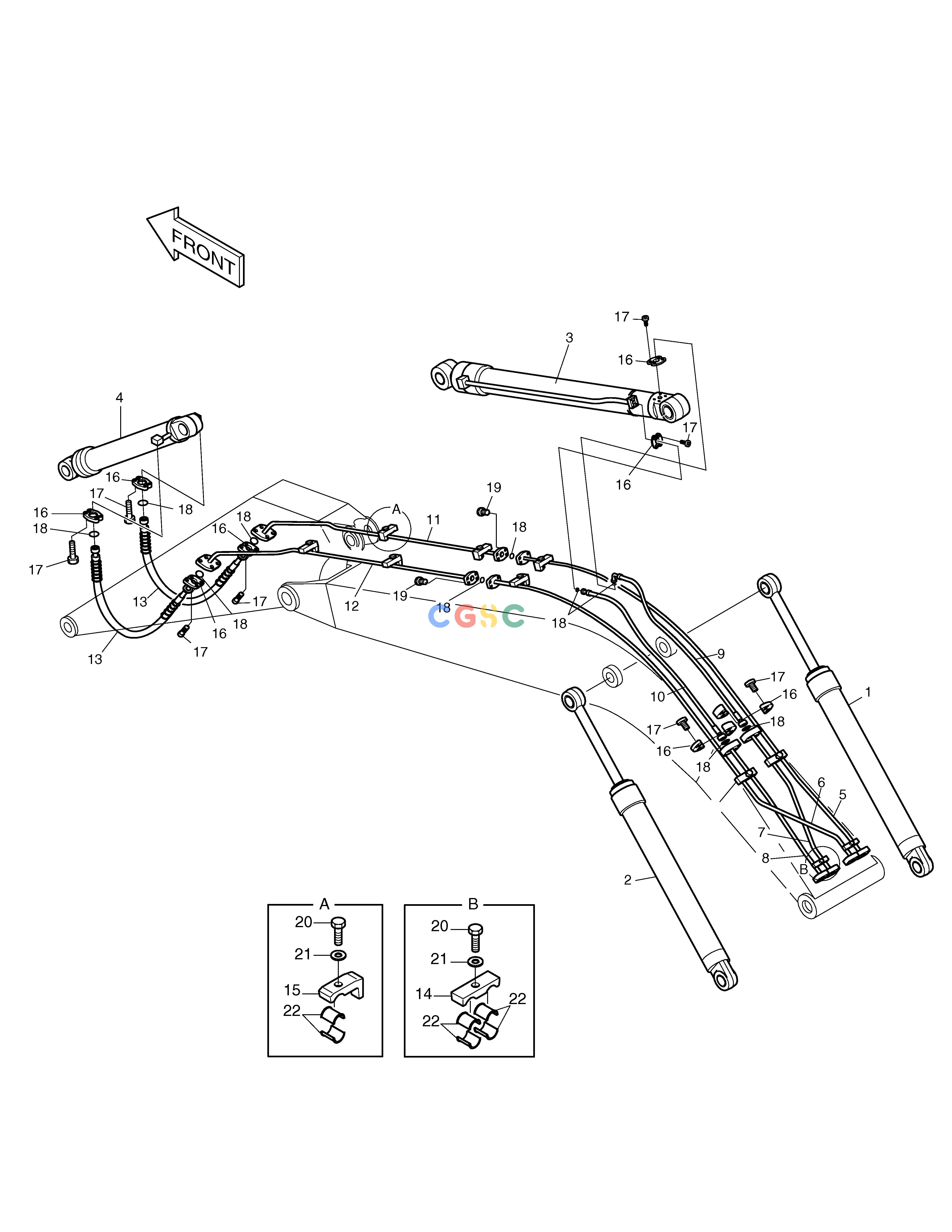

斗山零件查询FRONT PIPING SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
930 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1918A
|
[-] |
FRONT PIPING
|
|
| 1. |
2440-9278A
|
[1] |
CYLINDER;BOOM(R.H.)
|
|
| 1. |
2440-9278B
|
[1] |
CYLINDER;BOOM(R.H.)
|
2440-9278C
|
| 1. |
2440-9278C
|
[1] |
CYLINDER;BOOM(R.H.)
|
2440-9278E
|
| 1. |
2440-9278E
|
[1] |
CYLINDER;BOOM(R.H.)
|
|
| 10. |
2184-1081D95
|
[1] |
HOSE PF1-1400L
|
|
| 11. |
2140-1093B
|
[1] |
PIPE
|
|
| 12. |
2140-1094B
|
[1] |
PIPE
|
|
| 13. |
2184-1081D79
|
[2] |
HOSE
|
|
| 13. |
2184-1081D155
|
[2] |
HOSE PF1-1900L
|
|
| 14. |
2124-1587
|
[6] |
CLAMP;PIPE
|
|
| 15. |
2124-1586A
|
[6] |
CLAMP;PIPE
|
|
| 16. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 17. |
S2212361
|
[32] |
BOLT;SOCKET M10X1.5X35
|
S2212366
|
| 17. |
S2212366
|
[32] |
BOLT
|
|
| 18. |
2180-1026D19
|
[10] |
O-RING
|
|
| 19. |
S2212561
|
[8] |
BOLT;SOCKET M10X1.5X45
|
S2212566
|
| 19. |
S2212566
|
[8] |
BOLT
|
|
| 2. |
2440-9279A
|
[1] |
CYLINDER;BOOM(L.H.)
|
|
| 2. |
2440-9279B
|
[1] |
CYLINDER;BOOM(L.H.)
|
2440-9279C
|
| 2. |
2440-9279C
|
[1] |
CYLINDER;BOOM(L.H.)
|
2440-9279E
|
| 2. |
2440-9279E
|
[1] |
CYLINDER;BOOM(L.H.)
|
|
| 20. |
S0565461
|
[12] |
BOLT M16X2.0X60
|
S0565466
|
| 20. |
S0565466
|
[12] |
BOLT
|
|
| 21. |
S5102901
|
[12] |
. WASHER;SPRING
|
S5102903
|
| 21. |
S5102903
|
[12] |
WASHER
|
|
| 22. |
2161-2267A
|
[36] |
RUBBER
|
|
| 3. |
2440-9280A
|
[1] |
CYLINDER;ARM
|
|
| 3. |
2440-9280B
|
[1] |
CYLINDER;ARM
|
2440-9280C
|
| 3. |
2440-9280C
|
[1] |
CYLINDER;ARM
|
2440-9280E
|
| 3. |
2440-9280E
|
[1] |
CYLINDER;ARM
|
2440-9280G
|
| 3. |
2440-9280G
|
[1] |
CYLINDER;ARM
|
|
| 4. |
2440-9281A
|
[1] |
CYLINDER;BUCKET
|
2440-9281B
|
| 4. |
2440-9281B
|
[1] |
CYLINDER;BUCKET
|
2440-9281C
|
| 4. |
2440-9281C
|
[1] |
CYLINDER;BUCKET
|
2440-9281E
|
| 4. |
2440-9281E
|
[1] |
CYLINDER;BUCKET
|
|
| 5. |
2140-1425A
|
[1] |
PIPE
|
|
| 6. |
2140-1426A
|
[1] |
PIPE
|
|
| 7. |
2140-1427A
|
[1] |
PIPE
|
|
| 8. |
2140-1428A
|
[1] |
PIPE
|
|
| 9. |
2184-1082D92
|
[1] |
HOSE PF1-1150L
|
|
