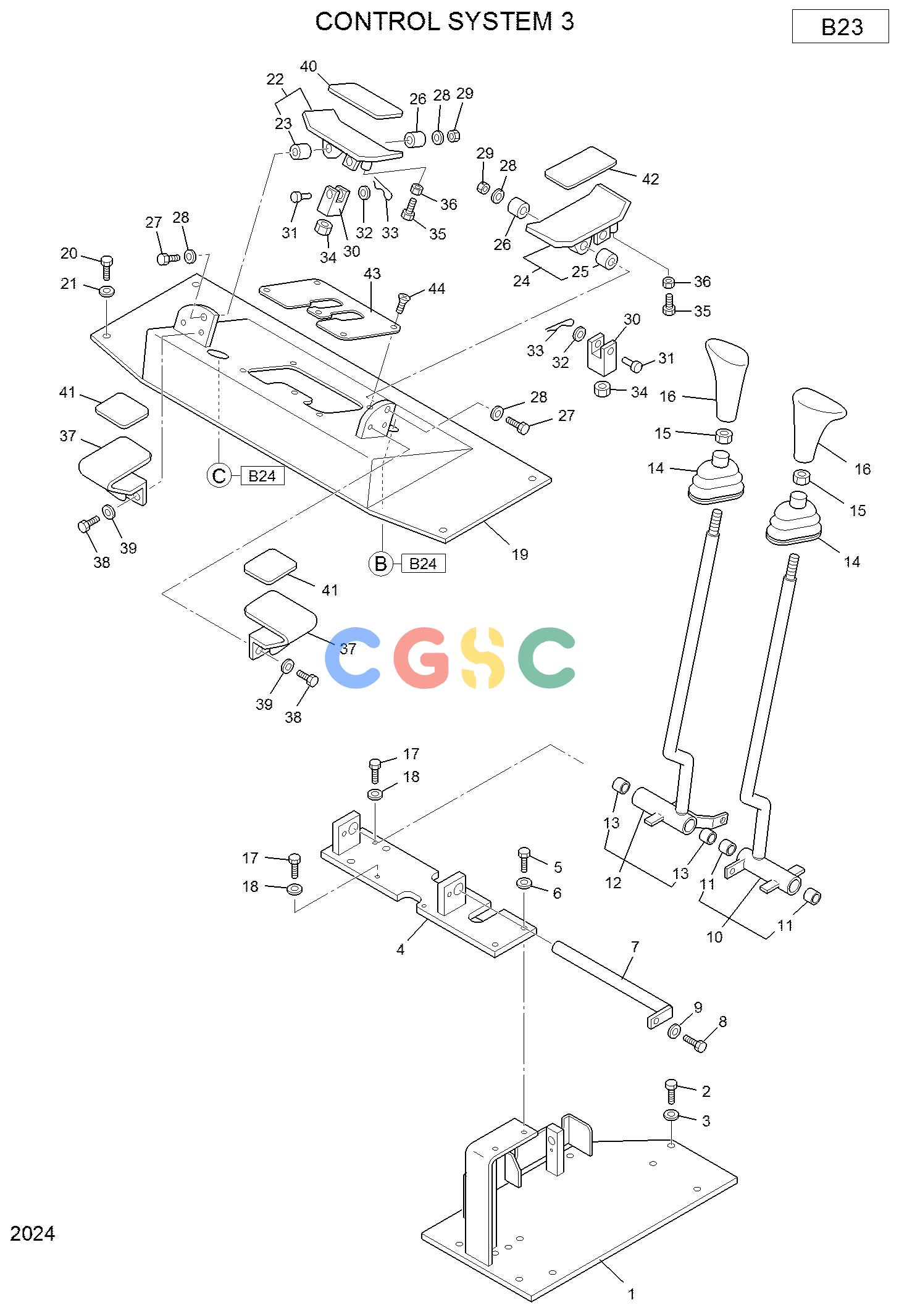

现代零件查询R22-7 CONTROL SYSTEM 3EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
837 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-04052
|
[1] |
MOUNT-VALVE
|
|
| 2. |
XJDH-00057
|
[4] |
BOLT
|
|
| 3. |
XJDH-00278
|
[4] |
WASHER
|
|
| 4. |
XJDH-04053
|
[1] |
STAND-LEVER
|
|
| 5. |
XJDH-00057
|
[4] |
BOLT
|
|
| 6. |
XJDH-00278
|
[4] |
WASHER
|
|
| 7. |
XJDH-04054
|
[1] |
PIN
|
|
| 8. |
XJDH-00035
|
[1] |
BOLT
|
|
| 9. |
XJDH-00276
|
[1] |
WASHER
|
|
| 10. |
XJDH-04055
|
[1] |
LEVER-DRIVE(L)
|
|
| 11. |
XJDH-00320
|
[2] |
BUSHING
|
|
| 12. |
XJDH-04056
|
[1] |
LEVER-DRIVE(R)
|
|
| 13. |
XJDH-00320
|
[2] |
BUSHING
|
|
| 14. |
XJDH-01032
|
[2] |
BOOTS
|
|
| 15. |
XJDH-02890
|
[2] |
NUT
|
|
| 16. |
XJDH-01005
|
[2] |
GRIP
|
|
| 17. |
XJDH-00039
|
[4] |
BOLT
|
|
| 18. |
XJDH-00165
|
[4] |
NUT
|
|
| 19. |
XJDH-04057
|
[1] |
STAND-LEVER
|
|
| 20. |
XJDH-00035
|
[4] |
BOLT
|
|
| 21. |
XJDH-00276
|
[4] |
WASHER
|
|
| 22. |
XJDH-04058
|
[1] |
PEDAL-SWING
|
|
| 23. |
XJDH-04059
|
[1] |
BUSHING
|
|
| 24. |
XJDH-04060
|
[1] |
PEDAL-PTO
|
|
| 25. |
XJDH-04059
|
[1] |
BUSHING
|
|
| 26. |
XJDH-01232
|
[2] |
PIN-SWING (I)
|
|
| 27. |
XJDH-04090
|
[2] |
BOLT
|
|
| 28. |
XJDH-00264
|
[4] |
WASHER
|
|
| 29. |
XJDH-02894
|
[2] |
NUT
|
|
| 30. |
XJDH-04091
|
[22] |
END-ROD
|
|
| 31. |
XJDH-01402
|
[2] |
PIN
|
|
| 32. |
XJDH-00253
|
[2] |
WASHER
|
|
| 33. |
XJDH-04092
|
[2] |
PIN-SPLIT
|
|
| 34. |
XJDH-00182
|
[2] |
NUT
|
|
| 35. |
XJDH-00035
|
[2] |
BOLT
|
|
| 36. |
XJDH-00165
|
[2] |
NUT
|
|
| 37. |
XJDH-04093
|
[2] |
STOPPER-PEDAL
|
|
| 38. |
XJDH-00032
|
[4] |
BOLT
|
|
| 39. |
XJDH-00276
|
[4] |
WASHER
|
|
| 40. |
XJDH-01205
|
[1] |
NONSLIP
|
|
| 41. |
XJDH-01208
|
[2] |
NONSLIP
|
|
| 42. |
XJDH-04094
|
[1] |
NONSLIP
|
|
| 43. |
XJDH-04095
|
[1] |
COVER
|
|
| 44. |
XJDH-04096
|
[5] |
SCREW-FLAT HEAD
|
|
