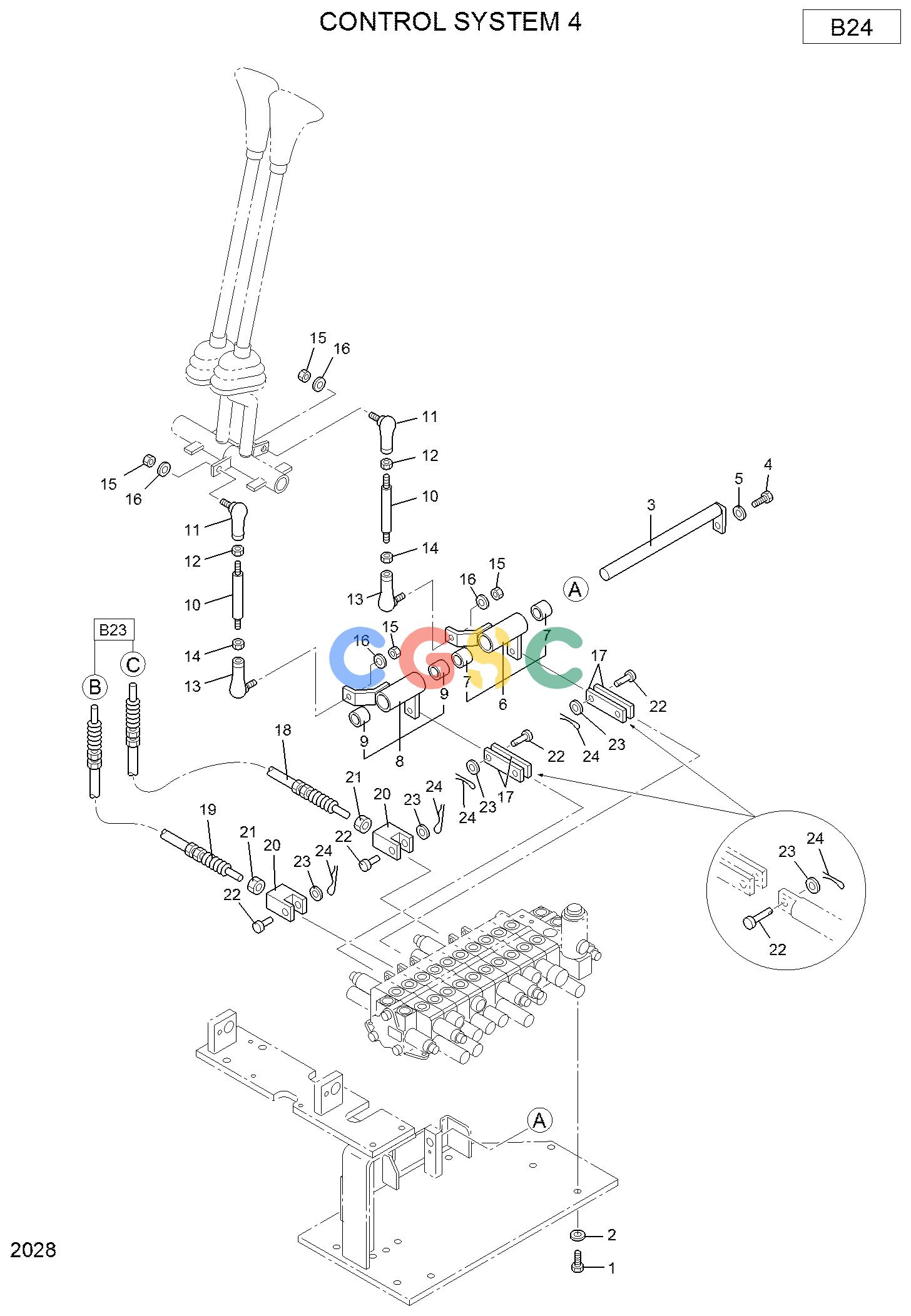

现代零件查询R22-7 CONTROL SYSTEM 4EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
688 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-00046
|
[4] |
BOLT
|
|
| 2. |
XJDH-00278
|
[4] |
WASHER
|
|
| 3. |
XJDH-04054
|
[1] |
PIN
|
|
| 4. |
XJDH-00035
|
[1] |
BOLT
|
|
| 5. |
XJDH-00276
|
[1] |
WASHER
|
|
| 6. |
XJDH-04097
|
[1] |
LINK
|
|
| 7. |
XJDH-00320
|
[2] |
BUSHING
|
|
| 8. |
XJDH-04098
|
[1] |
LINK
|
|
| 9. |
XJDH-00320
|
[2] |
BUSHING
|
|
| 10. |
XJDH-04099
|
[2] |
ROD
|
|
| 11. |
XJDH-04100
|
[2] |
BALL-LINK(L)
|
|
| 12. |
XJDH-04101
|
[2] |
NUT
|
|
| 13. |
XJDH-04102
|
[2] |
BALL-LINK
|
|
| 14. |
XJDH-00167
|
[2] |
NUT
|
|
| 15. |
XJDH-00167
|
[4] |
NUT
|
|
| 16. |
XJDH-00278
|
[4] |
WASHER
|
|
| 17. |
XJDH-04103
|
[4] |
PLATE
|
|
| 18. |
XJDH-02851
|
[1] |
WIRE-PUSH PULL
|
|
| 19. |
XJDH-02850
|
[1] |
WIRE-PUSH PULL
|
|
| 20. |
XJDH-04091
|
[2] |
END-ROD
|
|
| 21. |
XJDH-00182
|
[2] |
NUT
|
|
| 22. |
XJDH-01402
|
[6] |
PIN
|
|
| 23. |
XJDH-00253
|
[6] |
WASHER
|
|
| 24. |
XJDH-04092
|
[6] |
PIN-SPLIT
|
|
