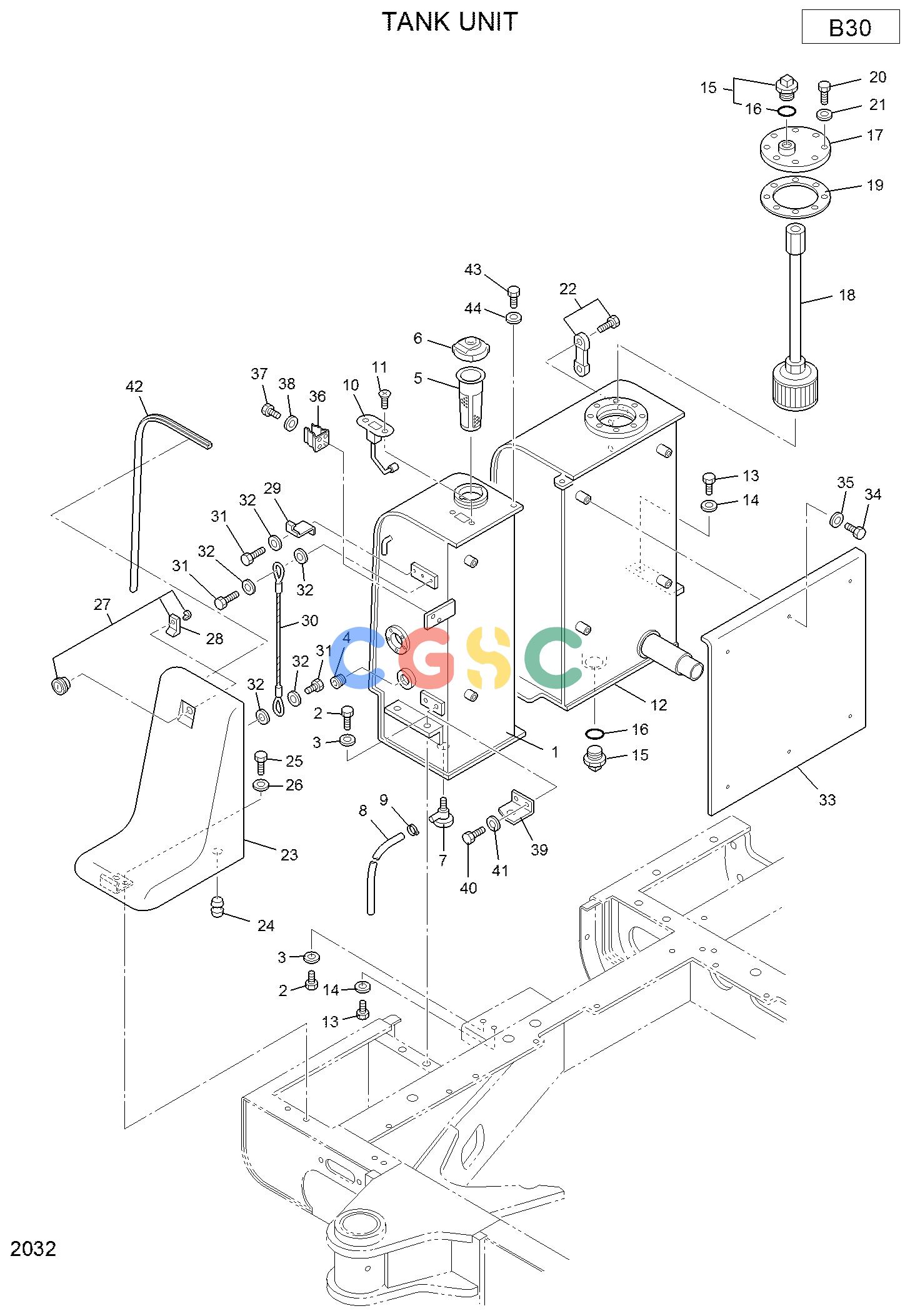

现代零件查询R22-7 TANK UNITEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-04107
|
[1] |
TANK-FUEL
|
|
| 2. |
XJDH-00058
|
[4] |
BOLT
|
|
| 3. |
XJDH-00278
|
[4] |
WASHER
|
|
| 4. |
XJDH-00383
|
[1] |
PLUG
|
|
| 5. |
XJDH-01020
|
[1] |
STRAINER
|
|
| 6. |
XJDH-01223
|
[1] |
CAP-TANK
|
|
| 7. |
XJDH-01004
|
[1] |
COCK-DRAIN
|
|
| 8. |
XJDH-03496
|
[1] |
HOSE-VINYL
|
|
| 9. |
XJDH-00583
|
[1] |
CLIP
|
|
| 10. |
XJDH-01785
|
[1] |
GAUGE-FUEL
|
|
| 11. |
XJDH-00226
|
[2] |
SCREW-FLAT HEAD
|
|
| 12. |
XJDH-04108
|
[1] |
TANK-HYD OIL
|
|
| 13. |
XJDH-00058
|
[3] |
BOLT
|
|
| 14. |
XJDH-00278
|
[3] |
WASHER
|
|
| 15. |
XJDH-00976
|
[2] |
PLUG
|
|
| 16. |
XJDH-00339
|
[1] |
O-RING
|
|
| 17. |
XJDH-04109
|
[1] |
COVER
|
|
| 18. |
XJDH-03498
|
[1] |
STRAINER-SUCTION
|
|
| 19. |
XJDH-04110
|
[1] |
GASKET
|
|
| 20. |
XJDH-00032
|
[6] |
BOLT
|
|
| 21. |
XJDH-00276
|
[6] |
WASHER
|
|
| 22. |
XJDH-01003
|
[1] |
GAUGE-LEVEL
|
|
| 23. |
XJDH-04111
|
[1] |
COVER-BATTERY
|
|
| 24. |
XJDH-00805
|
[2] |
PLUG-RUBBER CUSHION
|
|
| 25. |
XJDH-00035
|
[4] |
BOLT
|
|
| 26. |
XJDH-00276
|
[4] |
WASHER
|
|
| 27. |
XJDH-02845
|
[1] |
KEY ASSY
|
|
| 28. |
XJDH-02846
|
[1] |
PLATE-LOCK
|
|
| 29. |
XJDH-04112
|
[1] |
PLATE-LOCK
|
|
| 30. |
XJDH-01381
|
[1] |
WIRE ROPE
|
|
| 31. |
XJDH-00030
|
[4] |
BOLT
|
|
| 32. |
XJDH-00276
|
[6] |
WASHER
|
|
| 33. |
XJDH-04113
|
[1] |
COVER-TANK
|
|
| 34. |
XJDH-00032
|
[6] |
BOLT
|
|
| 35. |
XJDH-00262
|
[6] |
WASHER
|
|
| 36. |
XJDH-01190
|
[1] |
HOLDER-GREASE GUN
|
|
| 37. |
XJDH-00016
|
[2] |
BOLT
|
|
| 38. |
XJDH-00274
|
[2] |
WASHER
|
|
| 39. |
XJDH-04114
|
[1] |
PLATE
|
|
| 40. |
XJDH-00030
|
[2] |
BOLT
|
|
| 41. |
XJDH-00276
|
[2] |
WASHER
|
|
| 42. |
XJDH-04115
|
[1] |
RUBBER-TRIM
|
|
| 43. |
XJDH-00032
|
[1] |
BOLT
|
|
| 44. |
XJDH-00276
|
[1] |
WASHER
|
|
