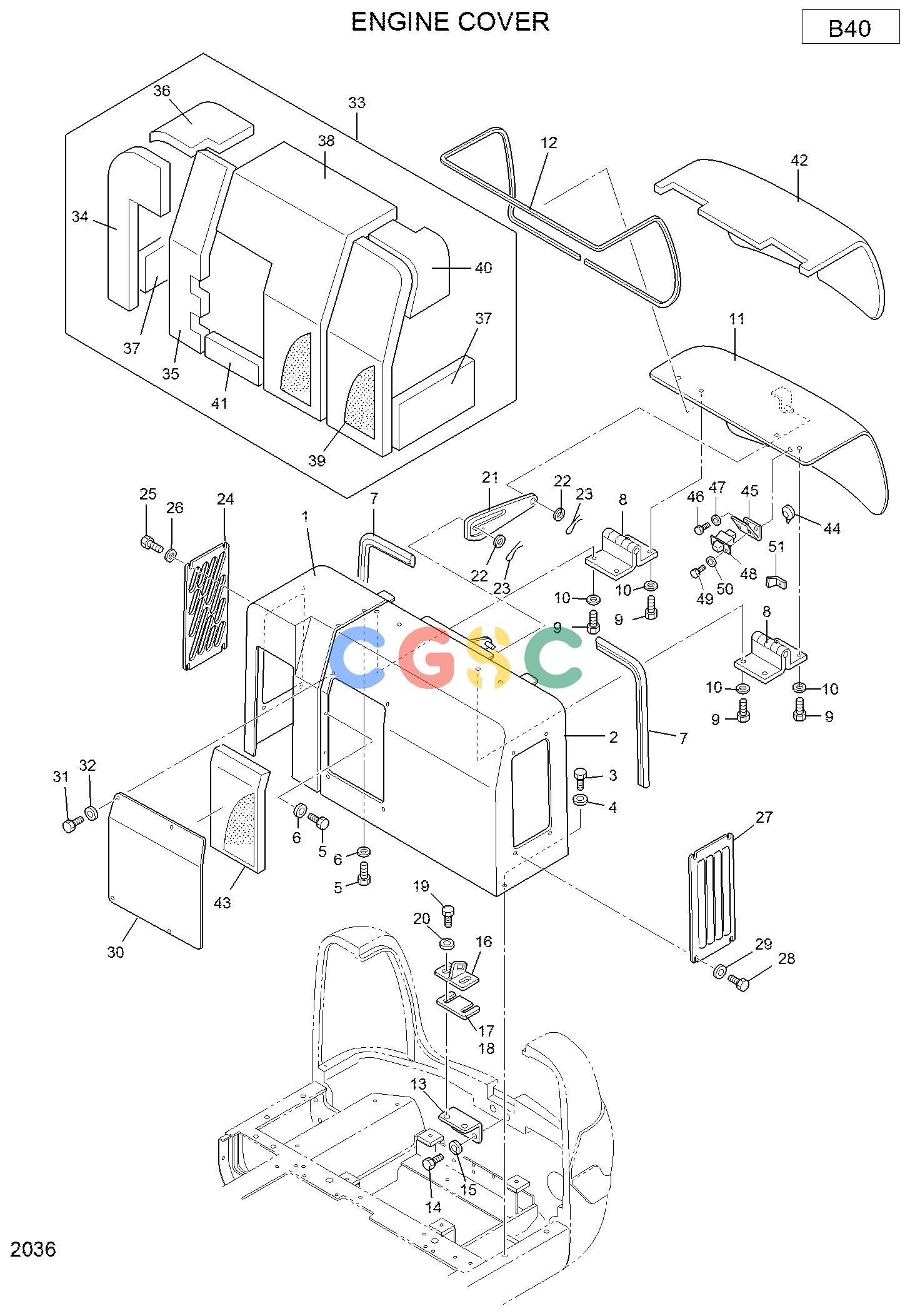

现代零件查询R22-7 ENGINE COVEREPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
996 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-04116
|
[1] |
COVER-ENGINE(A)
|
|
| 2. |
XJDH-04117
|
[1] |
COVER-ENGINE(B)
|
|
| 3. |
XJDH-00072
|
[4] |
BOLT
|
|
| 4. |
XJDH-00280
|
[4] |
WASHER
|
|
| 5. |
XJDH-00057
|
[3] |
BOLT
|
|
| 6. |
XJDH-00278
|
[3] |
WASHER
|
|
| 7. |
XJDH-04118
|
[2] |
STRIP-WEATHER
|
|
| 8. |
XJDH-04119
|
[2] |
HINGE
|
|
| 9. |
XJDH-00057
|
[8] |
BOLT
|
|
| 10. |
XJDH-00278
|
[8] |
WASHER
|
|
| 11. |
XJDH-04123
|
[1] |
COVER-ENGINE(C)
|
|
| 12. |
XJDH-04124
|
[1] |
STRIP-WEATHER
|
|
| 13. |
XJDH-04125
|
[1] |
BRACKET
|
|
| 14. |
XJDH-00032
|
[2] |
BOLT
|
|
| 15. |
XJDH-00262
|
[2] |
WASHER
|
|
| 16. |
XJDH-01788
|
[1] |
STRIKER
|
|
| 17. |
XJDH-01406
|
[AR] |
SHIM(2.3T)
|
|
| 18. |
XJDH-01407
|
[AR] |
SHIM(1.2T)
|
|
| 19. |
XJDH-00037
|
[2] |
BOLT
|
|
| 20. |
XJDH-00262
|
[2] |
WASHER
|
|
| 21. |
XJDH-01180
|
[1] |
GUIDE-SLIDE
|
|
| 22. |
XJDH-04046
|
[2] |
WASHER
|
|
| 23. |
XJDH-00296
|
[2] |
PIN-SPLIT
|
|
| 24. |
XJDH-04126
|
[1] |
PLATE(R)
|
|
| 25. |
XJDH-00032
|
[4] |
BOLT
|
|
| 26. |
XJDH-00276
|
[4] |
WASHER
|
|
| 27. |
XJDH-04127
|
[1] |
PLATE(L)
|
|
| 28. |
XJDH-00032
|
[4] |
BOLT
|
|
| 29. |
XJDH-00276
|
[4] |
WASHER
|
|
| 30. |
XJDH-04128
|
[1] |
COVER-FRONT
|
|
| 31. |
XJDH-00032
|
[4] |
BOLT
|
|
| 32. |
XJDH-00276
|
[4] |
WASHER
|
|
| 33. |
XJDH-04129
|
[1] |
URETHAN FOAM ASSY
|
|
| 34. |
XJDH-04130
|
[1] |
URETHAN FOAM
|
|
| 35. |
XJDH-04131
|
[1] |
URETHAN FOAM
|
|
| 36. |
XJDH-04132
|
[1] |
URETHAN FOAM
|
|
| 37. |
XJDH-04133
|
[2] |
URETHAN FOAM
|
|
| 38. |
XJDH-04134
|
[1] |
URETHAN FOAM
|
|
| 39. |
XJDH-04135
|
[1] |
URETHAN FOAM
|
|
| 40. |
XJDH-04136
|
[1] |
URETHAN FOAM
|
|
| 41. |
XJDH-04137
|
[1] |
URETHAN FOAM
|
|
| 42. |
XJDH-04138
|
[1] |
URETHAN FOAM
|
|
| 43. |
XJDH-04139
|
[1] |
URETHAN FOAM
|
|
| 44. |
XJDH-02845
|
[1] |
KEY ASSY
|
|
| 45. |
XJDH-01811
|
[1] |
BRACKET
|
|
| 46. |
XJDH-00021
|
[2] |
BOLT
|
|
| 47. |
XJDH-00274
|
[2] |
WASHER
|
|
| 48. |
XJDH-01789
|
[1] |
LOCK ASSY
|
|
| 49. |
XJDH-00021
|
[4] |
BOLT
|
|
| 50. |
XJDH-00274
|
[4] |
WASHER
|
|
| 51. |
XJDH-01810
|
[1] |
PLATE
|
|
