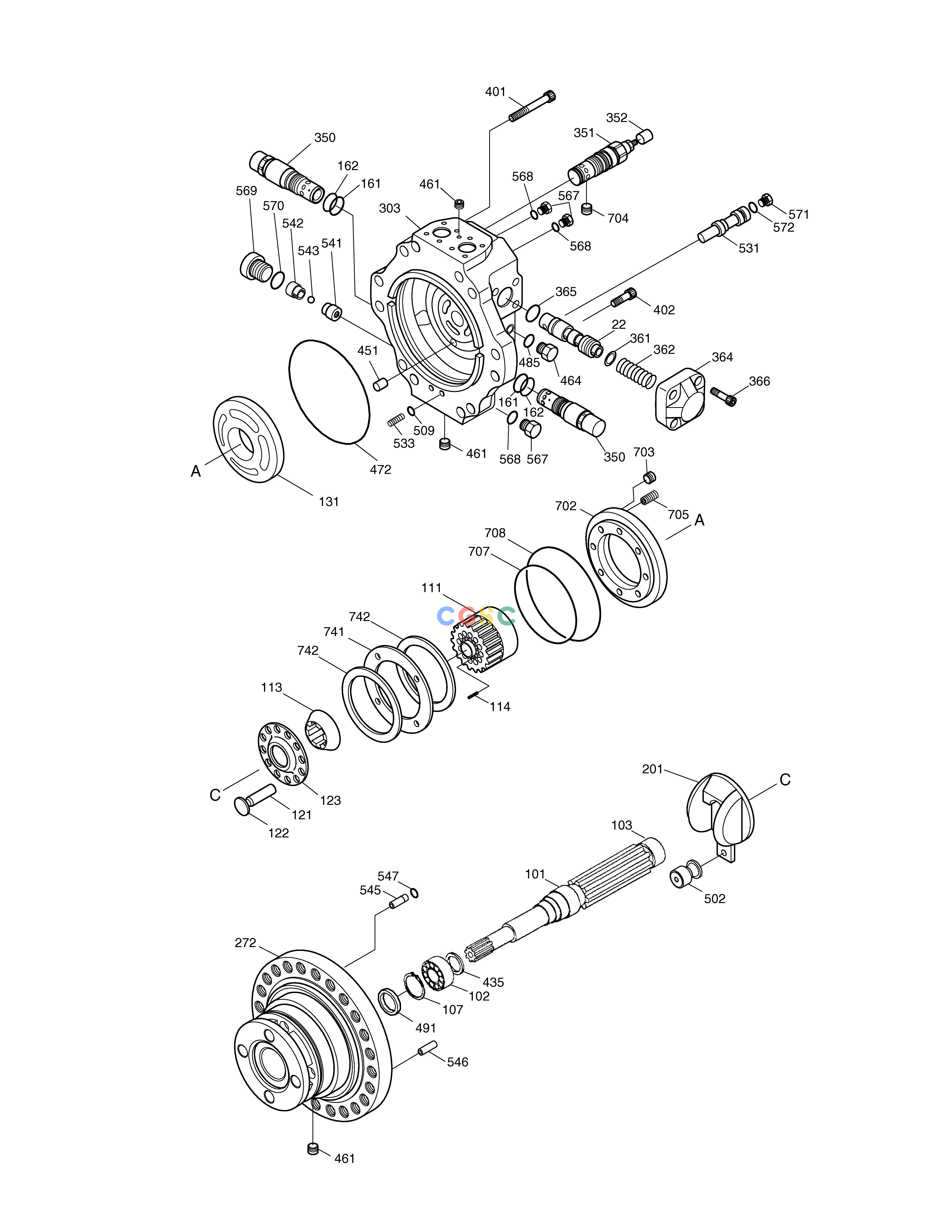

斗山零件查询TRAVEL MOTOR SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
607 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
3321190-0072
|
[1] |
CYLINDER ASS'Y
|
|
| . |
3324530-0121
|
[1] |
PISTON ASS'Y
|
|
| . |
3321130-0032
|
[1] |
VALVE CASING A ASS'Y
|
|
| . |
3324530-0099
|
[1] |
TILTING PISTON ASS'Y
|
|
| -. |
718720
|
[1] |
TRAVEL MOTOR
|
|
| 101. |
3324250-0299
|
[1] |
SHAFT;DRIVE
|
|
| 102. |
PNUP2210
|
[1] |
BEARING;ROLLER
|
|
| 103. |
PNK365528
|
[1] |
BEARING;NEEDLE
|
|
| 107. |
OSR50
|
[1] |
RING;SNAP
|
|
| 111. |
3324370-0204
|
[1] |
CYLINDER
|
|
| 113. |
3724610-0025
|
[1] |
BUSH
|
|
| 114. |
2953802061
|
[9] |
SPRING;CYLINDER
|
|
| 121. |
371A00AA-121
|
[9] |
PISTON
|
|
| 122. |
3743700378
|
[9] |
SHOE
|
113352B
|
| 123. |
3724110-0005
|
[1] |
SET;PLATE
|
|
| 131. |
3724710-0021
|
[1] |
PLATE;VALVE
|
|
| 161. |
OORBG30
|
[2] |
O-RING
|
220018
|
| 162. |
OT2BG30
|
[2] |
RING;BACK UP
|
200034
|
| 201. |
3324150-0096
|
[1] |
PLATE
|
|
| 22. |
VZ40103067
|
[1] |
SUB ASS'Y;COUNTER BALANCE SPOOL
|
|
| 272. |
3323190-0037
|
[1] |
CASING B
|
|
| 303. |
3323230-0109
|
[1] |
CASING A
|
|
| 350. |
V8911248179
|
[2] |
RELIEF VALVE ASS'Y
|
|
| 351. |
V9511178128
|
[1] |
REDUCING VALVE ASS'Y
|
|
| 352. |
VZ991-004
|
[1] |
COVER
|
|
| 361. |
5A250010-3310
|
[2] |
WASHER
|
|
| 362. |
3350800152
|
[2] |
SPRING;COUNTER BALANCE
|
|
| 364. |
3350800150
|
[2] |
COVER;COUNTER BALANCE
|
|
| 365. |
OORBG45
|
[2] |
O-RING G45
|
|
| 366. |
OSBM1245
|
[8] |
BOLT;SOCKET M12X1.75X45
|
|
| 401. |
OSBM20100
|
[2] |
BOLT;SOCKET M20X2.5X100
|
|
| 402. |
OSBM2050
|
[4] |
SCREW;HEX.
|
|
| 435. |
ORR90
|
[1] |
RING;SNAP
|
|
| 451. |
PJR1014
|
[1] |
PIN;VALVE PLATE
|
113375
|
| 461. |
PBP116-2403
|
[13] |
PLUG
|
|
| 464. |
OVP12
|
[2] |
PLUG
|
|
| 472. |
OORWG47
|
[1] |
O-RING
|
|
| 485. |
OORBP18
|
[2] |
O-RING
|
220015
|
| 491. |
PTCV48V
|
[1] |
SEAL;OIL
|
|
| 502. |
3324530-0098
|
[1] |
SHOE;TILTING
|
|
| 503. |
3324350-0011
|
[1] |
PISTON;TILTING
|
|
| 504. |
3324760-0008
|
[2] |
BALL;PIVOT
|
|
| 509. |
OORBP16
|
[1] |
O-RING P16
|
201706
|
| 531. |
3303320-1209
|
[1] |
SPOOL;TILTING
|
|
| 533. |
3350800154
|
[1] |
SPRING;TILTING
|
|
| 541. |
3333180-0125
|
[1] |
SEAT 2A
|
|
| 542. |
2933260-0018
|
[1] |
STOPPER
|
|
| 543. |
ODW732
|
[1] |
BALL;STEEL
|
200166
|
| 545. |
OTRS116A15
|
[1] |
ORIFICE
|
|
| 546. |
OTRS116A10
|
[1] |
ORIFICE
|
|
| 547. |
OORBP10
|
[2] |
O-RING P10
|
|
| 564. |
OBP14
|
[2] |
PLUG
|
206699
|
| 567. |
OVP14
|
[4] |
PLUG
|
108844
|
| 568. |
OORBP11
|
[4] |
O-RING
|
201689
|
| 569. |
OROH14
|
[2] |
PLUG
|
|
| 570. |
OORBP11
|
[2] |
O-RING
|
201689
|
| 571. |
OROH38
|
[1] |
PLUG
|
|
| 572. |
OORBP14
|
[1] |
O-RING P14
|
201700
|
| 702. |
3324510-0016
|
[1] |
PISTON;BRAKE
|
|
| 703. |
OTRM4406
|
[1] |
ORIFICE
|
|
| 704. |
OTRM5510
|
[1] |
ORIFICE
|
|
| 705. |
3753700453
|
[14] |
SPRING;BRAKE
|
211953
|
| 707. |
OORWG44
|
[1] |
O-RING
|
212009
|
| 708. |
OORWG49
|
[1] |
O-RING
|
|
| 741. |
3743700413
|
[3] |
PLATE;SEPARATOR
|
|
| 742. |
3743700449
|
[2] |
PLATE;FRICTION
|
|
