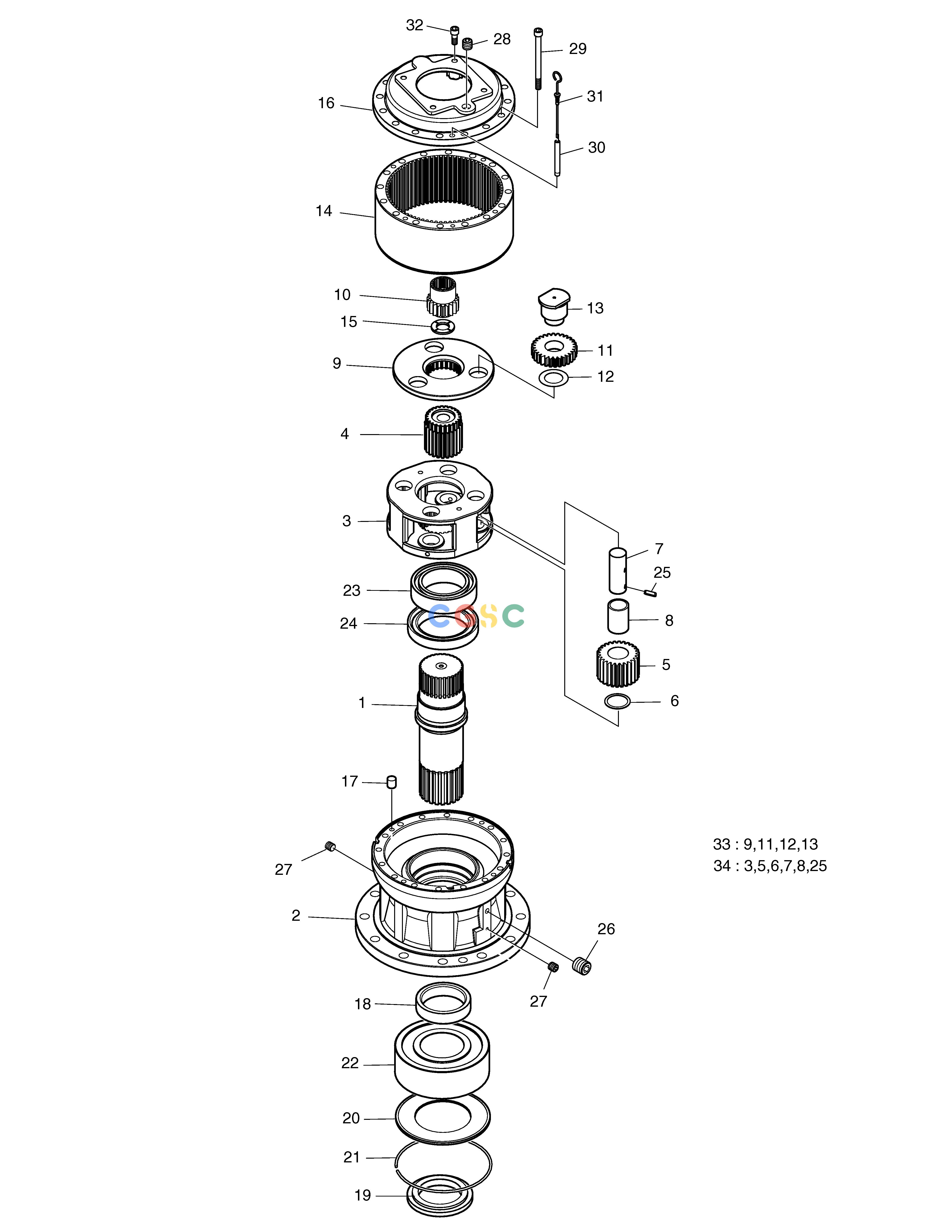

斗山零件查询SWING REDUCTION GEAR SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-9279
|
[1] |
GEAR;REDUCTION
|
2401-9279A
|
| -. |
2401-9279A
|
[1] |
GEAR;REDUCTION
|
404-00094
|
| 1. |
DS-32-01
|
[1] |
SHAFT
|
|
| 10. |
DS-32-10
|
[1] |
GEAR;SUN NO.1
|
|
| 11. |
DS-32-11
|
[3] |
GEAR;PLANETARY NO.1
|
|
| 12. |
DS-32-12
|
[3] |
PLATE;SIDE NO.1
|
|
| 13. |
DS-32-13
|
[3] |
PIN ASS'Y
|
|
| 14. |
DS-32-14
|
[1] |
GEAR;RING
|
|
| 15. |
DS-32-15
|
[1] |
PLATE;THRUST
|
|
| 16. |
DS-32-16
|
[1] |
COVER
|
|
| 17. |
DS-32-17
|
[4] |
PIN;LOCK
|
|
| 18. |
DS-32-18
|
[1] |
SPACER
|
|
| 19. |
DS-32-19
|
[1] |
COLLAR
|
|
| 2. |
DS-32-02
|
[1] |
CASE;GEAR
|
|
| 20. |
DS-32-20
|
[1] |
PLATE
|
|
| 21. |
DS-32-21
|
[1] |
RING;LOCK
|
|
| 22. |
DS-32-22
|
[1] |
BEARING;SPHERICAL ROLLER
|
|
| 23. |
DS-32-23
|
[1] |
BEARING;SPHERICAL ROLLER
|
|
| 24. |
DS-32-24
|
[1] |
SEAL;OIL
|
|
| 25. |
DS-32-25
|
[4] |
PIN;SPRING
|
|
| 26. |
DS-32-26
|
[1] |
PLUG
|
|
| 27. |
DS-32-27
|
[2] |
PLUG
|
|
| 28. |
DS-32-28
|
[1] |
PLUG
|
|
| 29. |
DS-32-29
|
[16] |
BOLT;SOCKET M16X180
|
|
| 3. |
DS-32-03
|
[1] |
CARRIER NO.2
|
|
| 30. |
DS-32-30
|
[1] |
PIPE
|
|
| 31. |
DS-32-31
|
[1] |
BAR;LEVEL
|
|
| 32. |
DS-32-32
|
[4] |
BOLT;SOCKET M16X40
|
|
| 33. |
DS-32-00-01
|
[1] |
CARRIER NO.1 ASS'Y
|
|
| 34. |
DS-32-00-02
|
[1] |
CARRIER NO.2 ASS'Y
|
|
| 4. |
DS-32-04
|
[1] |
GEAR;SUN NO.2
|
|
| 5. |
DS-32-05
|
[4] |
GEAR;PLANETARY NO.2
|
|
| 6. |
DS-32-06
|
[4] |
PLATE;SIDE NO.2
|
|
| 7. |
DS-32-07
|
[4] |
SHAFT FOR PIN NO.2
|
|
| 8. |
DS-32-08
|
[4] |
BUSH NO.2
|
|
| 9. |
DS-32-09
|
[1] |
CARRIER NO.1
|
|
