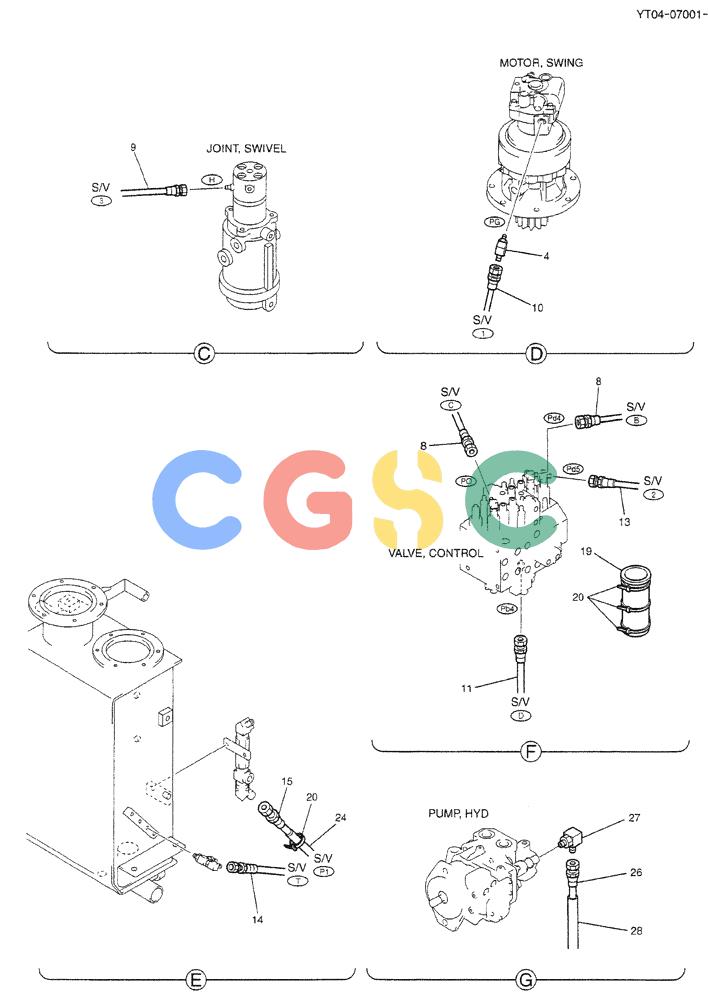

| . . | YT64H00038F4 | [1] | CONTROL LINES, VALVE | |
| 1. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 2. | ZH32X04000 | [7] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 3. | HH25R06006GE | [1] | ELEC CONNECTOR | KOB |
| 4. | ZH42X04000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| 5. | ZS18C10070 | [2] | SCREW,Hex, M10 x 70mm | KOBM10x1.50x70mm |
| 6. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 7. | 2420R537D045 | [1] | HOSE,9.60mm ID x 450mm L | KOB Superseded by part number: HX21E06045DX |
| 8. | 2420R349D330 | [2] | HYDRAULIC HOSE,6.35 mm ID x 3300.00 mm | KOB Superseded by part number: HX21E04330DX |
| 9. | 2420R349D135 | [1] | HOSE,6.35mm ID x 1350mm L | KOB |
| 10. | 2420R349D200 | [1] | HOSE ASSY. | KOB2000mm Long (78-3/4 in) |
| 11. | 2420R349D250 | [1] | HOSE,2500.00 mm | KOB |
| 12. | YT64H01029D6 | [1] | RUBBER | KOB |
| 13. | 2420R349D320 | [1] | HOSE ASSY. | KOB3200mm Long (126 in) |
| 14. | 2444R1119D320 | [1] | HOSE | KOB3200mm Long (126 in) |
| 15. | ZX23M06260 | [1] | HOSE | KOB2600mm Long (102-23/64 in) |
| 17. | YT64H01029D5 | [1] | RUBBER | KOB |
| 18. | YT64H01027D1 | [1] | RUBBER | KOB |
| 19. | YN64H01018P1 | [2] | GROMMET | KOB |
| 20. | PY01P01043D6 | [9] | CABLE TIE,4.80mm W x 383mm L | KOBWire Ties -- 368mm Long |
| 22. | ZH42X06000 | [2] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB45° -- (Incls. O-Ring 237-6006) |
| 23. | YT64H01029D2 | [1] | RUBBER | KOB |
| 24. | PU13E01010D9 | [1] | TUBE | KOBID 15.2 x OD 19.5 x 300mm Long |
| 25. | 2420Z2185 | [1] | GROMMET | KOB |
| 26. | 2420R349D370 | [1] | HOSE,3700.00 mm | KOB Superseded by part number: HX21E04370DX |
| 27. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) |
| 28. | PU13E01010DP | [1] | TUBE | KOB |
| 30. | YT35V00018F1 | [1] | SOLENOID VALVE | KOBASSY |
