神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK70SR-1E/SK70SR-1ES ASN YT04-07001 (9/04-) (01-038) - CONTROL LINES, REMOTE (HAND CONTROL, ROTARY, EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
647 次

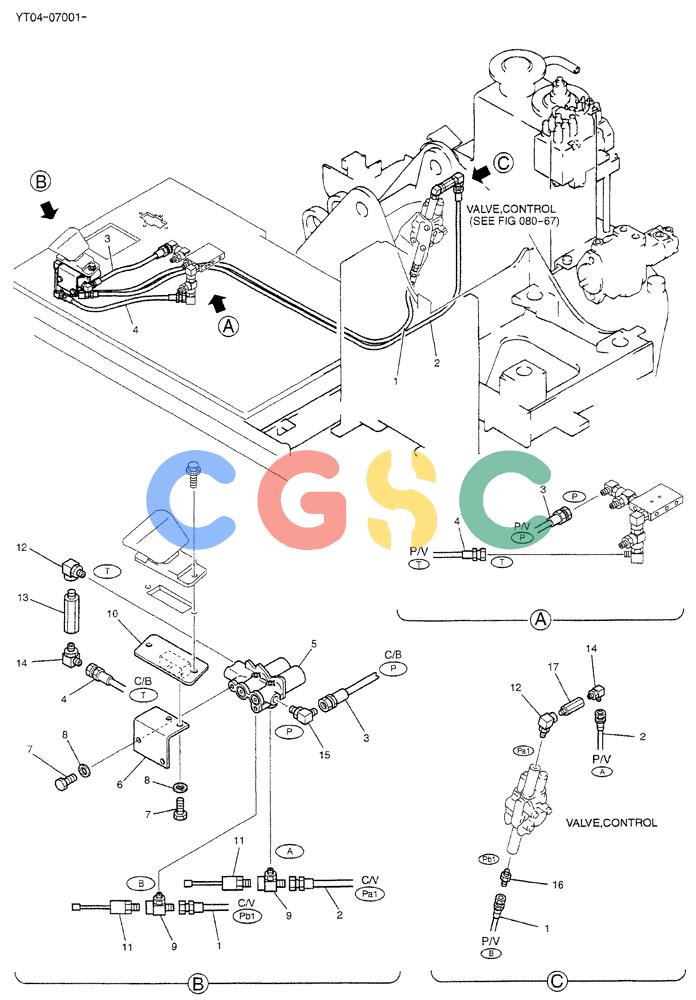

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT68H00040F1 | [1] | CONTROL LINES, REMOTE | |
| 1. | 2420R349D200 | [1] | HOSE ASSY. | KOB2000mm Long (78-3/4 in) |
| 2. | 2420R349D230 | [1] | HOSE ASSY. | KOB2300mm Long (90-1/2 in) |
| 3. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| 4. | 2444R1120D052 | [1] | FLEXIBLE HOSE | KOB520mm Long (20-15/32 in) Superseded by part number: 2444R1120D055 |
| 5. | LC35V00004F2 | [1] | SOLENOID VALVE | KOB |
| 6. | YT68H01018P1 | [1] | BRACKET | KOB |
| 7. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 8. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 9. | 2444Z3833 | [2] | ELBOW | KOB |
| 10. | YT68H01017P1 | [1] | SUPPORT | KOB |
| 11. | GB50S00049F2 | [2] | SWITCH | KOBPressure (Low Pressure) |
| 12. | 2444Z2894 | [2] | 90 ELBOW | KOBElbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 13. | 2444Z4101 | [1] | HYD CONNECTOR | KOB1/4"PFx1/4"PFx63mm Long (Incls. O-Ring ZD12P01100) |
| 14. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 15. | HH35X04004G3 | [1] | 90 ELBOW | KOB90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 16. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 17. | 2444T2524 | [1] | HYD CONNECTOR | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
