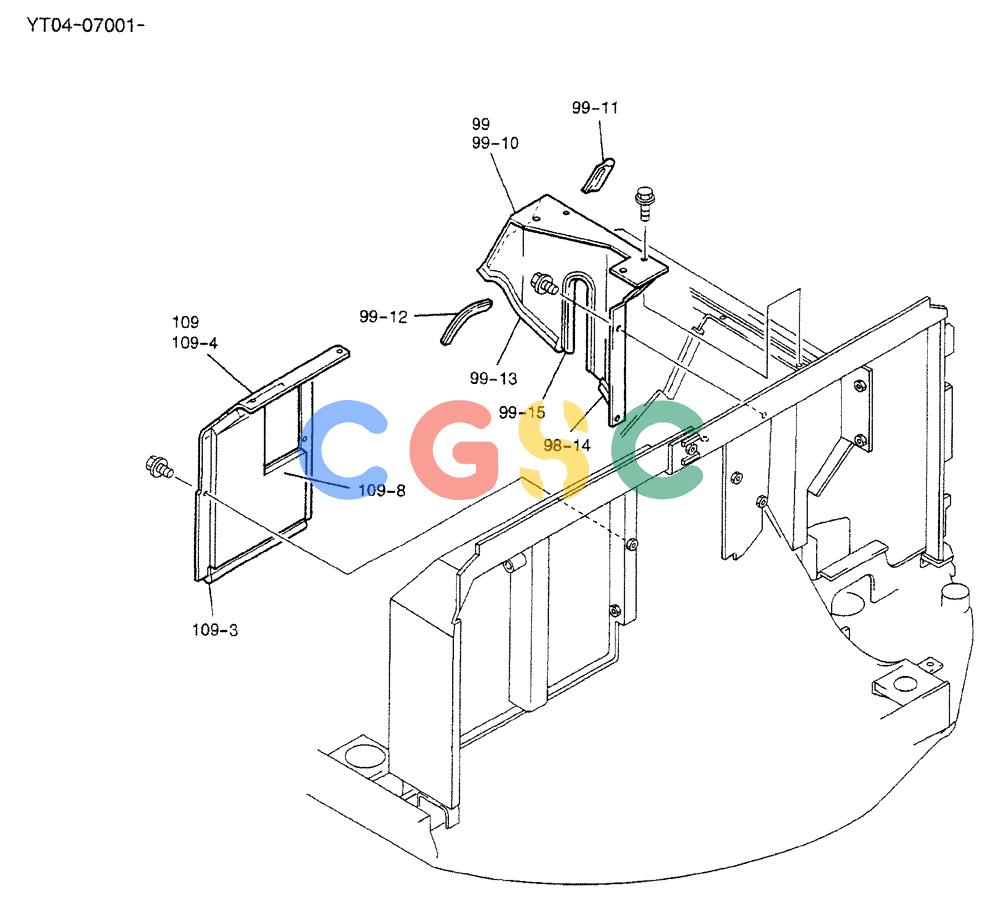

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK70SR-1E/SK70SR-1ES ASN YT04-07001 (9/04-) (01-042) - GUARD INSTAL (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
456 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT21C00010FB | [1] | GUARD INSTAL | |
| 99. | YT21C01191F5 | [1] | GUARD ASSY | |
| 99-10. | YT21C01205P2 | [1] | GUARD | KOB |
| 99-11. | YT21C01159D1 | [1] | WEATHERSTRIP | KOB |
| 99-12. | YT21C01037D2 | [1] | TRIM PANEL | KOB235mm Long (9-1/4 in) |
| 99-13. | YT21C01163DC | [1] | WEATHERSTRIP | KOB |
| 99-14. | YT21C01163DG | [1] | WEATHERSEAL STRIP | KOB |
| 99-15. | YT21C01163D8 | [1] | WEATHERSTRIP | KOB |
| 109. | YT21C01275F4 | [1] | GUARD | KOBASSY |
| 109-3. | YT21C01039D7 | [1] | WEATHERSTRIP | KOB330mm Long (13 in) |
| 109-4. | YT21C01306P2 | [1] | GUARD | KOB |
| 109-8. | YT21C01485P1 | [1] | INSULATING PANEL | KOB |
