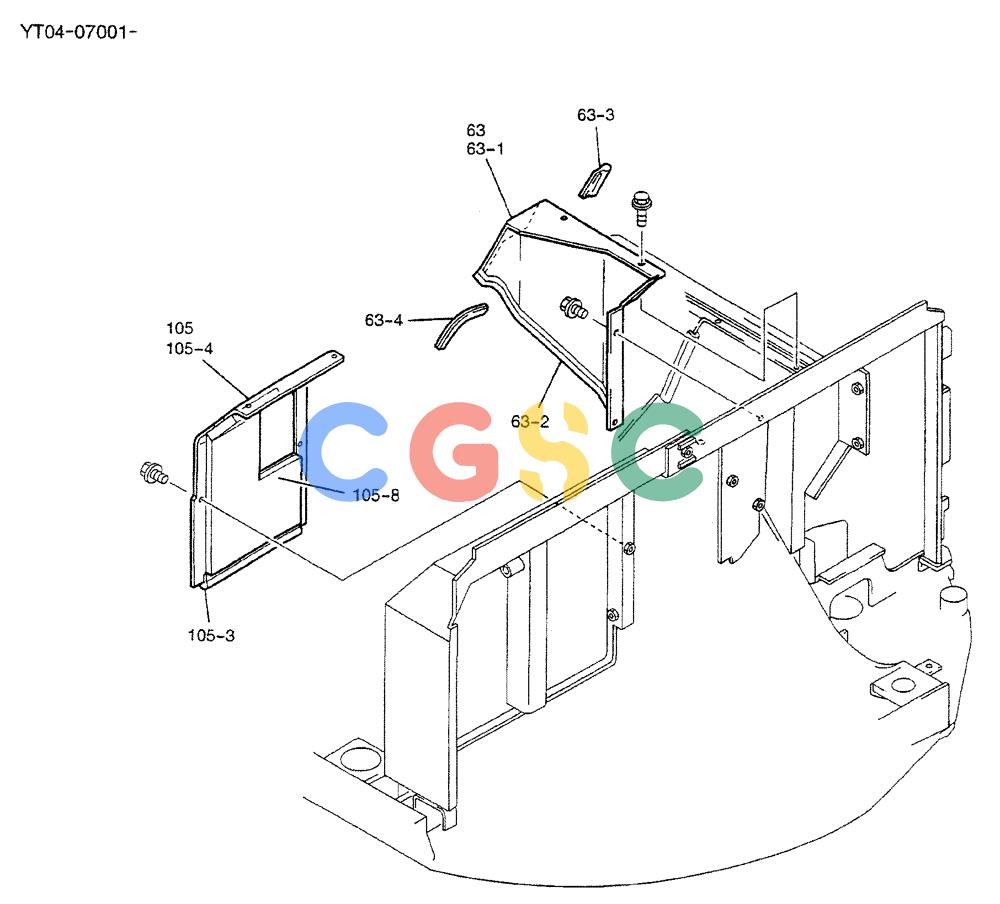

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK70SR-1E/SK70SR-1ES ASN YT04-07001 (9/04-) (01-041) - GUARD INSTAL (NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
859 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT21C00007FA | [1] | GUARD INSTAL | |
| 63. | YT21C01171F1 | [1] | GUARD | KOBASSY |
| 63-1. | YT21C01170P1 | [1] | GUARD | KOB |
| 63-2. | YT21C01163D2 | [1] | WEATHERSTRIP | KOB |
| 63-3. | YT21C01159D1 | [1] | WEATHERSTRIP | KOB |
| 63-4. | YT21C01037D2 | [1] | TRIM PANEL | KOB235mm Long (9-1/4 in) |
| 105. | YT21C01275F4 | [1] | GUARD | KOBASSY |
| 105-3. | YT21C01039D7 | [1] | WEATHERSTRIP | KOB330mm Long (13 in) |
| 105-4. | YT21C01306P2 | [1] | GUARD | KOB |
| 105-8. | YT21C01485P1 | [1] | INSULATING PANEL | KOB |
