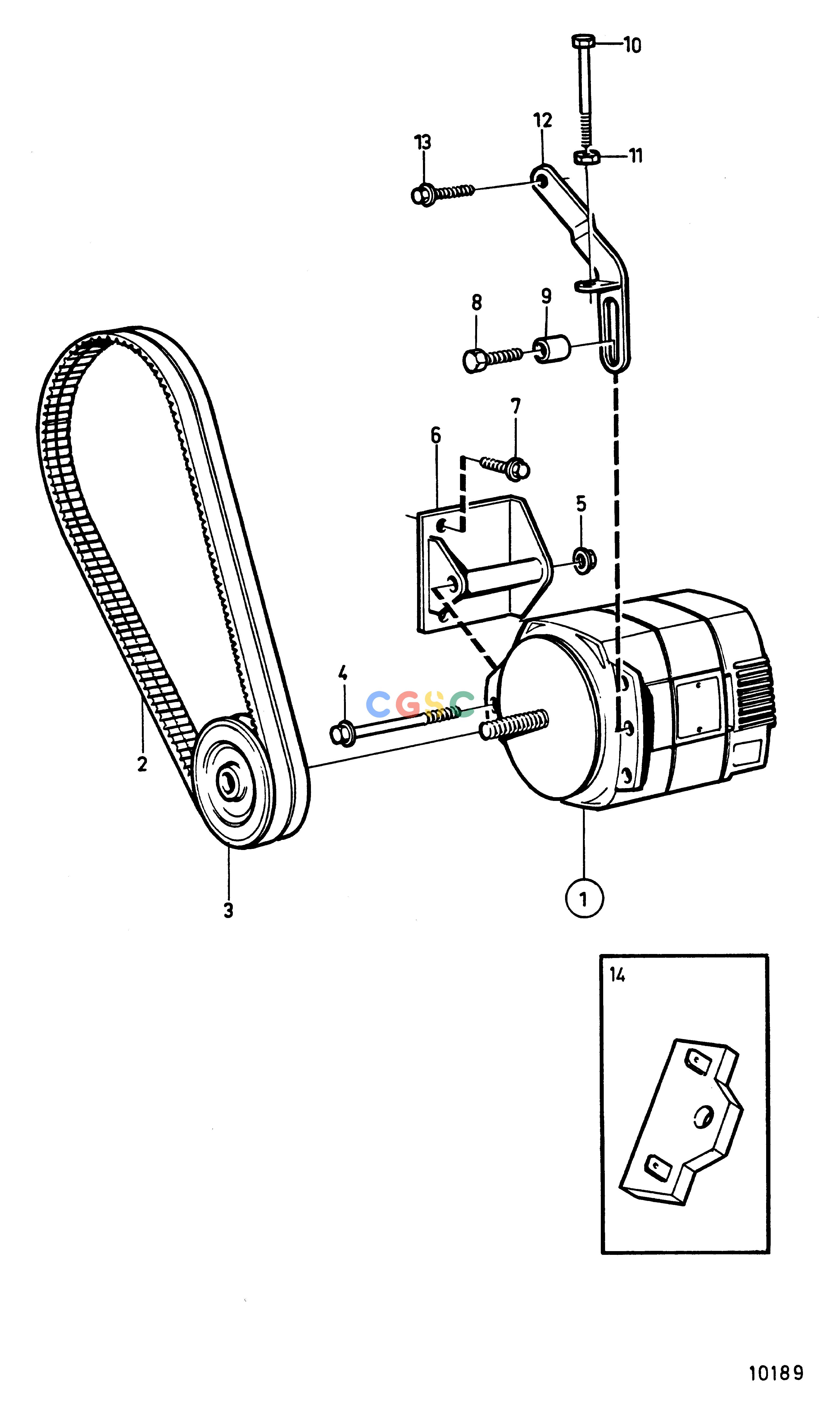

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemExtra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
898 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
849748
|
[1] |
Alternator
|
For 24V electric system., 28V 100A
|
| 1. |
3803499
|
[1] |
Alternator, exch
|
For 24V electric system., 28V 100A
|
| 1. |
|
|
|
|
| 2. |
967111
|
[2] |
V-belt
|
|
| 3. |
862542
|
[1] |
Pulley, 5''
|
Repl by 866133
|
| 3. |
866133
|
[1] |
Pulley, 4''
|
|
| 4. |
970987
|
[1] |
Hexagon screw
|
|
| 5. |
971096
|
[1] |
Flange nut
|
|
| 6. |
864598
|
[1] |
Bracket
|
|
| 7. |
965191
|
[2] |
Flange screw
|
|
| 8. |
955563
|
[1] |
Hexagon screw
|
|
| 9. |
842406
|
[1] |
Sleeve
|
|
| 10. |
837717
|
[1] |
Screw
|
|
| 11. |
971071
|
[1] |
Hexagon nut
|
|
| 12. |
863401
|
[1] |
Tensioner
|
|
| 13. |
946441
|
[1] |
Flange screw
|
|
| 14. |
863400
|
[1] |
Control resistance
|
|
