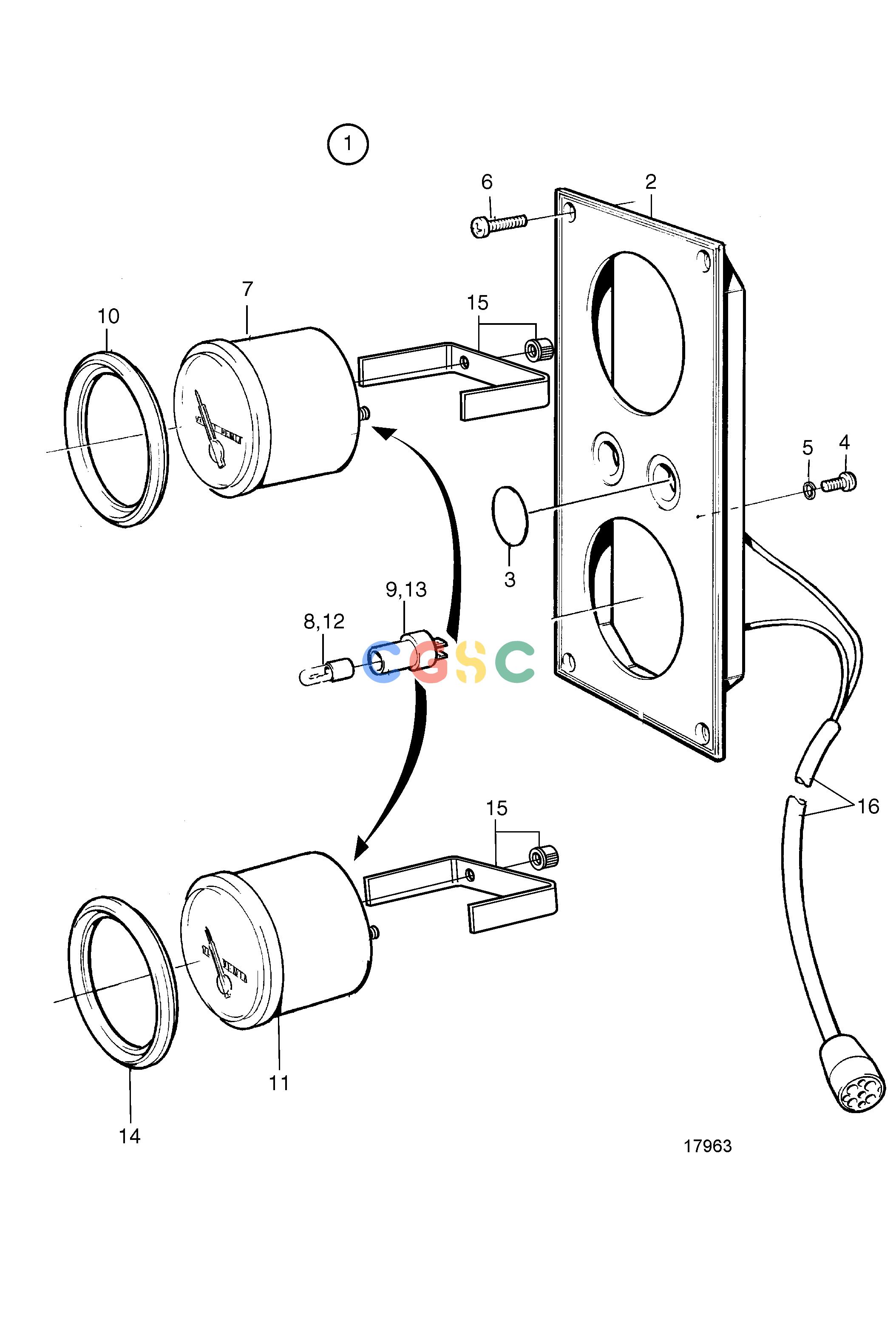

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemExtra Panel 24V, Turbo Press, Oil Press, Reverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
914 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864053
|
[1] |
Instrument panel
|
|
| 2. |
858874
|
[1] |
Instrument panel
|
|
| 3. |
828607
|
[2] |
Cover plate
|
|
| 4. |
949947
|
[1] |
Cross recessed screw
|
|
| 5. |
941904
|
[1] |
Spring washer
|
|
| 6. |
828647
|
[4] |
Screw
|
|
| 7. |
873202
|
[1] |
Oil pressure gauge
|
|
| 8. |
863947
|
[1] |
Bulb
|
Withe bulb 943638 can be mounted in bulb socket 863945., Red, 24V, 1,2W W2x4,6d
|
| 9. |
863945
|
[1] |
Bulb socket
|
|
| 10. |
858643
|
[1] |
Front ring
|
|
| 11. |
873206
|
[1] |
Turbo pressure gauge
|
|
| 12. |
863947
|
[1] |
Bulb
|
Withe bulb 943638 can be mounted in bulb socket 863945., Red, 24V, 1,2W W2x4,6d
|
| 13. |
863945
|
[1] |
Bulb socket
|
|
| 14. |
858643
|
[1] |
Front ring
|
|
| 15. |
873207
|
[2] |
Brace kit
|
|
| 16. |
7746600_157
|
|
Cable block, electrical materials
|
|
