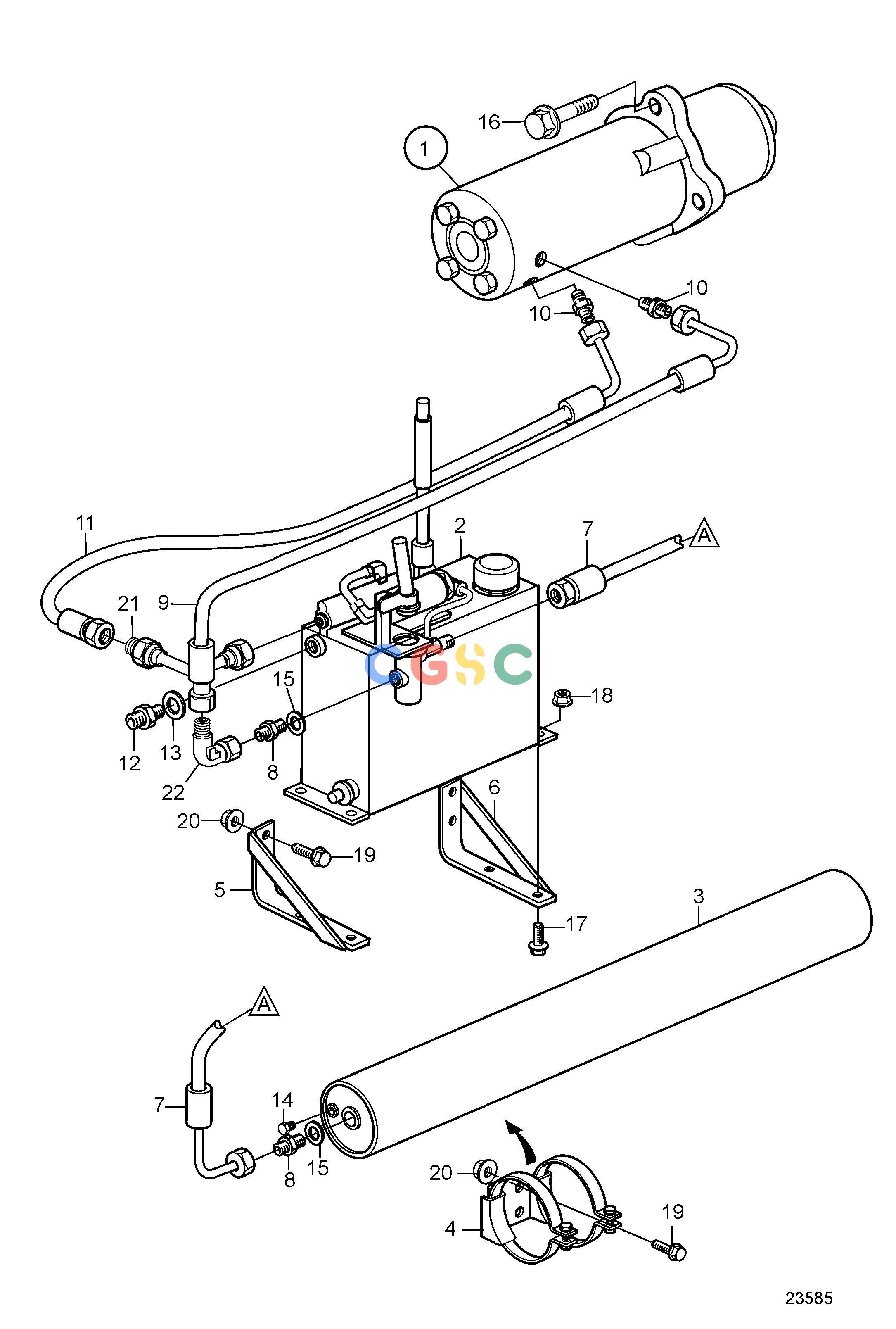

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemHydraulic StarterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
483 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3830514
|
[1] |
Hydraulic motor
|
|
| 1. |
|
|
|
|
| 2. |
3829540
|
[1] |
Hydraulic fluid tank
|
|
| 3. |
3829541
|
[1] |
Hydraulic equipment
|
Accumulator
|
| 4. |
3829542
|
[2] |
Bracket
|
|
| 5. |
3828379
|
[1] |
Bracket, left
|
|
| 6. |
3828380
|
[1] |
Bracket, right
|
|
| 7. |
3829545
|
[1] |
Hydraulic hose
|
|
| 8. |
957031
|
[2] |
Nipple
|
|
| 9. |
3838353
|
[1] |
Hydraulic hose
|
|
| 10. |
941750
|
[2] |
Nipple
|
|
| 11. |
3838352
|
[1] |
Hydraulic hose
|
|
| 12. |
981303
|
[1] |
Nipple
|
|
| 13. |
977937
|
[1] |
Gasket
|
(944252)
|
| 14. |
963800
|
[1] |
Reduction nipple
|
|
| 15. |
948883
|
[2] |
Gasket
|
|
| 16. |
965225
|
[3] |
Flange screw
|
|
| 17. |
947760
|
[4] |
Flange screw
|
|
| 18. |
948645
|
[4] |
Flange lock nut
|
|
| 19. |
946752
|
[16] |
Flange screw
|
|
| 20. |
971098
|
[16] |
Flange lock nut
|
|
| 21. |
983826
|
[1] |
Elbow nipple
|
|
| 22. |
964016
|
[1] |
Elbow nipple
|
|
