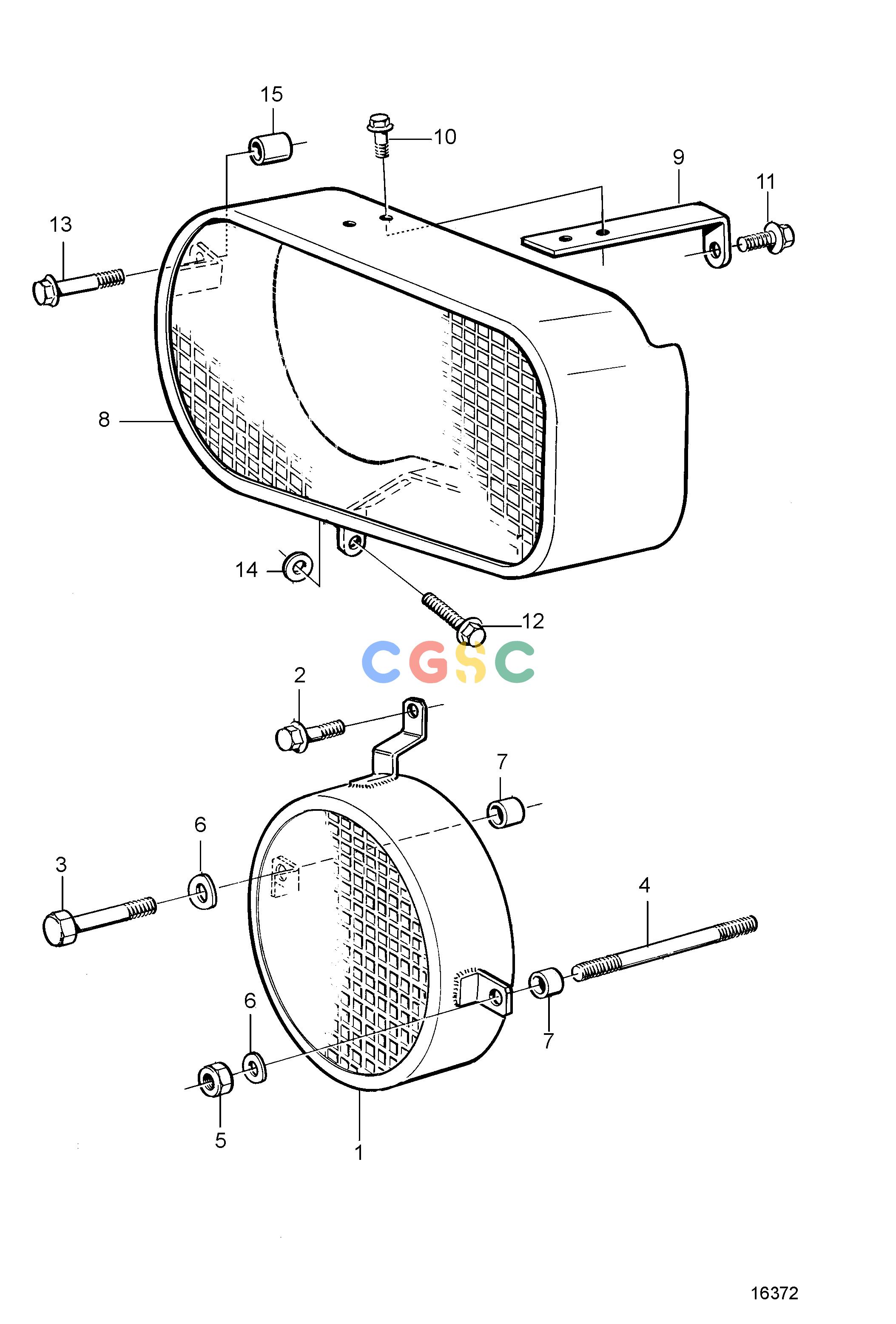

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemGuards for Vibration Damper and AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825916
|
[1] |
Protecting casing, vibration damper
|
Repl by 3827926
|
| 1. |
3827926
|
[1] |
Protecting casing, vibration damper
|
For extra vibration damper.
|
| 2. |
965192
|
[1] |
Flange screw
|
|
| 3. |
971006
|
[1] |
Hexagon screw
|
|
| 4. |
973202
|
[1] |
Stud
|
|
| 5. |
961994
|
[1] |
Hexagon nut
|
|
| 6. |
941911
|
[2] |
Spring washer
|
|
| 7. |
1678297
|
[8] |
Spacer sleeve
|
L=14,2mm
|
| 7. |
823196
|
[2] |
Spacer sleeve
|
L=11mm
|
| 8. |
866804
|
[1] |
Protecting casing, alternator 60A
|
|
| 9. |
866805
|
[1] |
Bracket
|
|
| 10. |
947107
|
[2] |
Flange screw
|
|
| 11. |
946441
|
[1] |
Flange screw
|
|
| 12. |
946817
|
[1] |
Flange screw
|
|
| 13. |
965226
|
[1] |
Flange screw
|
|
| 14. |
955897
|
[1] |
Washer
|
|
| 15. |
830672
|
[1] |
Spacer sleeve
|
Should not be used when clutch casing for power take off is mounted.
|
