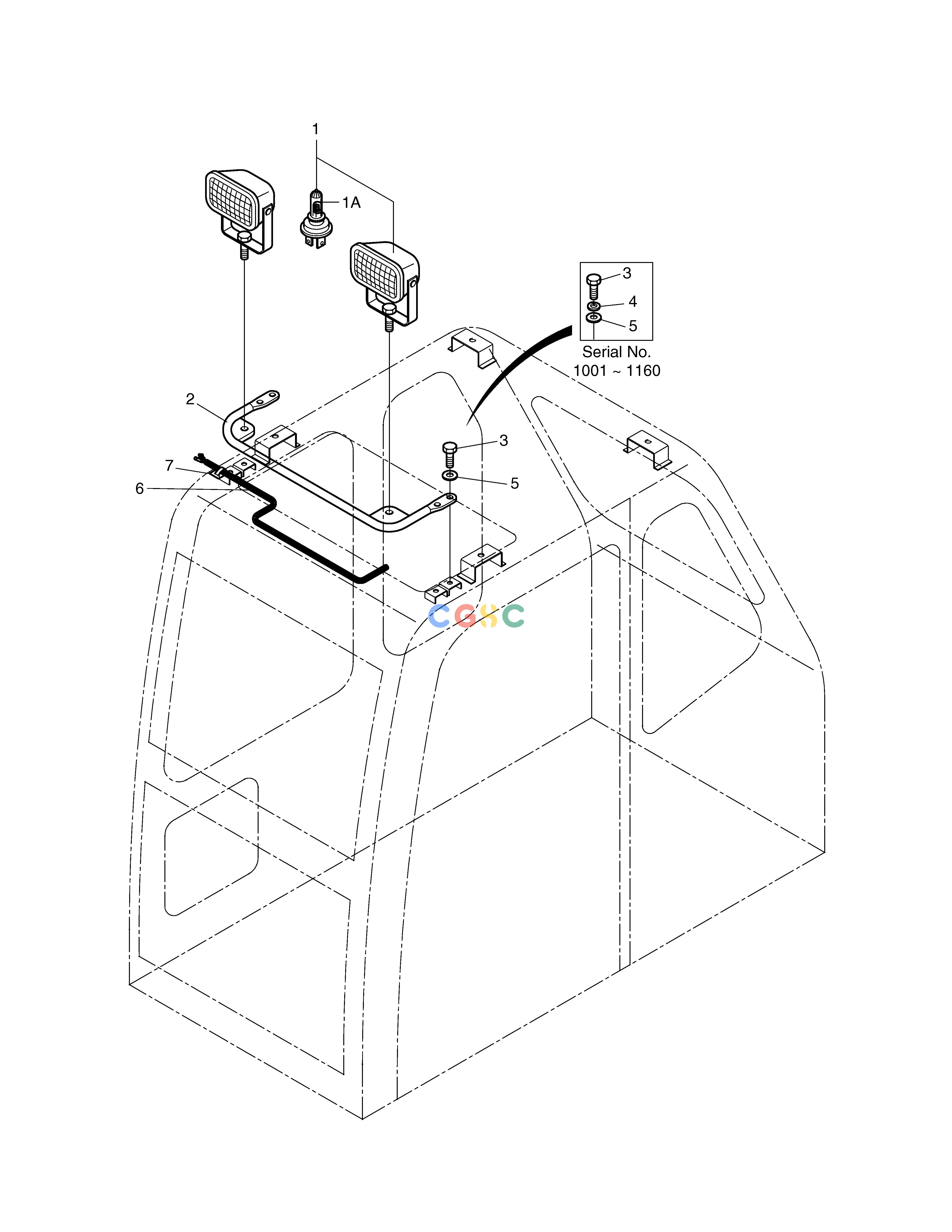

斗山零件查询CABIN LAMP SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2534-1165
|
[-] |
CABIN LAMP ASS'Y
|
|
| -. |
2534-1165A
|
[-] |
CABIN LAMP ASS'Y
|
|
| 1. |
2534-1160
|
[2] |
LAMP;WORKING
|
|
| 1A. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 2. |
2197-1740A
|
[1] |
BRACKET;CABIN LAMP
|
2197-1740B
|
| 2. |
2197-1740B
|
[1] |
BRACKET;CABIN LAMP
|
|
| 3. |
S0512053
|
[4] |
BOLT
|
|
| 3. |
2120-2166D2
|
[4] |
BOLT
|
|
| 4. |
S5102603
|
[4] |
. WASHER
|
|
| 5. |
S5010613
|
[4] |
WASHER
|
|
| 5. |
2114-1898D1
|
[4] |
WASHER
|
|
| 6. |
2530-1611
|
[1] |
HARNESS;CABIN LAMP
|
|
| 7. |
2128-1209D1
|
[1] |
CLAMP;METAL
|
|
