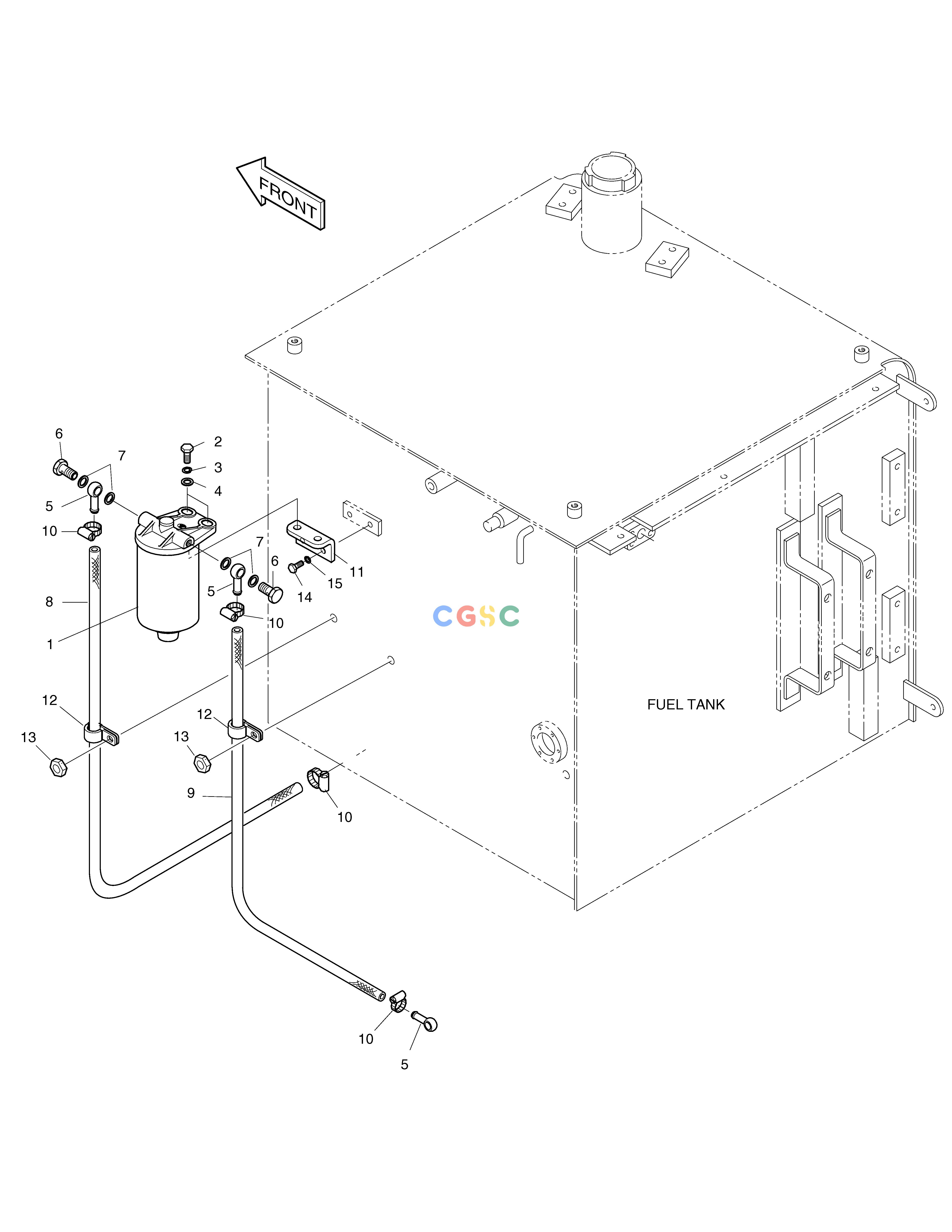

斗山零件查询DOUBLE FUEL FILTER ASS'Y SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
280 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2471-1157
|
[-] |
DOUBLE FUEL FILTER ASS'Y
|
|
| 1. |
2471-9053
|
[1] |
FUEL FILTER ASS'Y
|
|
| 10. |
S8450012
|
[4] |
CLAMP
|
|
| 11. |
2197-2561
|
[1] |
BRACKET
|
|
| 12. |
2124-1509D2
|
[2] |
CLIP
|
|
| 13. |
S4012533
|
[1] |
NUT
|
|
| 13. |
S4012533
|
[2] |
NUT
|
|
| 14. |
S0509053
|
[2] |
. BOLT
|
|
| 15. |
S5102503
|
[2] |
. WASHER
|
|
| 2. |
S0515353
|
[2] |
BOLT M12X1.75X35
|
|
| 3. |
S5102703
|
[2] |
WASHER
|
|
| 4. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 5. |
2181-9015
|
[3] |
PIPE;FUEL
|
|
| 6. |
06.78144-2204
|
[2] |
SCREW;HOLLOW
|
|
| 7. |
S8180221
|
[4] |
RING;SEAL
|
|
| 8. |
2185-1247D31
|
[1] |
HOSE 1200L
|
|
| 9. |
2185-1247D133
|
[1] |
HOSE 3850L
|
|
