斗山零件查询F.O.G.S ASS'Y SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
974 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

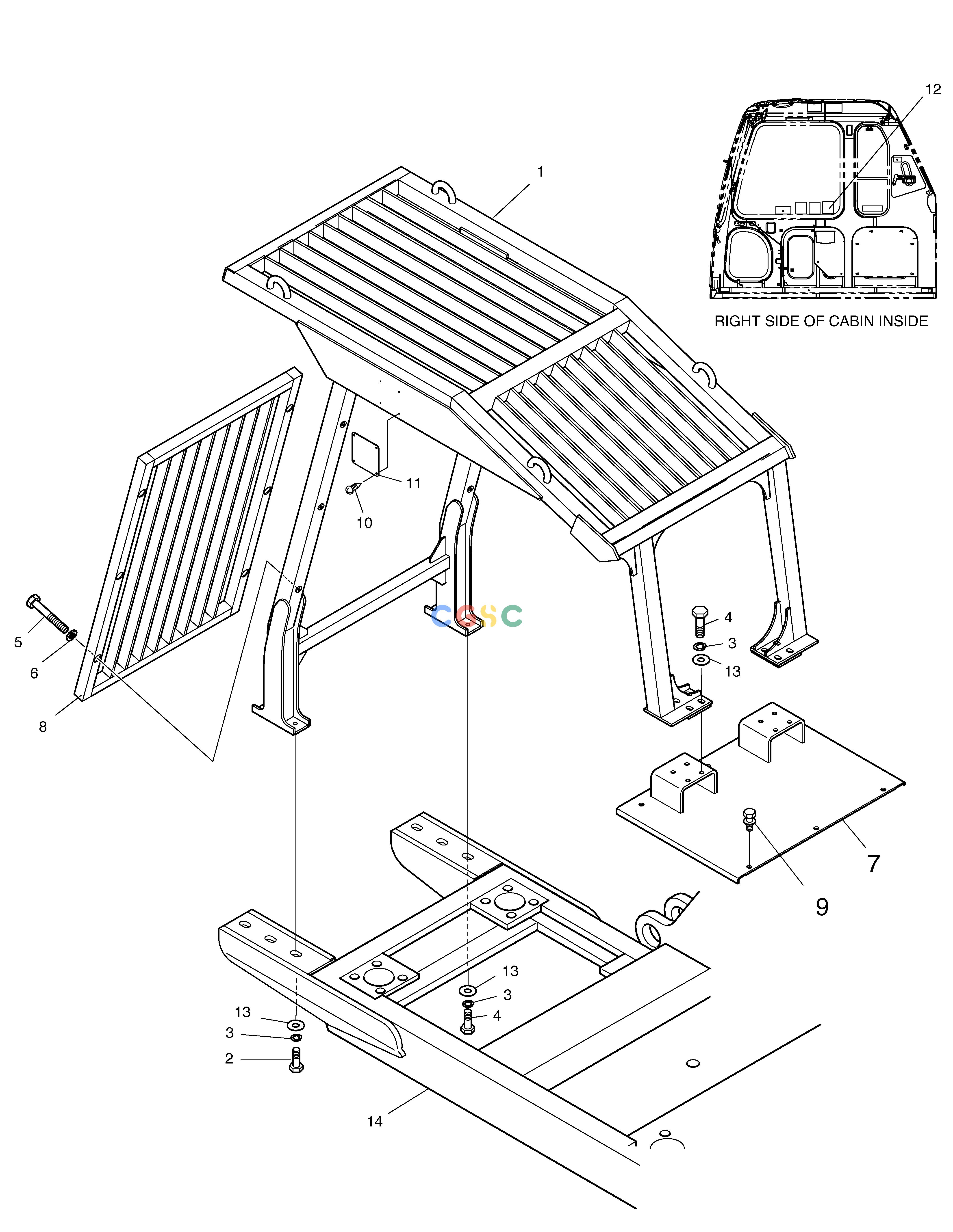

733-00016
|
[1] |
F.O.G.S ASS'Y
|
|
| 1. |
2623-1253B
|
[1] |
GUARD;F.O.P.S
|
|
| 10. |
2122-1002D1
|
[4] |
RIVET
|
|
| 11. |
2190-3502B
|
[1] |
PLATE;NAME
|
|
| 12. |
190-00003
|
[1] |
PLATE;NAME
|
|
| 13. |
2114-1058D39
|
[14] |
WASHER
|
|
| 14. |
603-00235
|
[1] |
FRAME;BED(FOR FOG)
|
|
| 2. |
S0521456
|
[6] |
BOLT M16X2.0X40
|
|
| 3. |
S5102903
|
[14] |
WASHER
|
|
| 4. |
S0521666
|
[8] |
BOLT
|
|
| 5. |
S0558853
|
[6] |
BOLT M10X1.5X65
|
|
| 6. |
S5102603
|
[6] |
. WASHER
|
|
| 7. |
621-01872
|
[1] |
COVER
|
|
| 8. |
2142-1123
|
[1] |
GUARD;FRONT
|
|
| 9. |
2120-2196D3
|
[6] |
BOLT;SET M10X1.5X25
|
|
