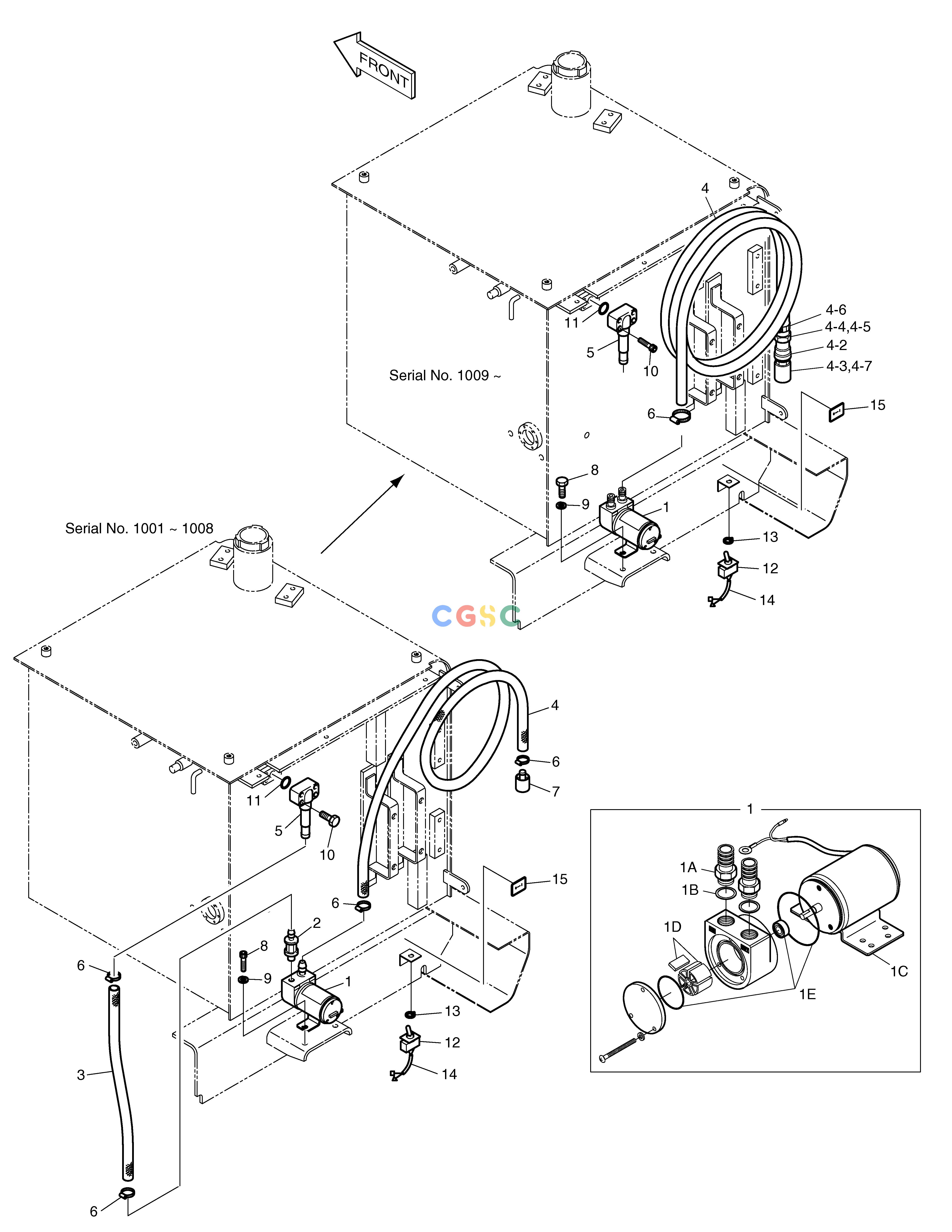

斗山零件查询FUEL FILLER PUMP ASS'Y SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-1253B
|
[-] |
FUEL FILLER PUMP ASS'Y
|
|
| 1. |
2401-9094
|
[1] |
PUMP;FUEL FILLER
|
|
| 1. |
2401-1278
|
[1] |
PUMP;FUEL FILLER
|
2401-1278A
|
| 1. |
2401-1278A
|
[1] |
PUMP;FUEL FILLER
|
|
| 10. |
S2212461
|
[4] |
BOLT;SOCKET
|
S2212466
|
| 10. |
S2212466
|
[4] |
BOLT
|
|
| 11. |
2180-1026D2
|
[1] |
O-RING
|
|
| 12. |
2549-9096
|
[1] |
SWITCH;TOGGLE
|
|
| 13. |
2114-1683
|
[1] |
WASHER;TOGGLE SWITCH
|
|
| 14. |
2530-1548
|
[1] |
HARNESS;SWITCH
|
|
| 15. |
2190-3246
|
[1] |
PLATE;NAME
|
2190-3246A
|
| 15. |
2190-3246A
|
[1] |
PLATE;NAME
|
|
| 1A. |
2181-2755B
|
[2] |
. ADAPTER
|
|
| 1B. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 1C. |
523-00003
|
[1] |
MOTOR;FUEL TRANSFER PUMP
|
|
| 1D. |
407-00001
|
[1] |
. VANE KIT
|
|
| 1E. |
2401-1276KT
|
[1] |
. SEAL KIT
|
|
| 2. |
2420-9321
|
[1] |
CHECK VALVE ASS'Y
|
|
| 3. |
2185-1247D125
|
[1] |
HOSE PF1-630L
|
|
| 3. |
2185-1247D129
|
[1] |
HOSE PF3/4-690L
|
|
| 4. |
2185-1353D3
|
[1] |
HOSE PF1-3000L
|
|
| 4. |
2185-1755D3
|
[1] |
HOSE 4000L
|
185-00167D3
|
| 4. |
185-00167D3
|
[1] |
HOSE
|
|
| 4-2. |
2420-1258
|
[1] |
. VALVE,CHECK
|
|
| 4-3. |
2471-1152
|
[1] |
. STRAINER
|
|
| 4-4. |
2181-2755
|
[1] |
ADAPTER
|
2181-2755B
|
| 4-4. |
2181-2755B
|
[1] |
. ADAPTER
|
|
| 4-5. |
S8180321
|
[1] |
. RING,SEAL
|
|
| 4-6. |
S8450023
|
[1] |
CLAMP
|
|
| 4-7. |
2160-1336
|
[1] |
. CAP,STRAINER
|
|
| 5. |
2140-1377A
|
[1] |
PIPE
|
|
| 6. |
S8450023
|
[4] |
CLAMP
|
|
| 6. |
S8450023
|
[3] |
CLAMP
|
|
| 7. |
2471-1130A
|
[1] |
STRAINER
|
|
| 8. |
S2212261
|
[2] |
SOCKET-HEAD BOLT
|
|
| 8. |
S0508853
|
[4] |
. BOLT
|
|
| 9. |
S5110601
|
[2] |
WASHER;SPRING M10
|
|
| 9. |
S5102503
|
[4] |
. WASHER
|
|
