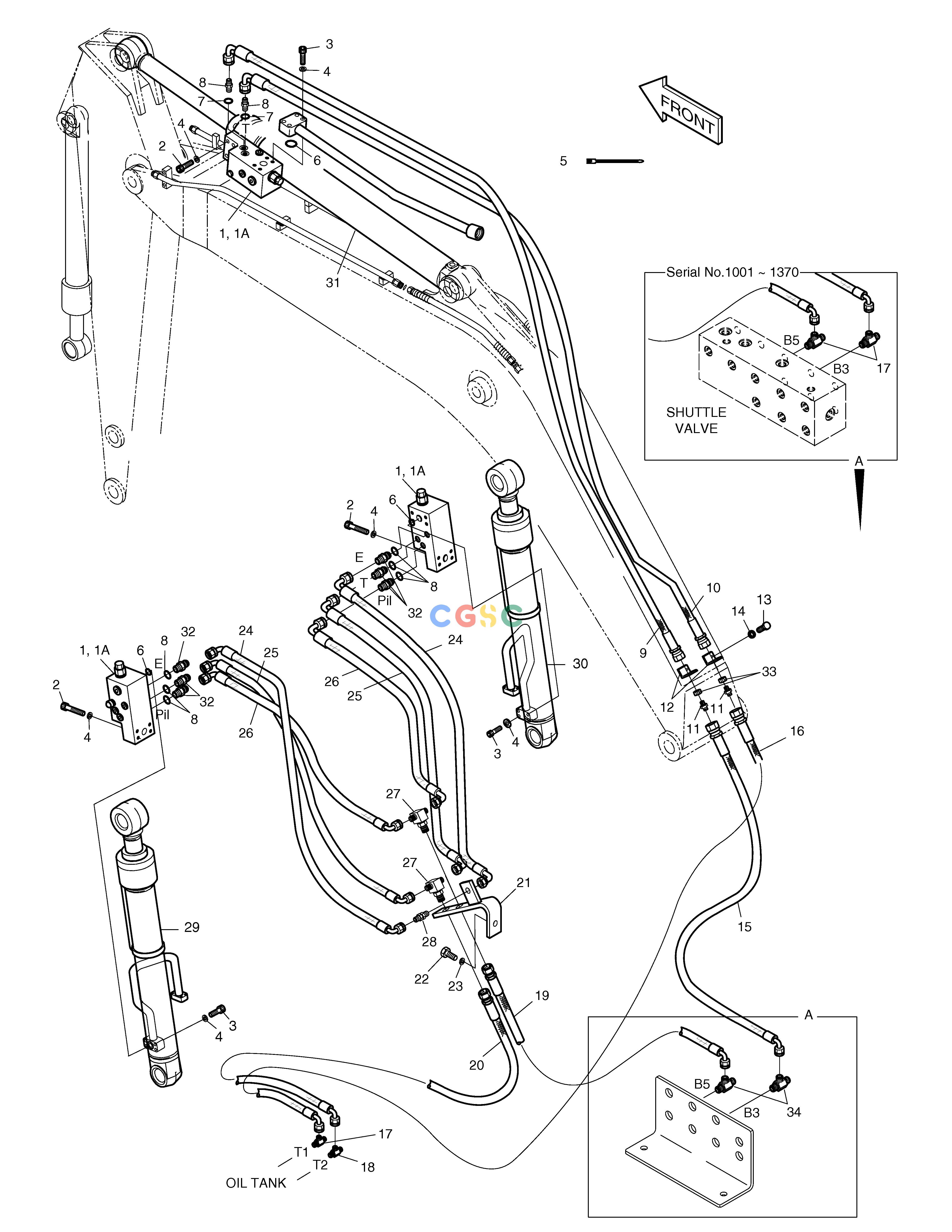

斗山零件查询LOCK VALVE PIPING SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
341 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00037
|
[-] |
LOCK VALVE PIPING
|
|
| 1. |
420-00004A
|
[3] |
VALVE;LOCK
|
|
| 10. |
2184-1046D259
|
[1] |
HOSE PF1/4-6000L
|
|
| 11. |
181-00007
|
[2] |
ADAPTER
|
|
| 11. |
181-00078D5
|
[2] |
ADAPTER
|
|
| 12. |
197-00021
|
[2] |
BRACKET
|
|
| 13. |
S0565661
|
[2] |
BOLT M16X2.0X70
|
S0565666
|
| 13. |
S0565666
|
[2] |
BOLT
|
|
| 14. |
S5102901
|
[2] |
. WASHER;SPRING
|
S5102903
|
| 14. |
S5102903
|
[2] |
WASHER
|
|
| 15. |
2184-1036D91
|
[1] |
HOSE PF3/8-2100L
|
2184-1046D283
|
| 15. |
2184-1046D283
|
[1] |
HOSE PF3/8-2100L
|
|
| 16. |
2184-1036D288
|
[1] |
HOSE 3/8-3200L
|
|
| 17. |
2181-1951D16
|
[3] |
TEE
|
|
| 17. |
2181-1951D16
|
[1] |
TEE
|
|
| 18. |
2181-1951D14
|
[1] |
TEE
|
|
| 19. |
2184-1036D28
|
[1] |
HOSE PF3/8-2000L
|
2184-1046D116
|
| 19. |
2184-1046D116
|
[1] |
HOSE PF3/8-2000L
|
|
| 1A. |
K9000999
|
[1] |
SEAL KIT
|
|
| 2. |
S2215761
|
[12] |
BOLT;SOCKET
|
S2215766
|
| 2. |
S2215766
|
[12] |
BOLT
|
|
| 20. |
2184-1036D90
|
[1] |
HOSE PF3/8-2600L
|
|
| 21. |
195-00132
|
[1] |
SUPPORT
|
|
| 22. |
S0561253
|
[1] |
BOLT M12X1.75X75
|
|
| 23. |
S5102703
|
[1] |
WASHER
|
|
| 24. |
2184-1076D125
|
[2] |
HOSE PF1/4-950L
|
|
| 25. |
2184-1076D126
|
[2] |
HOSE PF1/4-900L
|
2184-1062D20
|
| 25. |
2184-1062D20
|
[2] |
HOSE PF1/4-900L
|
|
| 26. |
2184-1076D126
|
[2] |
HOSE PF1/4-900L
|
2184-1062D20
|
| 26. |
2184-1062D20
|
[2] |
HOSE PF1/4-900L
|
|
| 27. |
181-00008
|
[2] |
TEE
|
|
| 28. |
181-00020
|
[1] |
ADAPTER
|
|
| 29. |
440-00030
|
[1] |
CYLINDER;BOOM(L.H)
|
|
| 3. |
S2215861
|
[12] |
BOLT;SOCKET M12X1.75X60
|
S2215866
|
| 3. |
S2215866
|
[12] |
BOLT;SOCKET M12X1.75X60
|
|
| 30. |
440-00031
|
[1] |
CYLINDER;BOOM(R.H)
|
|
| 31. |
440-00032
|
[1] |
CYLINDER;ARM
|
|
| 32. |
2181-1126D34
|
[6] |
ADAPTER
|
|
| 33. |
121-00010D1
|
[2] |
NUT
|
|
| 34. |
DS2458001
|
[2] |
TEE 3PF3/8
|
|
| 4. |
S5110701
|
[24] |
WASHER;SPRING M12
|
S5110703
|
| 4. |
S5110703
|
[24] |
WASHER
|
|
| 5. |
2124-1084D2
|
[30] |
CLIP;BAND
|
|
| 6. |
S8000341
|
[3] |
O-RING
|
|
| 7. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 8. |
S8000111
|
[8] |
O-RING
|
|
| 9. |
2184-1046D258
|
[1] |
HOSE PF1/4-5850L
|
|
