斗山零件查询MAIN PIPING-ONE & TWO WAY SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
144 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2154
|
[-] |

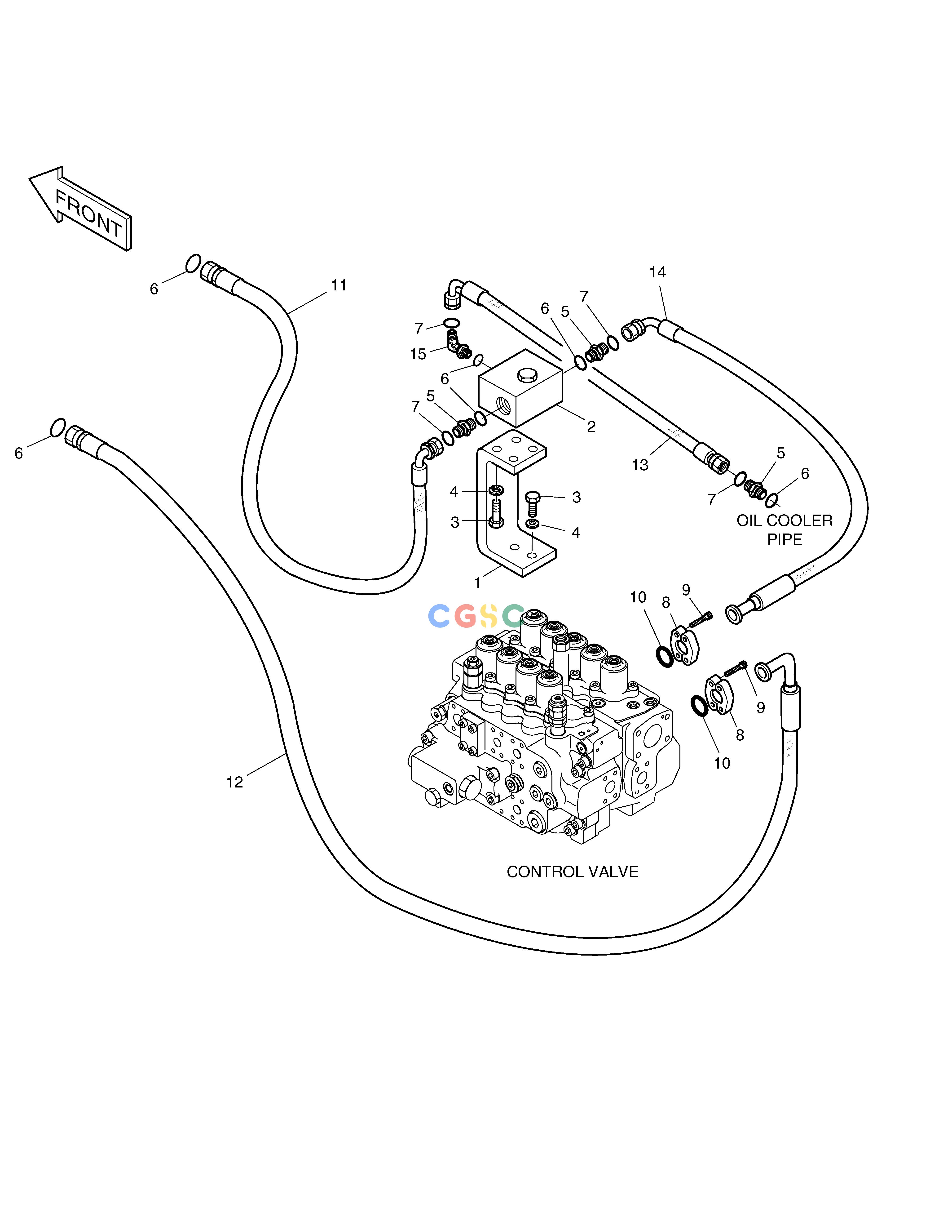

MAIN PIPING-ONE & TWO WAY
|
|
| 1. |
2197-2673
|
[1] |
BRACKET
|
|
| 10. |
2180-1026D19
|
[2] |
O-RING
|
|
| 11. |
2184-1197D99
|
[1] |
HOSE PF1-1360L
|
|
| 12. |
2184-1200D50
|
[1] |
HOSE PF1-3000L
|
DS2018053
|
| 12. |
DS2018053
|
[1] |
HOSE PF1-2300L
|
|
| 13. |
2184-1197D98
|
[1] |
HOSE PF1-820L
|
|
| 14. |
2184-1201D26
|
[1] |
HOSE PF1-820L
|
|
| 15. |
2181-2815D1
|
[1] |
ELBOW
|
|
| 2. |
2420-9633
|
[1] |
VALVE;SWITCH
|
2420-9633A
|
| 2. |
2420-9633A
|
[1] |
VALVE;SWITCH
|
|
| 3. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 4. |
S5102703
|
[4] |
WASHER
|
|
| 5. |
2181-4133D6
|
[3] |
ADAPTER
|
|
| 6. |
S8030161
|
[6] |
O-RING
|
|
| 7. |
S8000291
|
[4] |
O-RING
|
|
| 8. |
2181-9083
|
[4] |
FLANGE;SPLIT
|
|
| 9. |
S2212366
|
[8] |
BOLT
|
|
| 9. |
S2212361
|
[8] |
BOLT;SOCKET M10X1.5X35
|
S2212366
|
