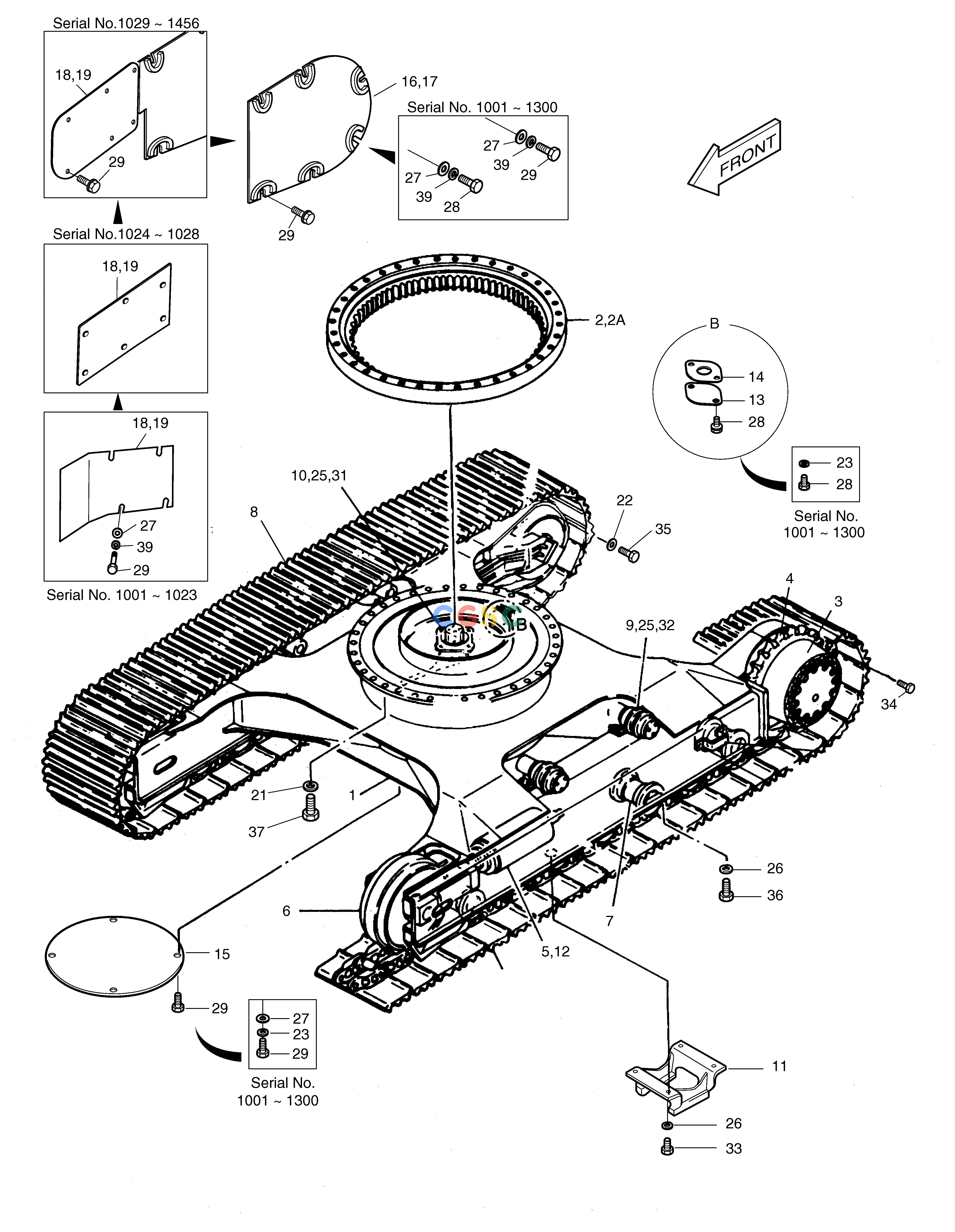

斗山零件查询TRACK-WIDTH 3m SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
590 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2604-1433
|
[-] |
TRACK -WIDTH 3m
|
|
| -. |
2604-1433A
|
[-] |
TRACK -WIDTH 3m
|
|
| 1. |
2604-1432A
|
[1] |
FRAME;TRACK
|
|
| 1. |
2604-1432B
|
[1] |
FRAME;TRACK
|
|
| 1. |
2604-1432C
|
[1] |
FRAME;TRACK
|
|
| 1. |
2604-1432E
|
[1] |
FRAME;TRACK
|
604-00137
|
| 1. |
604-00137
|
[1] |
FRAME;TRACK-3m OPT.
|
|
| 10. |
2480-9405B
|
[1] |
JOINT;CENTER
|
|
| 11. |
2623-1129B
|
[4] |
GUARD;LINK
|
|
| 12. |
2420-1242A
|
[2] |
VALVE;GREASE
|
|
| 13. |
2403-1002
|
[1] |
COVER
|
|
| 14. |
2180-1017A
|
[1] |
PACKING
|
|
| 15. |
2621-1704
|
[1] |
COVER
|
|
| 15. |
621-01989
|
[1] |
COVER
|
|
| 16. |
2621-3883
|
[1] |
COVER
|
|
| 16. |
621-01529A
|
[1] |
COVER(L.H)
|
|
| 17. |
2621-3884
|
[1] |
COVER
|
|
| 17. |
621-01530A
|
[1] |
COVER(R.H)
|
|
| 18. |
2229-1066
|
[1] |
COVER
|
|
| 18. |
2627-1904
|
[1] |
COVER
|
|
| 18. |
621-00029
|
[1] |
COVER
|
621-00029A
|
| 18. |
621-00029A
|
[1] |
COVER
|
|
| 19. |
2229-1067
|
[1] |
COVER
|
|
| 19. |
2627-1904
|
[1] |
COVER
|
|
| 19. |
621-00029
|
[1] |
COVER
|
621-00029A
|
| 19. |
621-00029A
|
[1] |
COVER
|
|
| 2. |
2109-1059
|
[1] |
BEARING;SWING
|
2109-1059A
|
| 2. |
2109-1059A
|
[1] |
BEARING;SWING
|
|
| 21. |
2114-1831
|
[40] |
WASHER;HARDEN
|
2114-1831A
|
| 21. |
2114-1831A
|
[40] |
. WASHER
|
|
| 22. |
2114-9012
|
[52] |
WASHER;HARDEN
|
2114-9012A
|
| 22. |
2114-9012A
|
[52] |
WASHER
|
|
| 23. |
S5102603
|
[6] |
. WASHER
|
|
| 25. |
S5102901
|
[19] |
. WASHER;SPRING
|
|
| 25. |
S5102903
|
[19] |
WASHER
|
|
| 26. |
S5103101
|
[16] |
WASHER;SPRING M20
|
|
| 26. |
S5103103
|
[16] |
WASHER
|
|
| 27. |
2114-1058D10
|
[28] |
WASHER
|
|
| 28. |
S0511853
|
[6] |
BOLT
|
|
| 28. |
S0511853
|
[14] |
BOLT
|
|
| 28. |
2120-2196D1
|
[2] |
BOLT;SET M10X1.5X20
|
|
| 28. |
2120-2196D2
|
[2] |
BOLT;SET M10X1.5X25
|
|
| 29. |
S0512253
|
[24] |
BOLT M10X1.5X30
|
|
| 29. |
S0512253
|
[16] |
BOLT M10X1.5X30
|
|
| 29. |
2120-2196D2
|
[28] |
BOLT;SET M10X1.5X25
|
|
| 29. |
2120-2196D10
|
[16] |
BOLT;SET M12X1.75X25
|
|
| 2A. |
180-00297D2
|
[1] |
SEAL
|
|
| 3. |
2401-9264
|
[2] |
TRAVEL DEVICE
|
2401-9264B
|
| 3. |
2401-9264B
|
[2] |
TRAVEL DEVICE
|
2401-9264C
|
| 3. |
2401-9264C
|
[2] |
TRAVEL DEVICE
|
|
| 31. |
S0521251
|
[3] |
BOLT M16X2.0X30
|
|
| 31. |
S0521261
|
[3] |
BOLT M16X2.0X30
|
|
| 32. |
S0565051
|
[16] |
BOLT M16X2.0X40
|
|
| 32. |
S0521451
|
[16] |
BOLT M16X2.0X40
|
|
| 32. |
S0521466
|
[16] |
BOLT
|
|
| 33. |
S0527661
|
[16] |
BOLT M20X2.5X50
|
S0527666
|
| 33. |
S0527666
|
[16] |
BOLT M20X2.5X50
|
|
| 34. |
S0569961
|
[48] |
BOLT M20X2.5X55
|
|
| 34. |
S0570061
|
[48] |
BOLT M20X2.5X60
|
S0570066
|
| 34. |
S0570066
|
[48] |
BOLT
|
|
| 35. |
S0570461
|
[52] |
BOLT M20X2.5X80
|
|
| 35. |
S0570361
|
[52] |
BOLT M20X2.5X75
|
S0570366
|
| 35. |
S0570366
|
[52] |
BOLT M20X2.5X75
|
|
| 36. |
S0570861
|
[72] |
BOLT M20X2.5X100
|
|
| 36. |
S0570661
|
[72] |
BOLT M20X2.5X90
|
S0570666
|
| 36. |
S0570666
|
[72] |
BOLT M20X2.5X90
|
|
| 37. |
S0774961
|
[40] |
BOLT M24X2.0X80
|
S0774966
|
| 37. |
S0774966
|
[40] |
BOLT
|
|
| 39. |
S5110601
|
[24] |
WASHER;SPRING M10
|
|
| 4. |
2108-1038
|
[2] |
SPROCKET
|
108-00018A
|
| 4. |
108-00018A
|
[2] |
SPROCKET
|
|
| 5. |
2274-1014C
|
[2] |
TRACK SPRING ASS'Y
|
|
| 5. |
2274-1035A
|
[2] |
SPRING;TRACK
|
2274-1035C
|
| 5. |
2274-1035C
|
[2] |
TRACK SPRING ASS'Y
|
|
| 6. |
2270-1084B
|
[2] |
IDLER
|
270-00037
|
| 6. |
270-00037
|
[2] |
IDLER ASS'Y
|
|
| 7. |
2270-9025
|
[18] |
LOWER ROLLER ASS'Y
|
|
| 8. |
2273-1039
|
[2] |
TRACK SHOE ASS'Y
|
|
| 9. |
2270-6126
|
[4] |
UPPER ROLLER ASS'Y
|
|
