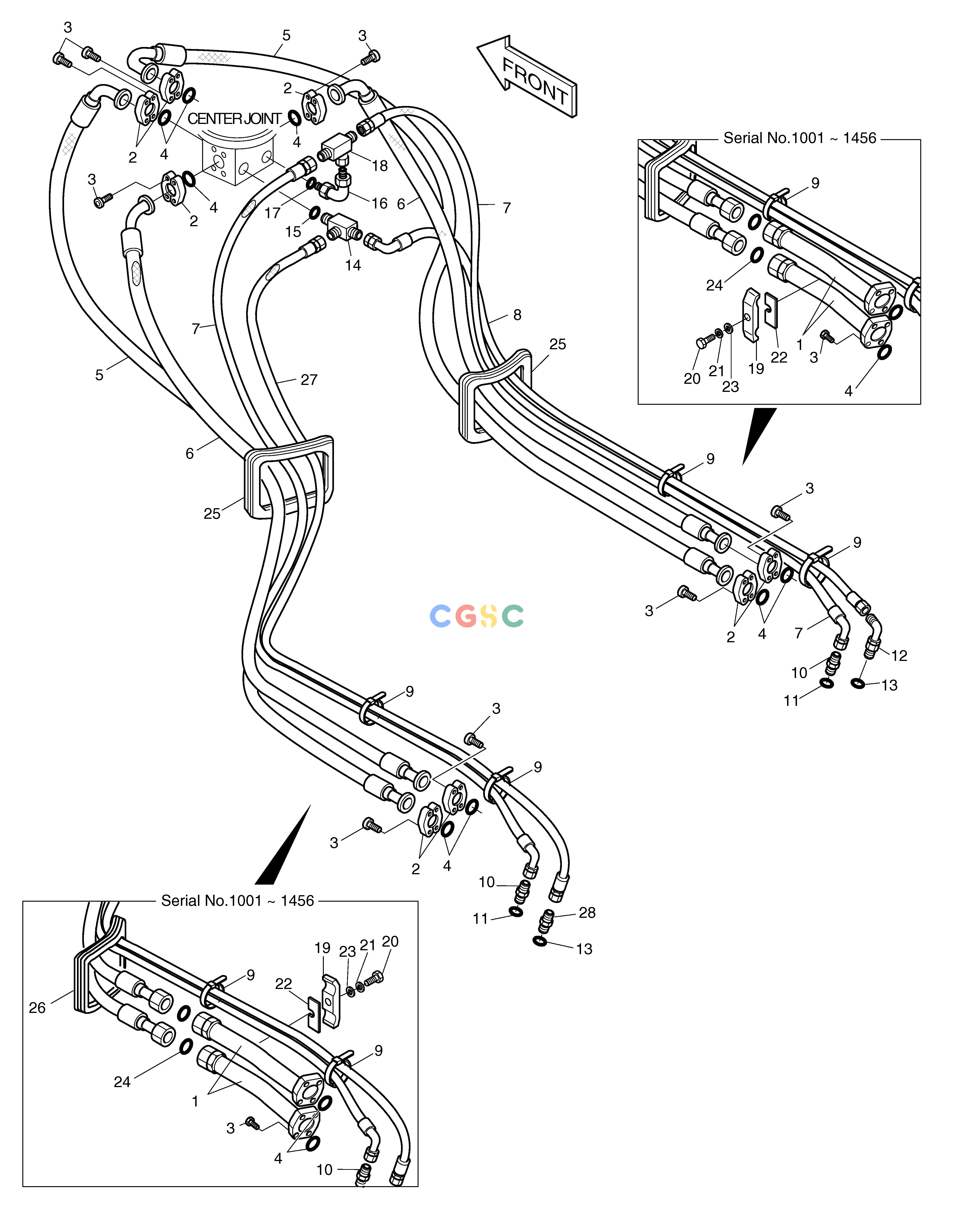

斗山零件查询TRAVEL PIPING-TRACK 3m SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
147 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2110
|
[-] |
TRAVEL PIPING ASS'Y
|
|
| -. |
2400-2110A
|
[-] |
TRAVEL PIPING ASS'Y
|
|
| 1. |
2140-1535
|
[4] |
PIPE
|
|
| 10. |
2181-1126D83
|
[2] |
ADAPTER
|
|
| 11. |
S8000181
|
[2] |
O-RING
|
|
| 12. |
2181-2419D1
|
[1] |
ELBOW
|
|
| 13. |
S8000111
|
[2] |
O-RING
|
|
| 14. |
2181-1951D7
|
[1] |
TEE
|
|
| 15. |
S8000141
|
[1] |
O-RING
|
|
| 16. |
2181-1702D70
|
[1] |
ELBOW PFO3/4-PF1/2
|
|
| 17. |
S8000231
|
[1] |
O-RING
|
|
| 18. |
2181-4124
|
[1] |
TEE PF1/2
|
|
| 19. |
2124-1602
|
[2] |
CLAMP;PIPE
|
|
| 2. |
2181-9081
|
[8] |
FLANGE;SPLIT
|
|
| 20. |
S0561053
|
[2] |
BOLT
|
|
| 21. |
S5102703
|
[2] |
WASHER
|
|
| 22. |
2114-1685
|
[2] |
SHIM
|
|
| 23. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 24. |
S8030161
|
[4] |
O-RING
|
|
| 25. |
2160-1172
|
[2] |
BUSHING;RUBBER
|
|
| 25. |
2160-4003
|
[2] |
BUSHING;RUBBER
|
|
| 26. |
2160-1322D1
|
[2] |
BUSHING;RUBBER
|
|
| 27. |
2184-1026D290
|
[1] |
HOSE PF1/4-2800L
|
|
| 28. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 3. |
S2215361
|
[32] |
BOLT;SOCKET M12X1.75X35
|
S2215366
|
| 3. |
S2215366
|
[32] |
BOLT
|
|
| 4. |
2180-1026D19
|
[8] |
O-RING
|
|
| 5. |
2184-1200D45
|
[2] |
HOSE PF1-1800L
|
|
| 5. |
DS2040300
|
[2] |
HOSE-2500L
|
|
| 6. |
DS2039054
|
[2] |
HOSE
|
|
| 6. |
2184-1222D27
|
[2] |
HOSE PF1-1650L
|
|
| 7. |
2184-1036D51
|
[2] |
HOSE PF1/2-2500L
|
|
| 8. |
2184-1036D205
|
[1] |
HOSE PF1/4-2900L
|
|
| 9. |
2124-1622D5
|
[20] |
CLIP;BAND 370L
|
|
| 9. |
2124-1084D1
|
[20] |
CLIP;BAND
|
|
