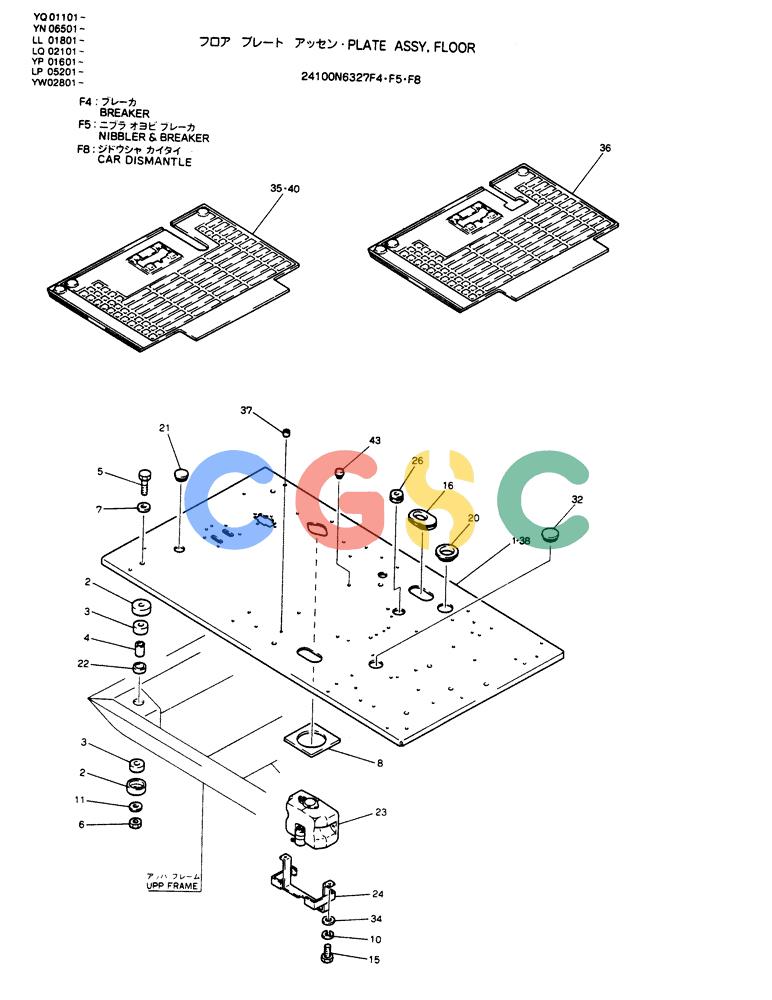

神钢零件查询(CLAMSHELL) - ATTACHMENT - SK200 EXCAVATORS (1/91-12/97) (021-60) - PLATE ASSY, FLOOR 24100N6327F4, F5, F8 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
466 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2427J2660 | [1] | PLATE FLOOR | |
| 2. | 2414T2855 | [8] | COVER | KOB |
| 3. | 2416Z539 | [8] | RUBBER SLEEVE | KOB |
| 4. | 2418T9226D7 | [4] | SPACER | KOB |
| 5. | ZS18C16100 | [4] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 6. | ZN32C16015 | [4] | NUT | KOBM16x2.0mm |
| 7. | ZW16H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 8. | 2479Z1919 | [1] | INSULATOR | KOB |
| 10. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 11. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 15. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 16. | 2427Z1323 | [2] | RUBBER SLEEVE | KOB Superseded by part number: 2427Z1529 |
| 20. | 2420Z1339 | [1] | GROMMET | KOB |
| 21. | 2420Z1286 | [1] | GROMMET | KOBGROMMET |
| 22. | 2418Z740 | [4] | RUBBER RING | KOB |
| 23. | 2427U900 | [1] | TANK | KOB |
| 24. | 2416T22805 | [1] | SUPPORT | SUPPORT |
| 26. | 2420Z1330 | [1] | GROMMET | KOB |
| 34. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 35. | 2427U1334 | [1] | MAT, FLOOR, Remarks: (F 5) | |
| 36. | 2427U1335 | [1] | MAT, FLOOR, Remarks: (F 4) | |
| 37. | 2405T1739D1 | [1] | BUSHING, APPLICABLE: YQ01101-01124 YN06501-06938, Remarks: | |
| . . | 2405T1749 | [1] | BUSHING | KOBBUSHING, APPLICABLE: YQ01125-YN06939-, Remarks: |
| 38. | 2427J2806 | [1] | PLATE, FLOOR, Remarks: (F 8) | |
| 40. | 2427U1363 | [1] | MAT, FLOOR, Remarks: (F 8) | |
| 43. | 2420Z1374 | [8] | PLUG | KOBAPPLICABLE: YQ01119-YN06789- |
