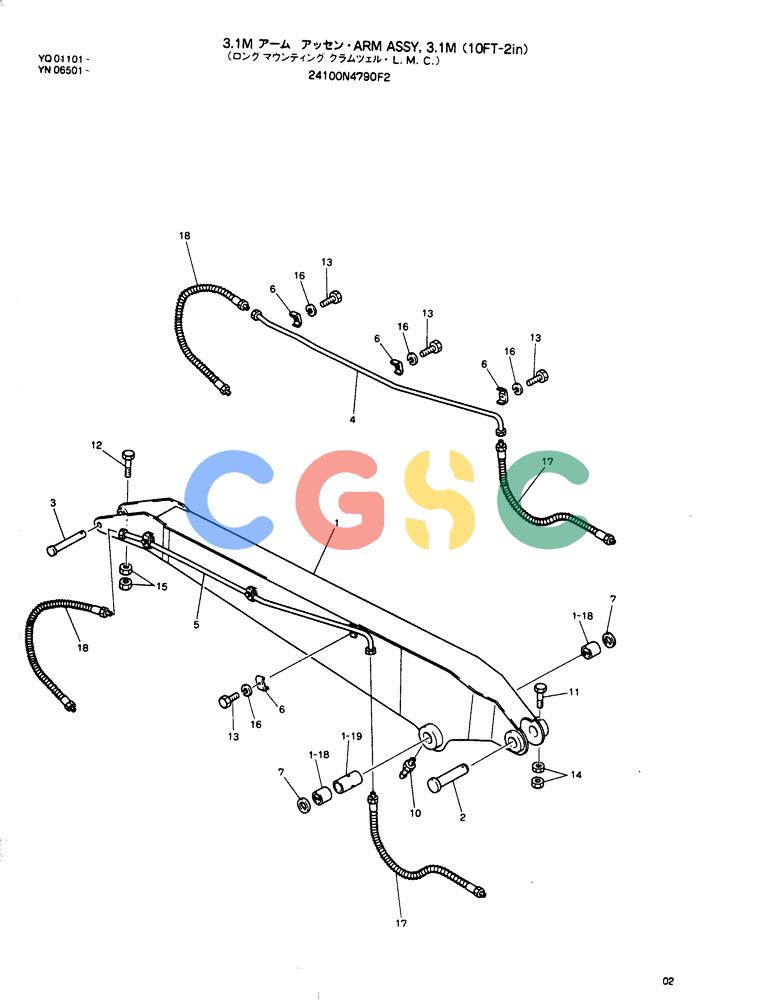

神钢零件查询(CLAMSHELL) - ATTACHMENT - SK200 EXCAVATORS (1/91-12/97) (272-61) - ARM ASSY, 3.1M L.M.C.) 24100N4790F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
435 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2411J2822F1 | [1] | ARM, 3.1M (CLAMSHELL) | |
| 1-18. | B05T0009C2 | [2] | BUSHING | KOB |
| 1-19. | 2418T10056 | [1] | SPACER | SPACER |
| 2. | 2419P1708D4 | [1] | PIN | |
| 3. | 2419T3362 | [1] | PIN | |
| 4. | 2418P18013D2 | [1] | TUBE | |
| 5. | 2418P18013D1 | [1] | TUBE | |
| 6. | ZC26X28014 | [6] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 7. | 2445R220D4 | [2] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 80 X OD 95 x Th 5mm Superseded by part number: 84499640 |
| 10. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 12. | ZS13C12110 | [1] | SCREW | KOBM12x1.75x110mm Superseded by part number: ZS18C12110 |
| 13. | ZS13C12055 | [6] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 14. | ZN12C16013 | [2] | NUT | KOBM16x2.0mm |
| 15. | ZN12C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 16. | ZW22X12000 | [6] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 17. | ZX56T12130 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1177D3 |
| 18. | ZX56T12100 | [2] | HOSE | |
