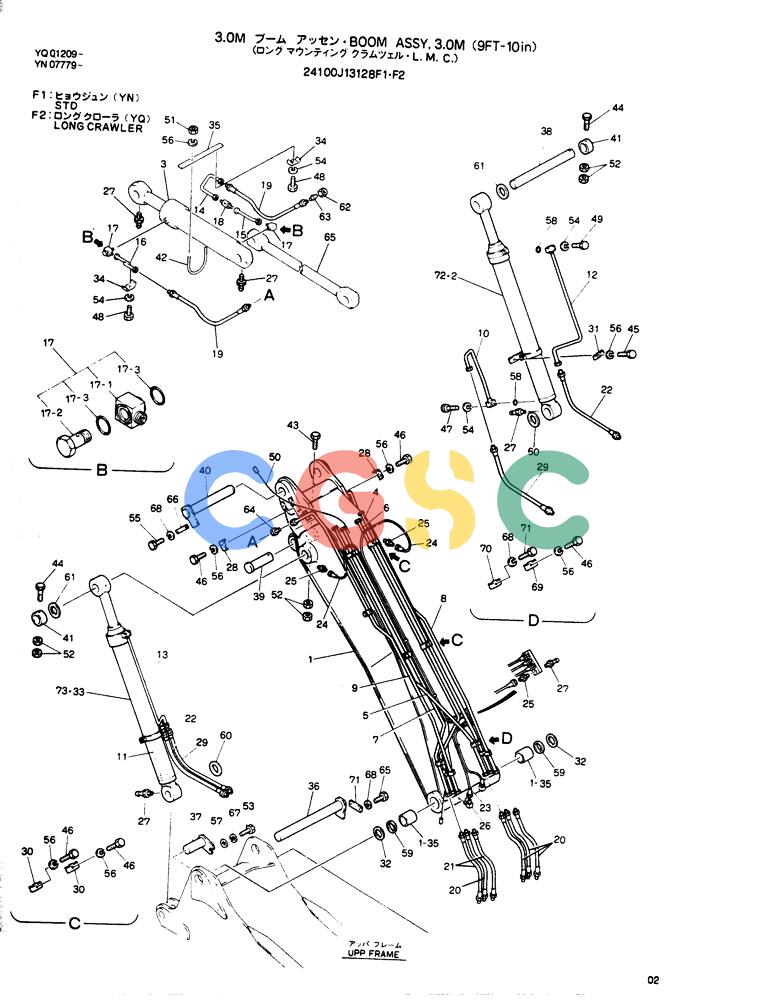

| 1. | 2411J4254F1 | [1] | BOOM, MAIN | |
| 1-35. | 2405T1252 | [2] | BUSHING | KOB |
| 2. | 2438U1106F1 | [1] | CYLINDER | KOB(F1 ONLY), Remarks: SEE (C.P.M) |
| 3. | 2438U1128F1 | [1] | CYLINDER ASSY | CYLINDER ASSY |
| 4. | 2418P24137 | [1] | TUBE | |
| 5. | 2418P24138 | [1] | TUBE | |
| 6. | 2418P24139D2 | [1] | TUBE | |
| 7. | 2418P24140D2 | [1] | TUBE | |
| 8. | 2418P24136D1 | [1] | TUBE | |
| 9. | 2418P24136D2 | [1] | TUBE | |
| 10. | 2418P12146D1 | [1] | RIGID TUBE | KOB |
| 11. | 2418P12146D2 | [1] | RIGID TUBE | KOB |
| 12. | 2418P21595D1 | [1] | TUBE | KOB |
| 13. | 2418P21595D2 | [1] | RIGID TUBE | KOB |
| 14. | 2418T12533 | [1] | TUBE | |
| 15. | 2418T12534 | [1] | TUBE | |
| 16. | 2418T12535 | [1] | TUBE | |
| 17. | 2444T2146F1 | [2] | JOINT, SWIVEL | |
| 17-1. | 2444T2147 | [1] | BODY | |
| 17-2. | 2444T2149 | [1] | JOINT | |
| 17-3. | 2445Z1073 | [2] | O-RING | |
| 18. | 2436Z413F1 | [1] | VALVE, FLOW CONTROL | |
| 19. | 2444R1097D1 | [2] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2444R1171D1 |
| 20. | ZX26T12094 | [4] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1177D2 |
| 21. | 2444R1090D1 | [2] | HOSE | KOB |
| 22. | ZX26T12080 | [2] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2444R1177D1 |
| 23. | 2445R1117D080 | [2] | HOSE | |
| 24. | 2445R1117D275 | [2] | HOSE | |
| 25. | ZH22Z04000 | [6] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 26. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 27. | ZG91S02000 | [8] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 28. | ZC26X28014 | [6] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 29. | ZX26N10080 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: ZX28N10080 |
| 30. | 2432T2243 | [4] | CLAMP | KOB |
| 31. | 2432T2242 | [2] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 32. | B16T0442D14 | [2] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 33. | 2438U1107F1 | [1] | CYLINDER | KOB(F1 ONLY), Remarks: SEE (C.P.M) Superseded by part number: 2438U1106F1 |
| 34. | ZC26X22011 | [2] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 35. | 2416T9888 | [1] | SUPPORT | |
| 36. | 2419T4651 | [1] | PIN | KOB Superseded by part number: 2419T7607, 2419T5490 |
| 37. | 2419T4698 | [2] | PIN | KOB Superseded by part number: 2419P3687 |
| 38. | 2419P1707D1 | [1] | PIN | KOB |
| 39. | 2419T3360D3 | [1] | PIN | |
| 40. | 2419T1665 | [1] | PIN | |
| 41. | 2411T671D5 | [2] | BOSS | KOB |
| 42. | 2420T4366 | [1] | U-BOLT | |
| 43. | ZS13C16130 | [1] | SCREW | KOB |
| 44. | 2420T4004D1 | [2] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm |
| 45. | ZS13C12050 | [2] | SCREW | KOBM12x1.75x50mm Superseded by part number: ZS18C12050 |
| 46. | ZS13C12055 | [11] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 47. | ZS13C10070 | [8] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 48. | ZS13C10045 | [2] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 49. | ZS13C10060 | [8] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 50. | 2479Z2301D4 | [1] | HARNESS | |
| 51. | ZN13C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 52. | ZN13C16013 | [6] | NUT | KOBM16x2.0mm |
| 53. | ZS13C16030 | [2] | SCREW | KOBM16x2.0x30mm |
| 54. | ZW22X10000 | [18] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 55. | ZS13C14030 | [4] | SCREW | KOBM14x2.0x30mm Superseded by part number: ZS18C14030 |
| 56. | ZW22X12000 | [15] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 57. | 2718T17550 | [2] | PLATE | |
| 58. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 59. | 2445R220D6 | [2] | SEAL,90mm ID x 105mm OD x 6mm Thk | KOBDust -- ID 90 X OD 105 x Th 6mm |
| 60. | B16T0442D4 | [2] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 61. | B16T0442D62 | [2] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOBID 87 x OD 140 x Th 1.6mm |
| 62. | ZA93N22000 | [2] | TUBE NUT | KOB |
| 63. | ZA83P22000 | [2] | PLUG | KOBPLUG |
| 64. | ZA82P22000 | [2] | PLUG | KOB |
| 65. | 2420T4421 | [1] | TIE-ROD | |
| 66. | 2418T12469 | [1] | PLATE | KOB150 x 50 x Th 12mm, 2-Ø16 Holes |
| 67. | ZW22X16000 | [2] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 68. | ZW22X14000 | [4] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 69. | ZX36X28014 | [1] | CLAMP | |
| 70. | ZC36X35016 | [1] | CLAMP | KOB |
| 71. | ZS13C14065 | [1] | SCREW | KOBM14x2.0x65mm Superseded by part number: ZS18C14065 |
| 72. | 2438U1102F1 | [1] | CYLINDER | KOB(F2 ONLY), Remarks: SEE (C.P.M) |
| 73. | 2438U1103F1 | [1] | CYLINDER | KOB(F2 ONLY), Remarks: SEE (C.P.M) |
