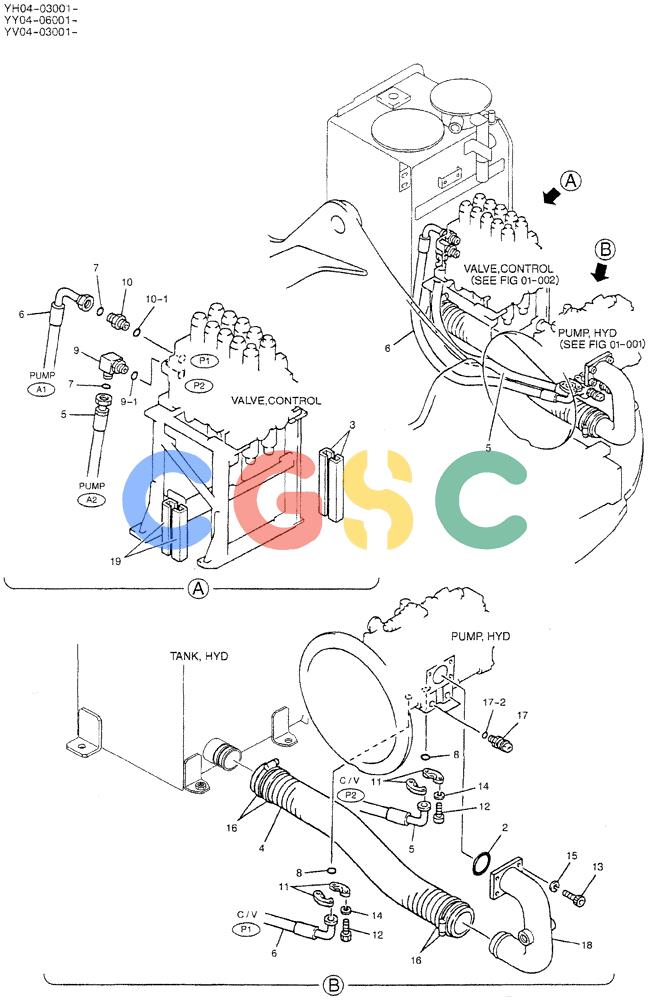

神钢零件查询(DOZER) - ATTACHMENT - SK115SR-1E, -1ES, SK135SR-1E, LC-1E, LC-1ES (1/02-12/03) (01-003) - HYD LINES, UPP (SUCTION, DELIVERY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
147 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY30H00002F2 | [1] | LINE | KOB |
| 2. | ZD11G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.40 ± 0.65 x OD 80mm |
| 3. | YN64H01068D7 | [2] | RUBBER | KOB |
| 4. | YX30H01004P2 | [1] | HOSE | KOB |
| 5. | YX30H01014D1 | [1] | HOSE | KOB |
| 6. | YX30H01012D1 | [1] | HOSE | KOB |
| 7. | ZD12A01800 | [2] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 8. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 9. | ZG33F12012 | [1] | 90 ELBOW,1 3/16"-12 UN x PF 3/4" | KOB90° -- 1-3/16" -12UN x 3/4" PF (Incls. O-Ring ZD12P02400) |
| 9-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 10. | ZG23F12012 | [1] | HYD CONNECTOR | KOB1 3/16" 12UN-3/4" PT x 48mm Long (Incls. O-Ring ZD12P02400) |
| 10-1. | ZD12P02400 | [1] | O-RING | KOB(Part of ZG23F12012), ID 23.70 ± 0.24 x OD 30mm |
| 11. | ZE13X12000 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 12. | ZS18C10035 | [8] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 13. | ZS28C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOBScrew -- M12x1.75x30mm |
| 14. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 15. | ZW26K12000 | [4] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 16. | ZC16X09100 | [4] | CLIP | KOBClamp, Hose -- Min 80 x Max 101mm |
| 17. | LC52S00012P1 | [2] | SENSOR | KOBPressure (High Pressure) (replaced by LS52S00015P1) Superseded by part number: YY52S00033F1 |
| 17. | LS52S00015P1 | [2] | SENSOR | KOB(New part #) (Added by SB S030-41-K003) |
| 17-0. | YY52S00033F1 | [1] | PRESSURE SWITCH | KOBKit Includes Ref 17 - 17-3 (Refer to SB S030-41-K003) |
| 17-1. | LS30H01024P1 | [1] | HYD CONNECTOR | SM(Added with new part # press switch) |
| 17-2. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 17-3. | YT42H01128P1 | [1] | 90 ELBOW | KOB(Added with new part # press switch) |
| 18. | YX30H01010P1 | [1] | TUBE | KOB |
| 19. | YN64H01068DD | [2] | RUBBER | KOB |
