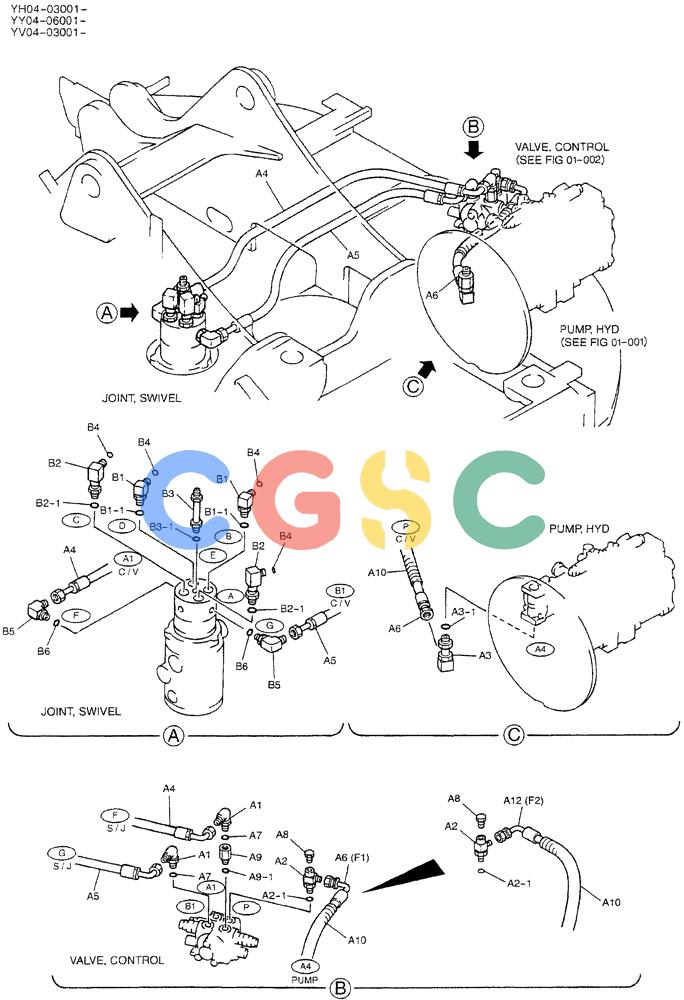

神钢零件查询(DOZER) - ATTACHMENT - SK115SR-1E, -1ES, SK135SR-1E, LC-1E, LC-1ES (1/02-12/03) (01-004) - HYD LINES, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
127 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV03H00005F1 | [1] | LINE | KOB |
| . . | YV03H00005F2 | [1] | LINE | KOB |
| A1. | ZA33F18008 | [2] | ELBOW | KOB |
| A2. | 2444Z3840 | [1] | TEE | KOB |
| A2-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| A3. | YY03H01106P1 | [1] | ELBOW | KOB |
| A3-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| A4. | YT03H01080D3 | [1] | HOSE | KOB |
| A5. | YT03H01080D2 | [1] | HOSE | KOB |
| A6. | ZX35M08068 | [1] | HOSE | KOB(F1 ONLY) |
| A7. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| A8. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| A9. | 2444Z3713 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| A9-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| A10. | 2414Z199D60 | [1] | PROTECTIVE SLEEVE | KOB |
| A12. | ZX35M08074 | [1] | HOSE (F2 ONLY) | |
| . . | YX19H00001F1 | [1] | LINE | KOB |
| B1. | HG33F10016G1 | [2] | ELBOW | KOB90° -- (Incls. O-Ring ZD12P02900) 56mm Long |
| B1-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| B2. | HG34F10016G1 | [2] | ELBOW | KOB90° -- (Incls. O-Ring ZD12P02900) 100mm Long |
| B2-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| B3. | YX19H01001P1 | [1] | ELEC CONNECTOR | KOB |
| B3-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| B4. | ZD12A01600 | [4] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| B5. | YT19H01015P1 | [2] | ELBOW | KOB Superseded by part number: ZA38F18008 |
| B6. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
