神钢零件查询(DOZER) - ATTACHMENT - SK115SR-1E, -1ES, SK135SR-1E, LC-1E, LC-1ES (1/02-12/03) (01-006) - HYD LINES, UPP (RETURN), P/N YV32H00003F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
644 次

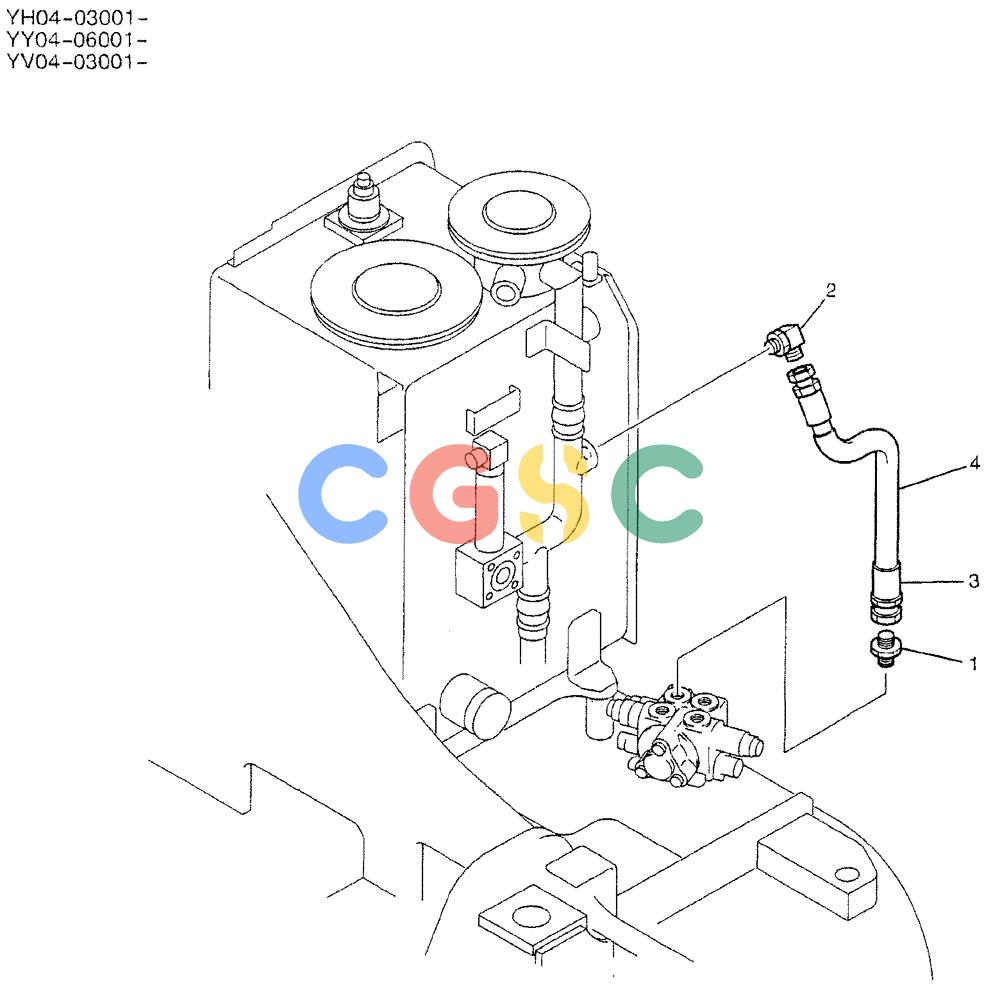

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV32H00003F1 | [1] | LINE | KOB |
| 1. | 2444Z3602 | [1] | HYD CONNECTOR | KOB3/4" PF x 1/2" PF x 47.5mm Long (Incls. O-Ring ZD12P01800) Superseded by part number: 2444R402D2 |
| 2. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| 3. | ZX22M12045 | [1] | HOSE,19.05mm ID x 450mm L | KOB450mm Long (17-23/32 in) |
| 4. | 2414Z199D60 | [1] | PROTECTIVE SLEEVE | KOB |
