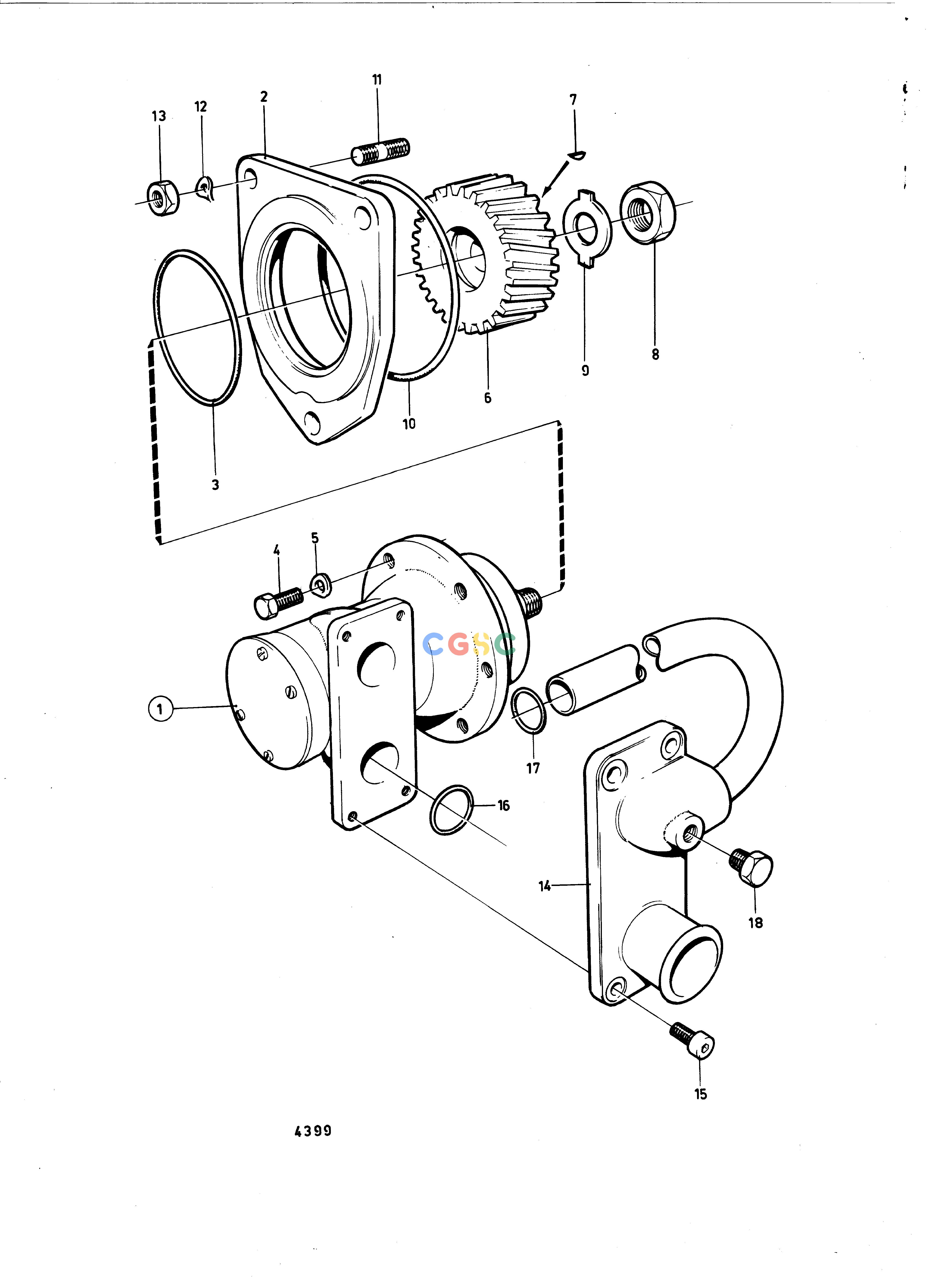

沃尔沃零件查询TAMD60CCooling SystemSea Water Pump and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
356 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
842275
|
[1] |
Sea water pump
|
|
| 2. |
820695
|
[1] |
Spacer
|
|
| 3. |
925095
|
[1] |
O-ring
|
|
| 4. |
940114
|
[3] |
Hexagon screw
|
|
| 5. |
942336
|
[3] |
Spring washer
|
|
| 6. |
820637
|
[1] |
Gear
|
See group 2A
|
| 7. |
942406
|
[1] |
Woodruff key
|
|
| 8. |
955860
|
[1] |
Hexagon nut
|
|
| 9. |
942735
|
[1] |
Tab washer
|
|
| 10. |
413619
|
[1] |
Gasket
|
|
| 11. |
953345
|
[3] |
Stud
|
|
| 12. |
941911
|
[3] |
Spring washer
|
|
| 13. |
955828
|
[3] |
Hexagon nut
|
|
| 14. |
842270
|
[1] |
Coolant pipe
|
|
| 15. |
956568
|
[4] |
Hex. socket screw
|
|
| 16. |
925063
|
[2] |
O-ring
|
|
| 17. |
949658
|
[1] |
O-ring
|
|
| 18. |
180759
|
[1] |
Plug
|
|
