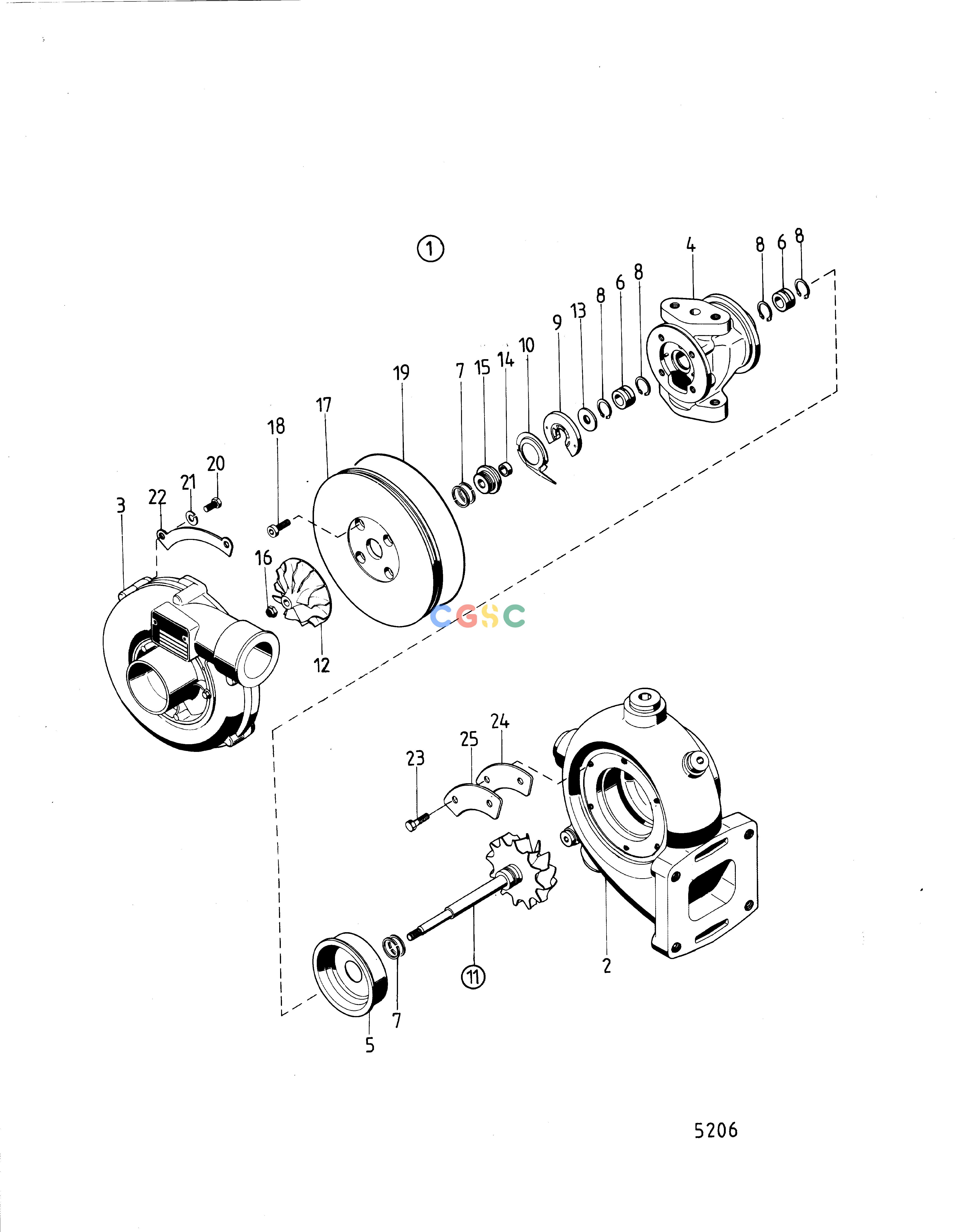

沃尔沃零件查询TAMD60CCooling SystemTurboEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
482 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 1. |
3802038
|
[1] |
Turbocharger
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 5. |
838563
|
[1] |
Shield
|
|
| 6. |
838562
|
[2] |
Bushing
|
|
| 7. |
845045
|
[4] |
Piston ring
|
|
| 8. |
845042
|
[4] |
Lock ring
|
|
| 9. |
838565
|
[1] |
Bearing
|
|
| 10. |
845047
|
[1] |
Oil deflector
|
|
| 11. |
838564
|
[1] |
Rotor
|
|
| 11. |
838576
|
[1] |
Rotor
|
|
| 12. |
838569
|
[1] |
Compressor wheel
|
|
| 13. |
844000
|
[1] |
Thrust ring
|
|
| |
845050
|
[1] |
Sleeve
|
|
| 15. |
845049
|
[1] |
Gasket
|
|
| 16. |
848711
|
[1] |
Lock nut
|
|
| 17. |
|
|
|
|
| 18. |
845829
|
[4] |
Screw
|
|
| 19. |
838567
|
[1] |
O-ring
|
|
| 20. |
838570
|
[8] |
Screw
|
|
| |
844005
|
[8] |
Spring washer
|
|
| |
838578
|
[4] |
Segment
|
|
| |
940199
|
[6] |
Hexagon screw
|
|
| 24. |
845035
|
[3] |
Segment
|
|
| 25. |
845035
|
[3] |
Segment
|
|
| 25. |
876321
|
[1] |
Gasket kit
|
|
| 25. |
838577
|
[1] |
Spare parts kit
|
|
