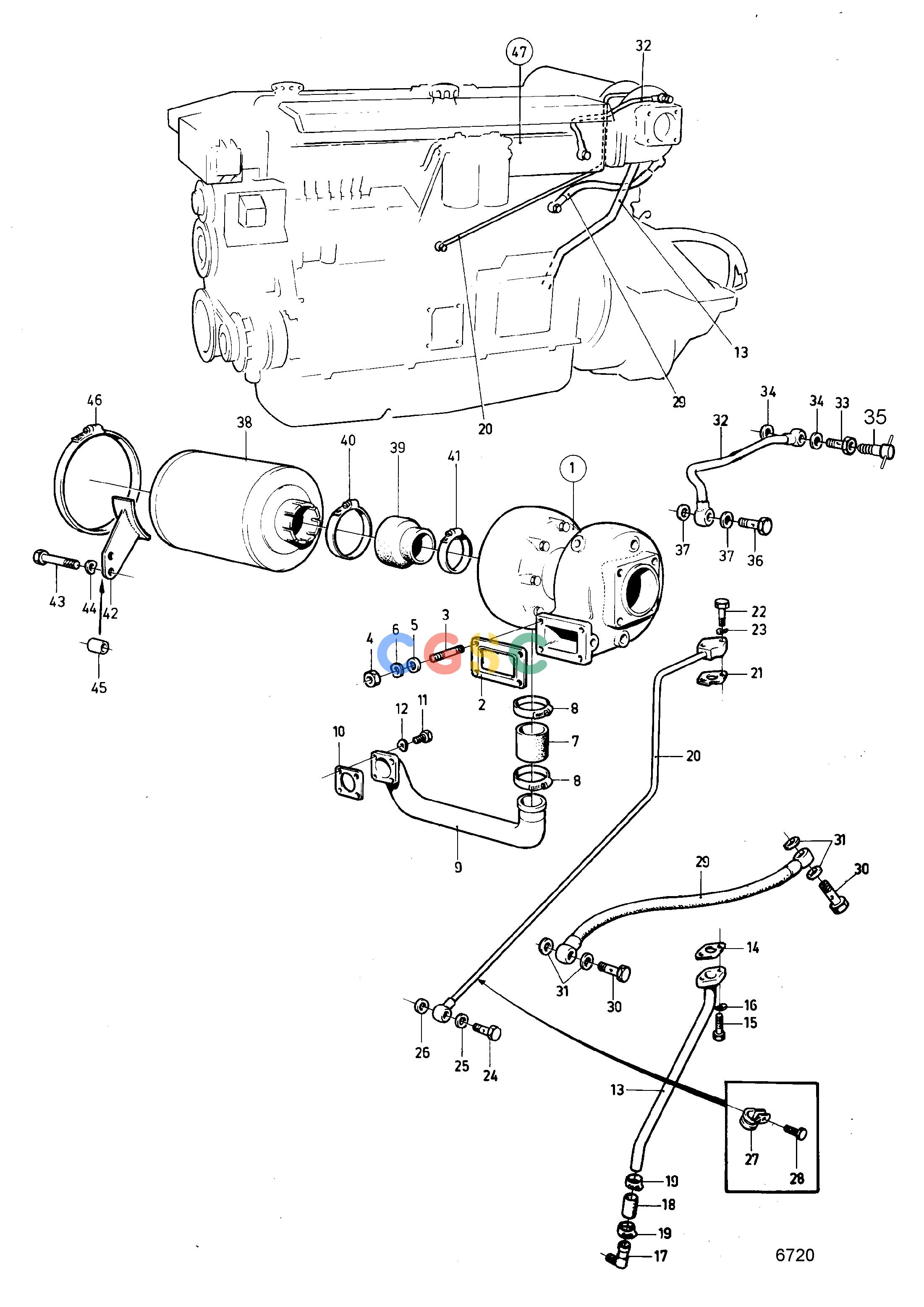

沃尔沃零件查询TAMD60CCooling SystemTurbo and Air Filter with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
809 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 1. |
3802038
|
[1] |
Turbocharger
|
|
| 2. |
421324
|
[1] |
Gasket
|
|
| 3. |
943883
|
[4] |
Stud
|
|
| 4. |
940183
|
[4] |
Hexagon nut
|
|
| 5. |
955895
|
[4] |
Washer
|
|
| 6. |
942336
|
[4] |
Spring washer
|
|
| 7. |
466327
|
[1] |
Hose
|
|
| 8. |
943479
|
[2] |
Hose clamp
|
|
| 9. |
842195
|
[1] |
Connecting pipe
|
|
| 10. |
824310
|
[1] |
Gasket
|
|
| 11. |
955525
|
[4] |
Hexagon screw
|
|
| 12. |
941907
|
[4] |
Spring washer
|
|
| 13. |
842277
|
[1] |
Oil return pipe
|
|
| 14. |
842986
|
[1] |
Gasket
|
|
| 15. |
955297
|
[2] |
Hexagon screw
|
|
| 16. |
941907
|
[2] |
Spring washer
|
|
| 17. |
468629
|
[1] |
Elbow nipple
|
|
| 18. |
466328
|
[1] |
Rubber hose
|
|
| 19. |
943473
|
[2] |
Hose clamp
|
|
| 20. |
842276
|
[1] |
Oil pressure pipe
|
|
| 21. |
420641
|
[1] |
Gasket
|
|
| 22. |
940142
|
[1] |
Hexagon screw
|
L=30mm
|
| 22. |
955295
|
[1] |
Hexagon screw
|
L=20mm
|
| 23. |
941907
|
[2] |
Spring washer
|
|
| 24. |
942007
|
[1] |
Hollow screw
|
|
| 25. |
18671
|
[1] |
Gasket
|
|
| 26. |
11998
|
[1] |
Gasket
|
|
| 27. |
942542
|
[1] |
Clamp
|
|
| 28. |
940133
|
[1] |
Hexagon screw
|
|
| 29. |
842317
|
[1] |
Hose
|
|
| 30. |
191157
|
[2] |
Hollow screw
|
|
| 31. |
957185
|
[4] |
Gasket
|
|
| 32. |
843930
|
[1] |
Coolant pipe
|
|
| 33. |
191158
|
[1] |
Hollow screw
|
|
| 34. |
957185
|
[2] |
Gasket
|
|
| 35. |
82745
|
[1] |
Shut-off cock
|
|
| 36. |
191157
|
[1] |
Hollow screw
|
|
| 37. |
957185
|
[2] |
Gasket
|
|
| 38. |
842280
|
[1] |
Air filter
|
|
| 39. |
842281
|
[1] |
Rubber fitting
|
|
| 40. |
943481
|
[1] |
Hose clamp
|
|
| 41. |
943484
|
[1] |
Hose clamp
|
|
| 42. |
842211
|
[1] |
Bracket
|
|
| 43. |
955546
|
[1] |
Hexagon screw
|
L=16mm
|
| 43. |
959806
|
[1] |
Hexagon screw, screw
|
L=152mm
|
| 44. |
941909
|
[2] |
Spring washer
|
|
| 45. |
911292
|
[1] |
Spacer sleeve
|
|
| 46. |
942921
|
[1] |
Hose clamp
|
|
| 47. |
7743230_023
|
|
exhaust manifold
|
|
