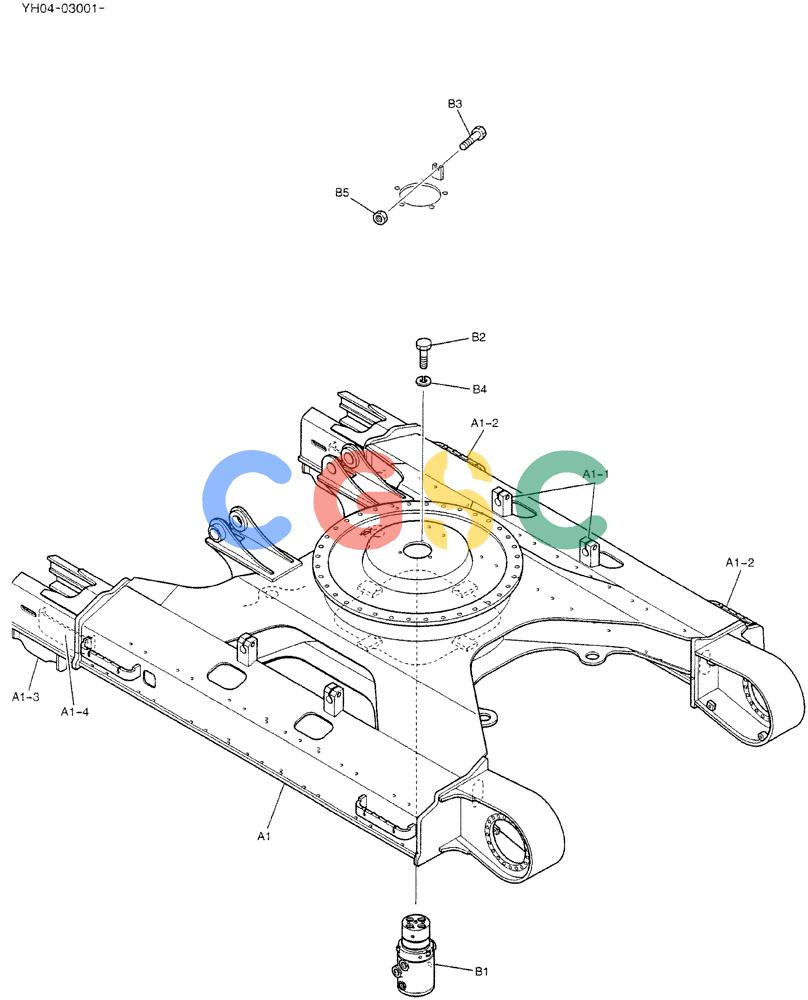

神钢零件查询(DOZER) - ATTACHMENT - SK115SR-1E, -1ES, SK135SR-1E, LC-1E, LC-1ES (1/02-12/03) (02-003) - LOW GROUP (FOR LONG CRAWLER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
149 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YY02F00055P1 | [1] | FRAME, LOW | |
| A1-1. | YV07F01045P1 | [4] | SUPPORT | KOB |
| A1-2. | YY41C00005P1 | [4] | STEP | KOB |
| Al-3. | YY07F01012P1 | [2] | GUIDE | KOB |
| A1-4. | YY07F01013P1 | [2] | GUIDE | KOB |
| AR. | YX19H00004F1 | [1] | JOINT | KOB |
| B1. | YX55V00001F2 | [1] | FLEXIBLE JOINT | KOB Superseded by part number: YX55V00001F3 |
| B2. | ZS18C12025 | [3] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| B3. | ZS18F20120 | [1] | SCREW | KOBM20x1.50x120mm |
| B4. | ZW16X12000 | [3] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| B5. | ZN18F20016 | [1] | NUT | KOBM20x1.50mm |
