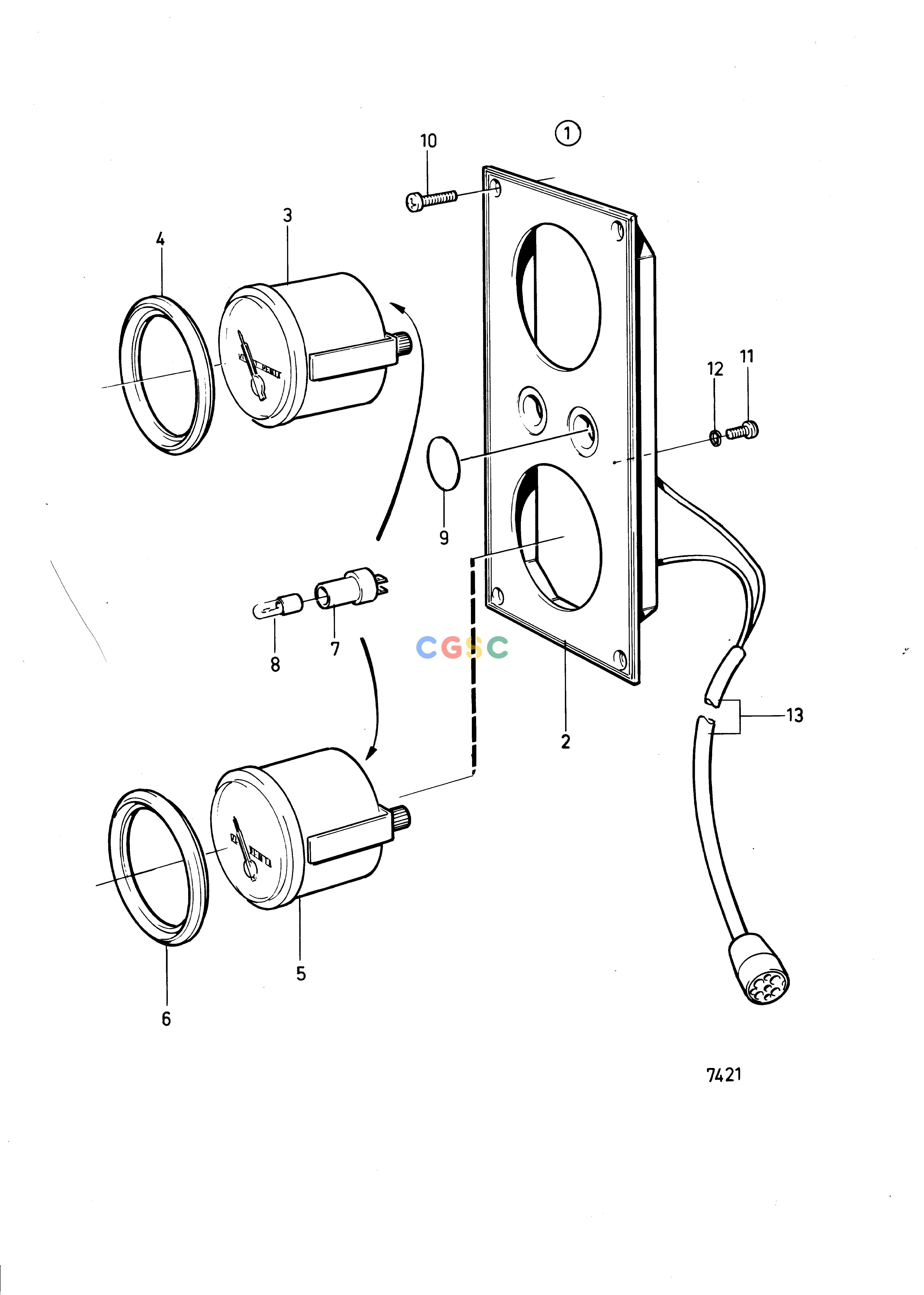

沃尔沃零件查询TAMD60CElectrical SystemInstrument Panel: 849940EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
849940
|
[1] |
Instrument panel
|
12V
|
| 2. |
858650
|
[1] |
Instrument panel
|
|
| 3. |
828621
|
[1] |
Oil pressure gauge
|
12V
|
| 4. |
858643
|
[1] |
Front ring
|
|
| 5. |
828625
|
[1] |
Pressure gauge
|
12V
|
| 6. |
858643
|
[1] |
Front ring
|
|
| 7. |
808175
|
[2] |
Bulb socket
|
|
| 8. |
19923
|
[2] |
Bulb
|
12V
|
| 9. |
828607
|
[2] |
Cover plate
|
|
| 10. |
828647
|
[4] |
Screw
|
|
| 11. |
949947
|
[1] |
Cross recessed screw
|
|
| 12. |
941904
|
[1] |
Spring washer
|
|
| 13. |
|
|
|
Turbo - reverse gear
|
