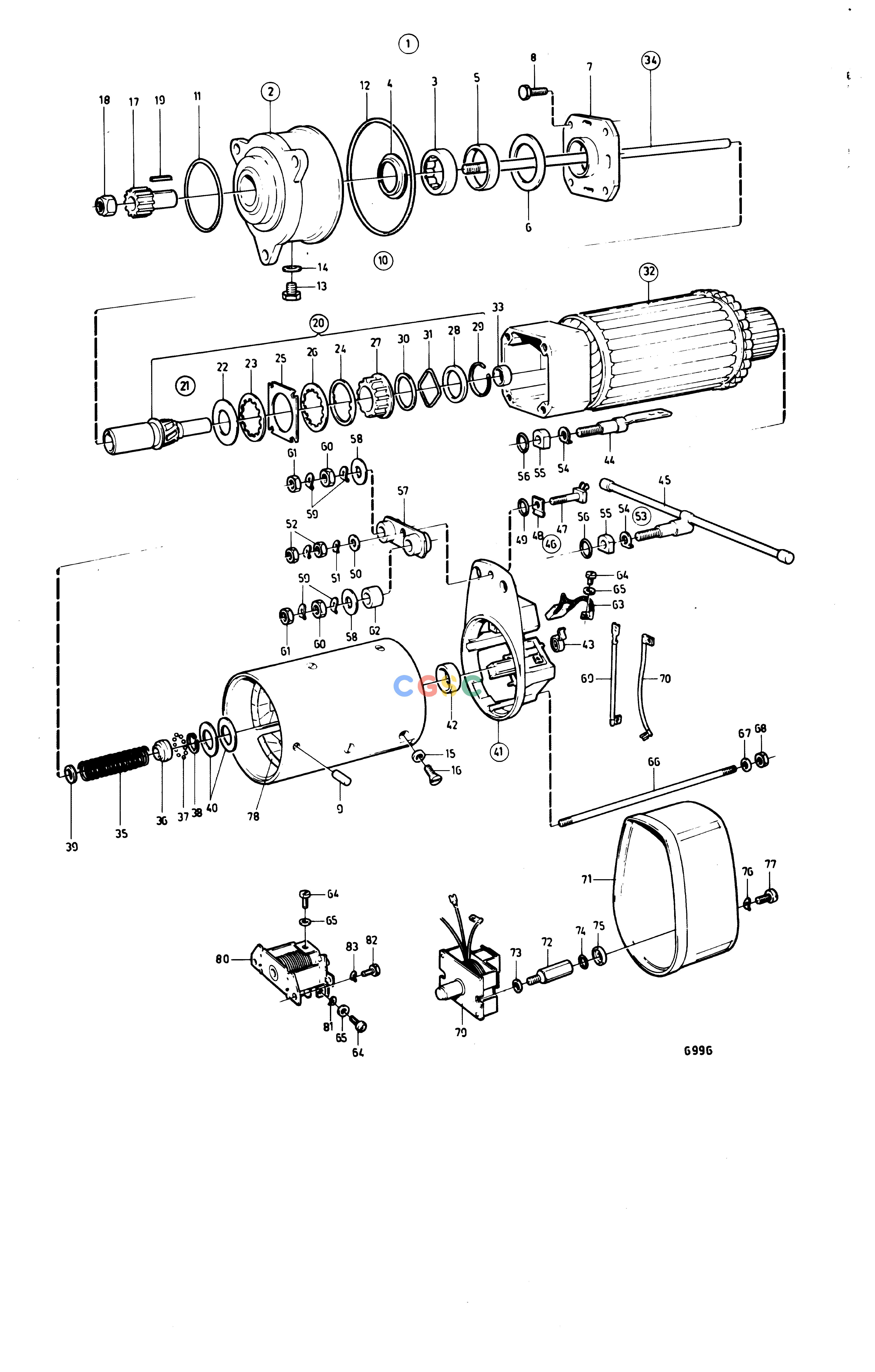

沃尔沃零件查询TAMD60CElectrical SystemStarterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
934 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
847307
|
[1] |
Starter motor
|
24V
|
| 2. |
240449
|
[1] |
Bearing shield
|
|
| 3. |
240453
|
[1] |
Needle bearing
|
|
| |
240450
|
[1] |
Sealing ring
|
|
| 5. |
240455
|
[1] |
Bearing bushing
|
|
| 6. |
240457
|
[1] |
Spacer washer
|
|
| 7. |
240456
|
[1] |
Bearing shield
|
|
| 8. |
848095
|
[4] |
Screw
|
|
| 10. |
273517
|
[1] |
Small parts kit
|
|
| 11. |
|
|
|
|
| 13. |
|
|
|
|
| |
847984
|
[8] |
Hex. socket sunk scr
|
|
| |
6643675
|
[1] |
Starter pinion
|
|
| 18. |
1696396
|
[1] |
Nut
|
|
| |
240473
|
[1] |
Key
|
|
| 20. |
244539
|
[1] |
Disc clutch
|
|
| |
6644414
|
[1] |
Small parts kit
|
|
| 24. |
|
|
|
|
| 25. |
|
|
|
|
| 30. |
|
|
|
|
| 32. |
6212614
|
[1] |
Anchor
|
|
| 33. |
243091
|
[1] |
Needle bearing
|
|
| 34. |
6643680
|
[1] |
Rotor shaft
|
|
| |
6212617
|
[1] |
Compression spring
|
|
| |
6212622
|
[1] |
Stop ring
|
|
| |
844412
|
[11] |
Ball
|
|
| |
240471
|
[1] |
Lock ring
|
|
| |
844410
|
[1] |
Washer
|
|
| |
241904
|
[1] |
Shim
|
TH=0.20mm
|
| |
240486
|
[1] |
Shim
|
TH=0.30mm
|
| |
240487
|
[1] |
Shim
|
TH=0.50mm
|
| 41. |
844408
|
[1] |
Armature bearing
|
|
| 42. |
240481
|
[1] |
Bearing bushing
|
|
| 43. |
240478
|
[4] |
Brush spring
|
|
| 44. |
240479
|
[1] |
Terminal screw
|
|
| |
240480
|
[1] |
Electric cable
|
|
| |
6643672
|
[1] |
Small parts kit
|
|
| |
6212792
|
[2] |
Repair kit
|
|
| 54. |
|
|
|
|
| 55. |
|
|
|
|
| 56. |
|
|
|
|
| |
6212621
|
[1] |
Carbon brush set
|
|
| |
6643679
|
[4] |
Screw
|
|
| |
244218
|
[4] |
Screw
|
|
| |
941905
|
[8] |
Spring washer
|
|
| |
6643677
|
[1] |
Bolt
|
|
| |
6643678
|
[3] |
Bolt
|
|
| |
955892
|
[4] |
Washer
|
|
| |
955781
|
[4] |
Hexagon nut
|
|
| |
847987
|
[1] |
Cable
|
|
| 70. |
847988
|
[1] |
Cable
|
|
| 71. |
240496
|
[1] |
Protecting casing
|
|
| 72. |
243713
|
[2] |
Bolt
|
|
| 73. |
240498
|
[2] |
Washer
|
|
| 74. |
72202
|
[2] |
Gasket
|
|
| |
72201
|
[2] |
Washer
|
|
| |
941906
|
[2] |
Spring washer
|
|
| 77. |
956094
|
[2] |
Cross recessed screw
|
|
| |
6212612
|
[1] |
Field winding
|
|
| |
241898
|
[1] |
Starter solenoid
|
|
| 80. |
241897
|
[1] |
Actuator solenoid
|
|
| 81. |
940090
|
[3] |
Washer
|
|
| |
955294
|
[2] |
Hexagon screw
|
|
| 83. |
941907
|
[2] |
Spring washer
|
|
