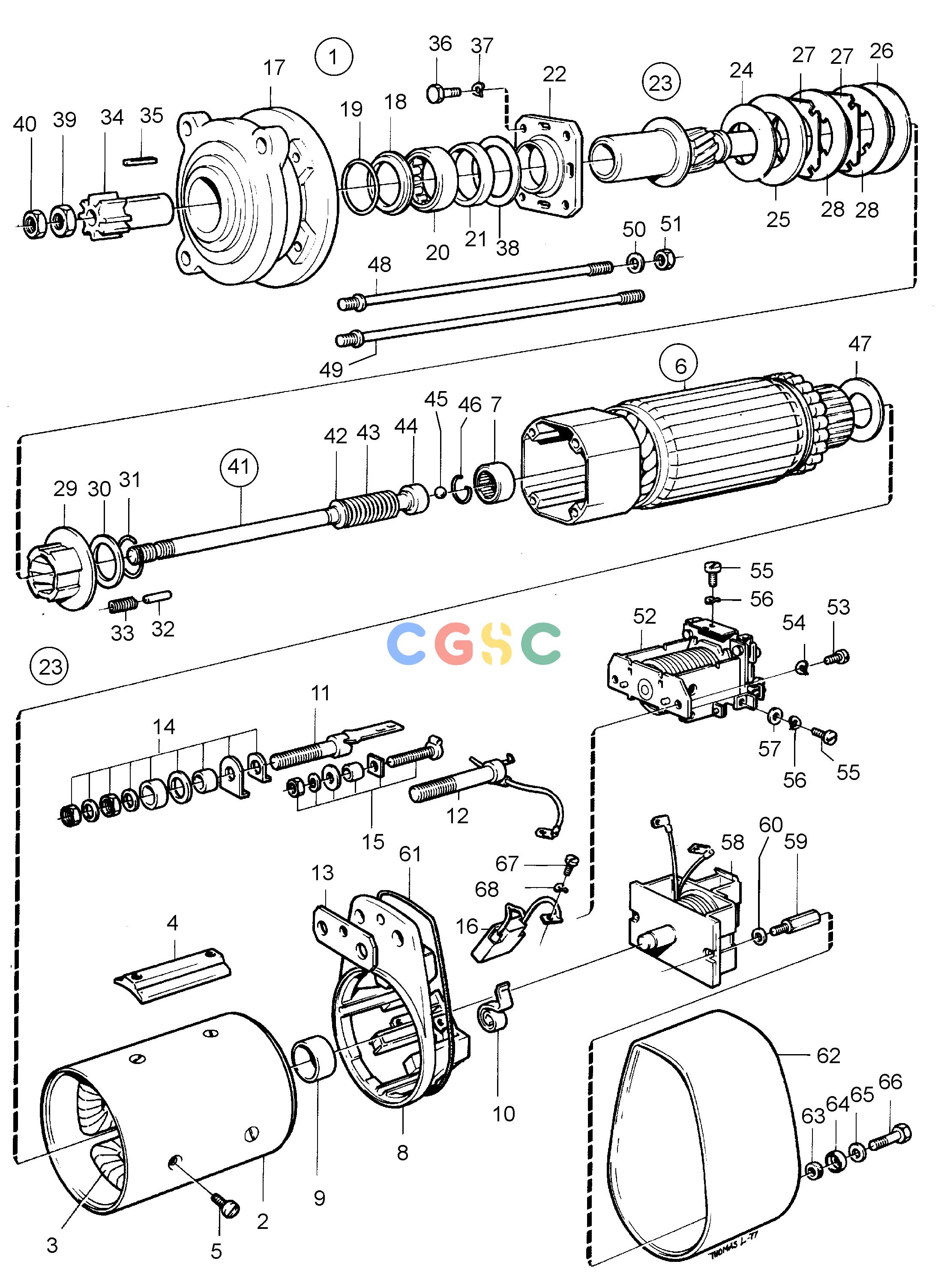

沃尔沃零件查询TAMD60CElectrical SystemStarter: 843510EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843510
|
[1] |
Starter motor
|
24V
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
6212612
|
[1] |
Field winding
|
|
| 5. |
956241
|
[8] |
Cross recessed screw
|
|
| 6. |
6212614
|
[1] |
Anchor
|
|
| 7. |
243091
|
[1] |
Needle bearing
|
|
| 8. |
844408
|
[1] |
Armature bearing
|
|
| 9. |
240481
|
[1] |
Bearing bushing
|
|
| 10. |
240478
|
[4] |
Brush spring
|
|
| 11. |
240479
|
[1] |
Terminal screw
|
|
| 12. |
240480
|
[1] |
Electric cable
|
|
| 13. |
243175
|
[1] |
Insulating plate
|
|
| 14. |
241149
|
[1] |
Connecting kit
|
|
| 15. |
6643672
|
[1] |
Small parts kit
|
|
| 16. |
243089
|
[1] |
Carbon brush set
|
|
| 17. |
240449
|
[1] |
Bearing shield
|
|
| 18. |
240450
|
[1] |
Sealing ring
|
|
| 19. |
240451
|
[1] |
Spring
|
|
| 20. |
240453
|
[1] |
Needle bearing
|
|
| 21. |
240455
|
[1] |
Bearing bushing
|
|
| 22. |
240456
|
[1] |
Bearing shield
|
|
| 23. |
244539
|
[1] |
Disc clutch
|
|
| 24. |
243782
|
[1] |
Washer
|
|
| 25. |
6643674
|
[1] |
Disc
|
|
| 26. |
244365
|
[1] |
Adjusting washer
|
TH=0.35mm
|
| 26. |
244366
|
[1] |
Adjusting washer
|
TH=0.40mm
|
| 26. |
244367
|
[1] |
Adjusting washer
|
TH=0.45mm
|
| 26. |
244368
|
[1] |
Adjusting washer
|
TH=0.50mm
|
| 26. |
244369
|
[1] |
Adjusting washer
|
TH=0.55mm
|
| 26. |
244370
|
[1] |
Adjusting washer
|
TH=0.60mm
|
| 26. |
244371
|
[1] |
Adjusting washer
|
TH=0.65mm
|
| 27. |
243780
|
[5] |
Disc
|
|
| 28. |
|
|
|
|
| 29. |
243778
|
[1] |
Clutch half
|
|
| 30. |
243179
|
[1] |
Stop ring
|
|
| 31. |
241908
|
[1] |
Lock ring
|
|
| 32. |
243791
|
[4] |
Pin
|
|
| 33. |
243790
|
[4] |
Spring
|
|
| 34. |
6643675
|
[1] |
Starter pinion
|
|
| 35. |
240473
|
[1] |
Key
|
|
| 36. |
848095
|
[4] |
Screw
|
|
| 37. |
941905
|
[4] |
Spring washer
|
|
| 38. |
240457
|
[1] |
Spacer washer
|
|
| 39. |
955791
|
[1] |
Hexagon nut
|
|
| 40. |
6643682
|
[1] |
Nut
|
|
| 41. |
6643680
|
[1] |
Rotor shaft
|
|
| 42. |
844410
|
[1] |
Washer
|
|
| 43. |
240470
|
[1] |
Spring
|
|
| 44. |
844411
|
[1] |
Washer
|
|
| 45. |
184453
|
[1] |
Ball
|
|
| 46. |
240471
|
[1] |
Lock ring
|
|
| 47. |
241904
|
[1] |
Shim
|
TH=0.2mm
|
| 47. |
240486
|
[1] |
Shim
|
TH=0.3mm
|
| 47. |
240487
|
[1] |
Shim
|
TH=0.5mm
|
| 48. |
6643677
|
[1] |
Bolt
|
|
| 49. |
6643678
|
[3] |
Bolt
|
|
| 50. |
955892
|
[4] |
Washer
|
|
| 51. |
955781
|
[4] |
Hexagon nut
|
|
| 52. |
241897
|
[1] |
Actuator solenoid
|
|
| 53. |
955294
|
[2] |
Hexagon screw
|
|
| 54. |
941907
|
[2] |
Spring washer
|
|
| 55. |
244218
|
[6] |
Screw
|
|
| 56. |
941905
|
[6] |
Spring washer
|
|
| 57. |
906822
|
[3] |
Washer
|
|
| 58. |
844415
|
[1] |
Relay
|
|
| 59. |
243713
|
[2] |
Bolt
|
|
| 60. |
240498
|
[2] |
Washer
|
|
| 61. |
72225
|
[1] |
O-ring
|
|
| 62. |
240496
|
[1] |
Protecting casing
|
|
| 63. |
72202
|
[2] |
Gasket
|
|
| 64. |
72201
|
[2] |
Washer
|
|
| 65. |
941906
|
[2] |
Spring washer
|
|
| 66. |
956094
|
[2] |
Cross recessed screw
|
|
| 67. |
6643679
|
[2] |
Screw
|
|
| 68. |
941905
|
[2] |
Spring washer
|
|
