沃尔沃零件查询TAMD60CEngineCrankshaft and Related PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
329 次

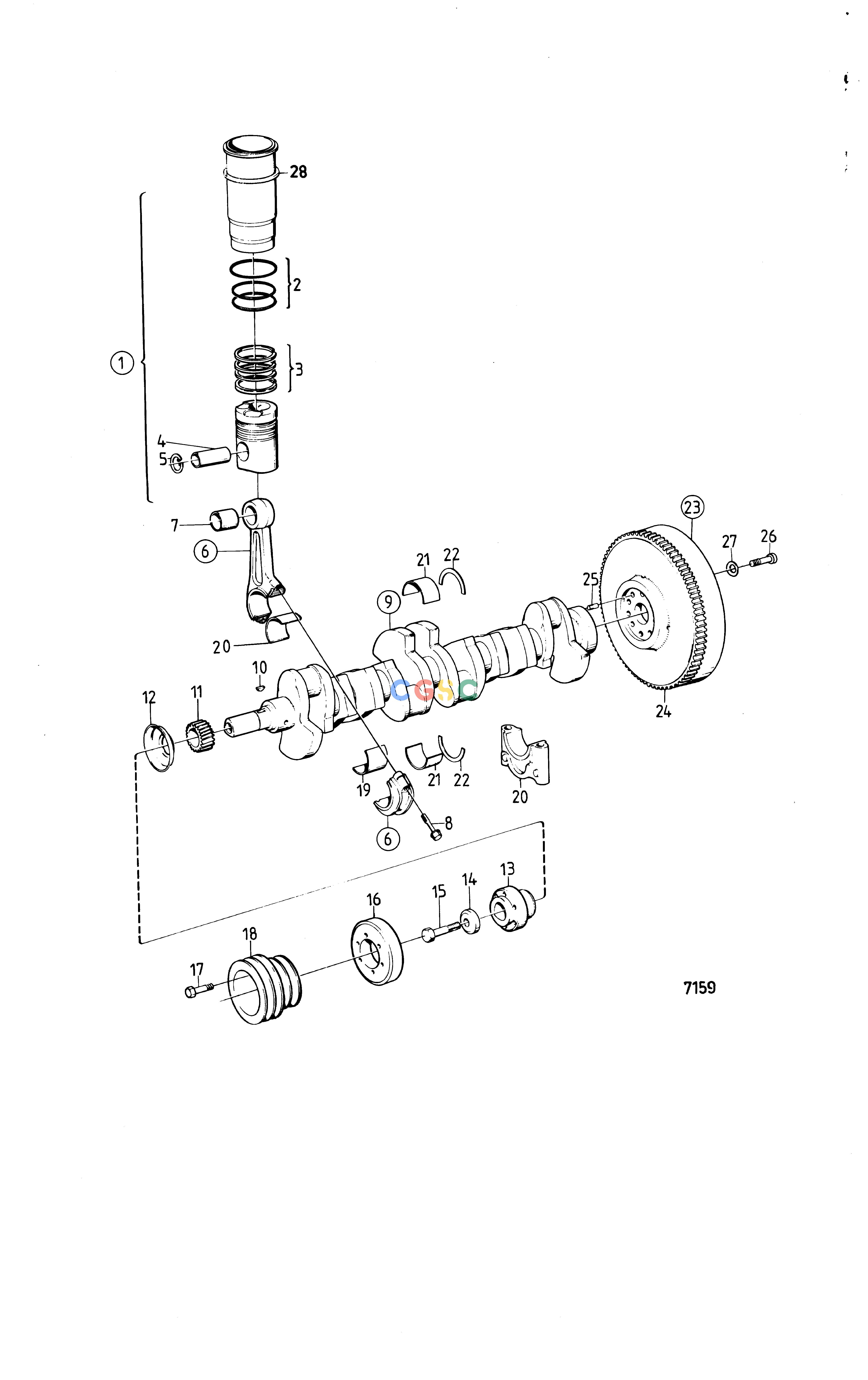

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
275066
|
[6] |
Cylinder liner kit
|
|
| 2. |
275736
|
[6] |
Sealing ring kit
|
|
| 3. |
275320
|
[6] |
Piston ring kit
|
|
| 4. |
420258
|
[6] |
Gudgeon pin
|
Std D
|
| 4. |
420259
|
[6] |
Pin
|
0,05mm o.s
|
| 4. |
420261
|
[6] |
Gudgeon pin
|
0,20mm o.s
|
| 5. |
914523
|
[12] |
Snap ring
|
|
| 6. |
420520
|
[6] |
Connecting rod
|
|
| 7. |
465816
|
[6] |
Bearing
|
|
| 8. |
420126
|
[12] |
Hexagon screw
|
|
| 9. |
465755
|
[1] |
Crankshaft
|
|
| 10. |
422253
|
[1] |
Woodruff key
|
|
| 11. |
421080
|
[1] |
Crankshaft gear
|
|
| 12. |
420172
|
[1] |
Oil deflector
|
|
| 13. |
421400
|
[1] |
Hub
|
|
| 14. |
420124
|
[1] |
Washer
|
|
| 15. |
417464
|
[1] |
Screw
|
|
| 16. |
421414
|
[1] |
Vibration damper
|
|
| 17. |
955551
|
[4] |
Hexagon screw
|
|
| 18. |
842258
|
[1] |
Pulley
|
|
| 19. |
270081
|
[6] |
Big-end bearing kit
|
Std D
|
| 19. |
270082
|
[6] |
Big-end bearing kit
|
0,25mm u.s
|
| 19. |
270083
|
[6] |
Big-end bearing kit
|
0,50mm u.s
|
| 19. |
270084
|
[6] |
Big-end bearing kit
|
0,75mm u.s
|
| 19. |
270085
|
[6] |
Big-end bearing kit
|
1,00mm u.s
|
| 20. |
7743230_002
|
|
bearing cap
|
|
| 21. |
271230
|
[7] |
Main bearing kit
|
Std D
|
| 21. |
271231
|
[7] |
Main bearing kit
|
0,25mm u.s
|
| 21. |
271232
|
[7] |
Main bearing kit
|
0,50mm u.s
|
| 21. |
271233
|
[7] |
Main bearing kit
|
0,75mm u.s
|
| 21. |
271234
|
[7] |
Main bearing kit
|
1,00mm u.s
|
| 21. |
271235
|
[7] |
Main bearing kit
|
1,25mm u.s
|
| 22. |
276751
|
[1] |
Thrust washer kit
|
Std D
|
| 22. |
276752
|
[1] |
Thrust washer kit
|
0,1mm o.s
|
| 22. |
276753
|
[1] |
Thrust washer kit
|
0,2mm o.s
|
| 22. |
276780
|
[1] |
Thrust washer kit
|
0,3mm o.s
|
| 23. |
848350
|
[1] |
Flywheel
|
|
| 24. |
420067
|
[1] |
Gear ring
|
|
| 25. |
950677
|
[1] |
Pin
|
|
| 26. |
944710
|
[6] |
Hexagon screw
|
|
| 27. |
467773
|
[6] |
Washer
|
|
| 28. |
465394
|
[1] |
Adjusting washer
|
TH=0.20mm
|
| 28. |
465395
|
[1] |
Adjusting washer
|
TH=0.30mm
|
| 28. |
465396
|
[1] |
Adjusting washer
|
TH=0.50mm
|
