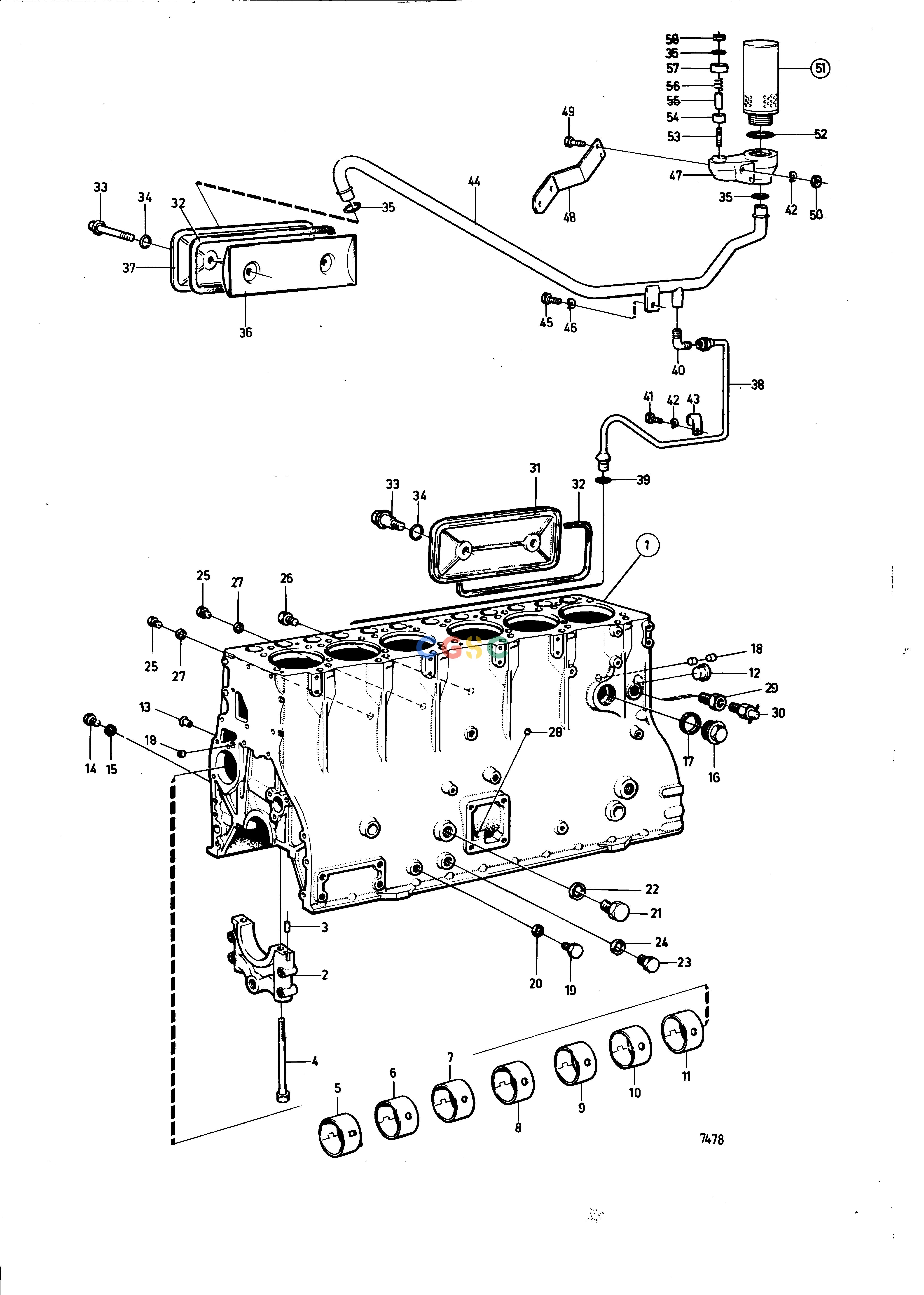

沃尔沃零件查询TAMD60CEngineCylinder BlockEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
330 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
465720
|
[1] |
Cylinder block
|
Spare parts production
|
| 1. |
3801051
|
[1] |
Short block
|
Spare parts production
|
| 2. |
|
|
|
|
| 3. |
422426
|
[1] |
Pivot pin
|
|
| 4. |
421153
|
[14] |
Flange screw
|
|
| 5. |
422076
|
[1] |
Bushing
|
|
| 6. |
422077
|
[1] |
Bushing
|
|
| 7. |
422078
|
[1] |
Bushing
|
|
| 8. |
422079
|
[1] |
Bushing
|
|
| 9. |
422080
|
[1] |
Bushing
|
|
| 10. |
422081
|
[1] |
Bushing
|
|
| 11. |
422082
|
[1] |
Bushing
|
|
| 12. |
192211
|
[1] |
Expansion plug
|
|
| 13. |
422369
|
[7] |
Plug
|
|
| 14. |
948187
|
[1] |
Plug
|
|
| 15. |
18818
|
[1] |
Gasket
|
|
| 16. |
825815
|
[1] |
Plug
|
|
| 17. |
469328
|
[1] |
Gasket
|
|
| 18. |
955082
|
[3] |
Cap plug
|
|
| 19. |
191025
|
[1] |
Plug
|
|
| 20. |
18671
|
[1] |
Gasket
|
|
| 21. |
192114
|
[1] |
Plug
|
|
| 22. |
18677
|
[1] |
Gasket
|
|
| 23. |
948187
|
[1] |
Plug
|
|
| 24. |
18818
|
[1] |
Gasket
|
|
| 25. |
16318
|
[3] |
Plug
|
|
| 26. |
952077
|
[1] |
Plug
|
|
| 27. |
907132
|
[3] |
Gasket
|
|
| 28. |
955082
|
[1] |
Cap plug
|
|
| 29. |
190130
|
[1] |
Reduction nipple
|
|
| 30. |
947893
|
[1] |
Shut-off cock
|
|
| 31. |
420120
|
[1] |
Inspection cover
|
|
| 32. |
421121
|
[2] |
Gasket
|
|
| 33. |
422541
|
[4] |
Shoulder screw
|
|
| 34. |
469846
|
[4] |
Sealing ring
|
|
| 35. |
421158
|
[3] |
Sealing ring
|
|
| 36. |
421120
|
[1] |
Splash plate
|
|
| 37. |
420121
|
[1] |
Inspection cover
|
|
| 38. |
843658
|
[1] |
Oil pipe
|
|
| 39. |
955983
|
[1] |
O-ring
|
|
| 40. |
954342
|
[1] |
Elbow nipple
|
|
| 41. |
955523
|
[1] |
Hexagon screw
|
|
| 42. |
941907
|
[3] |
Spring washer
|
|
| 43. |
18301
|
[1] |
Attaching clamp
|
|
| 44. |
843377
|
[1] |
Breather pipe
|
|
| 45. |
940133
|
[1] |
Hexagon screw
|
|
| 46. |
942336
|
[1] |
Spring washer
|
|
| 47. |
843356
|
[1] |
Connecting box
|
|
| 48. |
843378
|
[1] |
Bracket
|
|
| 49. |
955529
|
[2] |
Hexagon screw
|
|
| 50. |
955826
|
[2] |
Hexagon nut
|
|
| 51. |
876069
|
[1] |
Filter
|
|
| 52. |
843449
|
[1] |
Gasket
|
|
| 53. |
924058
|
[1] |
Stud
|
|
| 54. |
842972
|
[1] |
Valve disc
|
L=89mm
|
| 55. |
842974
|
[1] |
Spacer sleeve
|
L=76mm
|
| 56. |
843301
|
[1] |
Spring
|
|
| 57. |
842975
|
[1] |
Protecting casing
|
|
| 58. |
963105
|
[1] |
Lock nut
|
|
