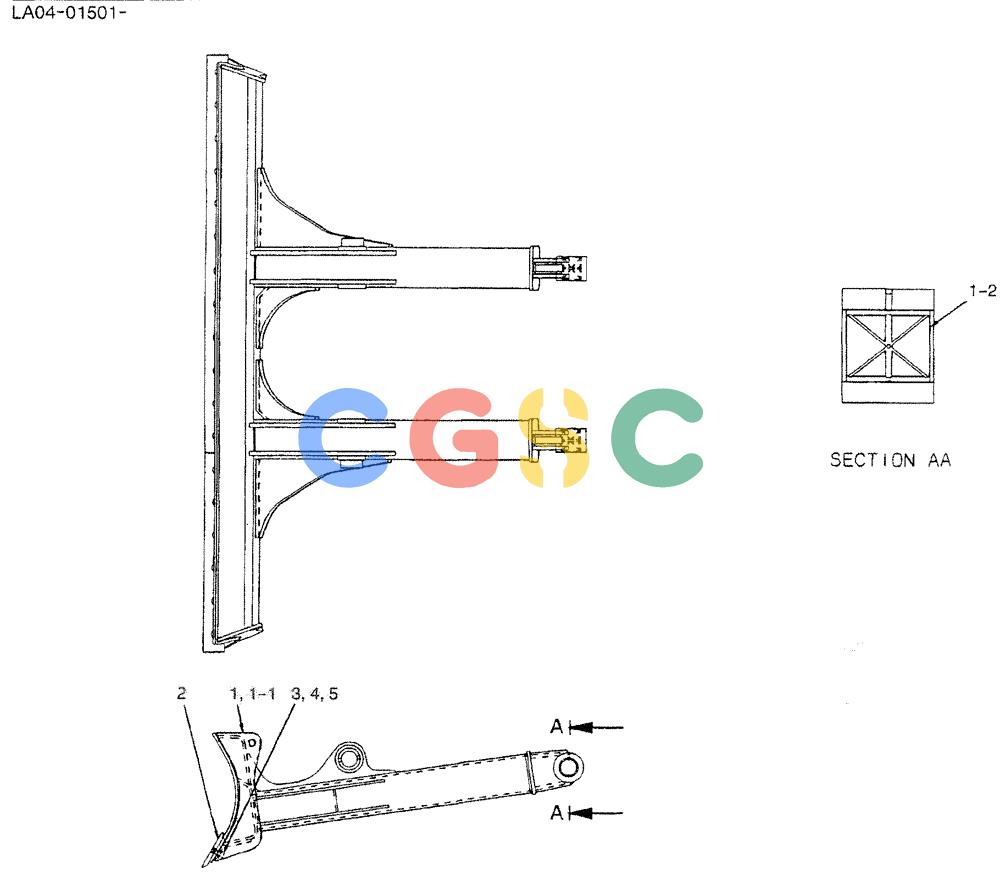

神钢零件查询(DOZER) - ATTACHMENT - SK200SR, SK200SR-1S, & SK200SRLC-1S (1/91-12/03) (02-007) - DOZER ASSY (FOR LONG CRAWLER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB51B00006F1 | [1] | DOZER BLADE | KOBDOZER ASSY |
| 1. | YB51B00007F1 | [1] | DOZER BLADE | KOBDOZER ASSY |
| 1-1. | YB51B00008P1 | [1] | DOZER BLADE | KOBDOZER |
| 1-2. | YN51B01008P1 | [2] | BUSHING | KOBBUSHING |
| 2. | YN69B01016P1 | [1] | CUTTING EDGE | KOBEDGE CUTTING |
| 3. | 2420P1480D2 | [18] | BOLT | KOB |
| 4. | 2420P1481D2 | [18] | NUT | KOB |
| 5. | ZW13H20000 | [18] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
