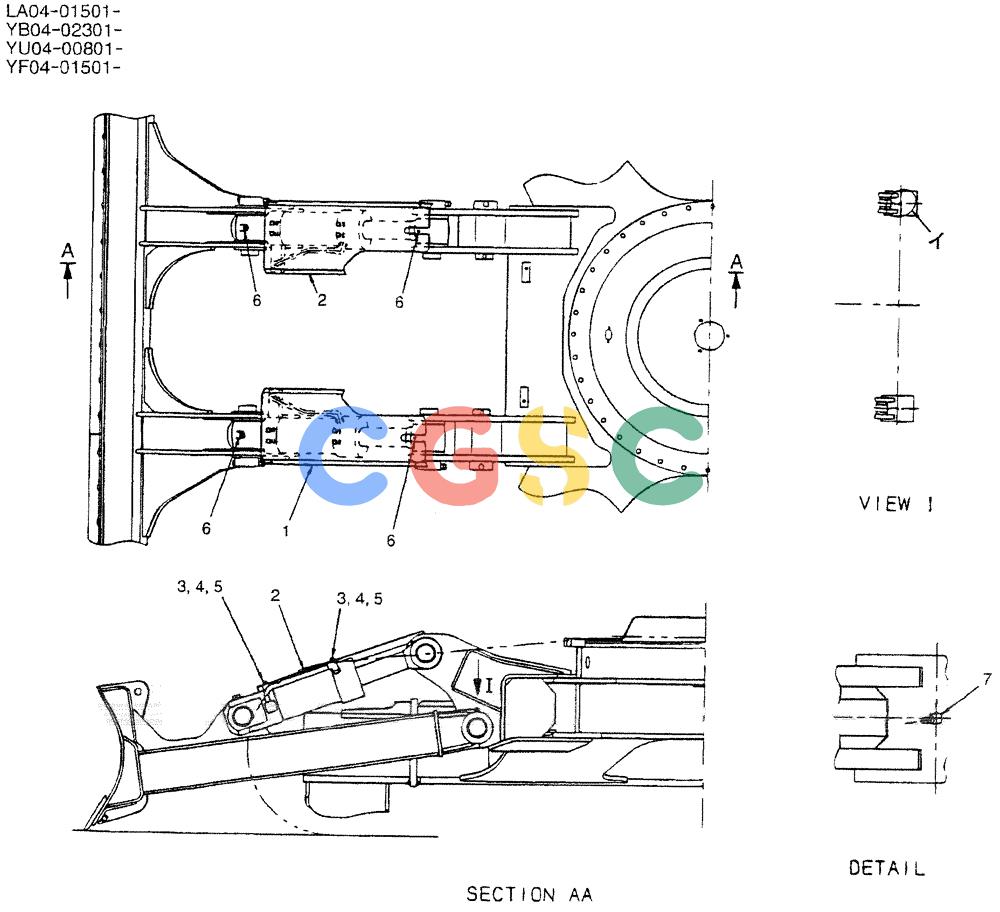

神钢零件查询(DOZER) - ATTACHMENT - SK200SR, SK200SR-1S, & SK200SRLC-1S (1/91-12/03) (02-008) - DOZER GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
399 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN51B00004F1 | [1] | DOZER GROUP | |
| 1. | YN51B01012P1 | [1] | COVER | KOBCOVER |
| 2. | YN51B01013P1 | [1] | COVER | KOBCOVER |
| 3. | ZS18C10016 | [8] | SCREW,Hex, M10 x 16mm | KOBM10x1.50x16mm |
| 4. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 5. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 6. | ZG91S02000 | [4] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 7. | ZG91V02000 | [2] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB67° x 1/8" PT Superseded by part number: 72283072 |
